Eizo ColorEdge CX 240 monitor review

  |   Articles and reviews, Colour management, Monitor calibration, Monitor reviews, Review   |   No comment

Eizo ColorEdge CX 240 monitor review

A high end 24.1″ (61 cm) LCD Monitor

Site update: Sorry for site slowness - the site has outgrown its hosting. Keith is working on this, but we are photographers not web developers!
...Get our Newsletter for new articles/reviews and why not subscribe to Keith's YouTube Channel
...Keith's book about how to use tilt/shift lenses is now available.
Our site contains affiliate links - these help support the site. See our Advertising policies for more

It’s been some time since Keith looked at monitors in any detail.

A conversation at the Eizo stand at this year’s Focus show, and the slight decline of Keith’s Apple Cinema display suggested that it was about time he looked at monitors for professional use.

eizo cx240

At Northlight, we don’t do colour critical proofing work, but we do a lot of editing work on our own images, and Keith does a lot of black and white print work, so a good reliable monitor is essential.

This particular test is with the CX 240 connected to Keith’s OS X 10.6 24GB Mac Pro, with an ATI Radeon HD 4870 display card.

The monitor was profiled and calibrated with Eizo’s ColorNavigator software.
Eizo CX 240 product info

A Monitor for you?

It’s been a while since I looked at monitors, graphics cards and their specifications, indeed many reviews and info I’ve come across seem to be aimed less at image quality than the gaming market, something I’ve no real interest in.

Eizo have a long reputation for building high quality monitors, adding in as they do, a lot of refinements in the areas of display uniformity, stability and accuracy.

The CX series includes built in hardware calibration that will ensure the ongoing accuracy of your display calibration (the higher end CG series has a built in device that is used for initial display profiling/calibration as well as ongoing monitoring)

The CX series is aimed at Pro level photographers (oh and that weird ‘Prosumer’ category too). The CX 240 I tested came with Eizo’s own ColorNavigator 6 profiling/calibration software (an optional extra with the CX series). I’ll cover some of the reasons you might choose this over the collection of profiling software I’d normally use later when I look at the software, but suffice to say, it can access parts of the monitor that others can’t.

What do you get

The monitor comes well packed, with a simple setup guide, power, DVI and HDMI cables, and a much appreciated DisplayPort cable (mini) which made it easy to connect to both my MacBook Pro and Mac Pro.

cx 240 i/o connections

The display port connection makes it possible for the display to use 10 bit video (if your display card supports it).

The monitor works well on the desktop, and is widely adjustable.

range of monitor physical adjustment

Even without calibration, the display looked great, but not surprising since Eizo monitors are known for their calibration at the factory before shipping.

Simple on-screen controls allow for calibrated display, or setting to basic Adobe98 or sRGB modes.

Here’s the CX 240 set at 6500K (nominally the same as the laptop)

Whilst it’s not possible to show differences here (on your monitor – unknown to me), the colours on the main monitor were noticeably more intense and refined (the image is in the Adobe 98 colour space)

monitor and laptop at 6500K

Our CX 240 shipped with ColorNavigator software – this is apparently not supplied by default and is an extra expense that you should note (and consider) since it offers functionality beyond normal calibration software.

I’ll show some photos of the monitor connected to my MacBook Pro, not because I regularly used it with the monitor, but my main office (where I’m writing this on the CX 240) is nowhere near as uncluttered…

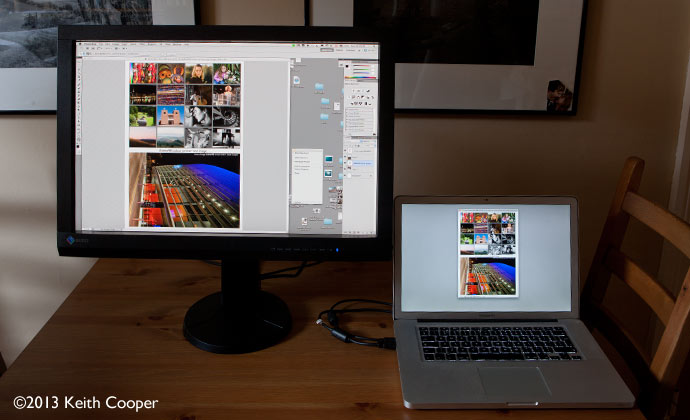

Setting the monitor to 5500K (suggested for ‘photography’) makes the difference much more obvious.

monitor set at 5500K

I’ve used 6500K for years, and have no problem with it for my work. Indeed, as you lower the colour temperature the contrast range of the monitor drops. With monitors such as my Apple one, this becomes less than I’d like, and the linearity of the monitor (greyscales for example) doesn’t look so good.

If I was to use the CX 240 all the time I’d probably shift to 5500K (5000K is just too yellow). I have a viewing cabinet that is around 5000K, but careful use and positioning has meant I’m just fine with my monitor at a higher colour temperature (see my review of the GTI PDV 3e for more).

If my ‘casual disregard’ for matching colour temperatures causes you some trouble, then take that as a sign that you are definitely in the market for a CX 240, or even a monitor from the CG range. Remember that I don’t do proofing or colour critical work here.

Using ColorNavigator

I tested profiling of the monitor with both the Datacolor Spyder4Elite and i1Display Pro. As I expected, both produced perfectly good profiles, but if I was going to buy a monitor like the CX 240, I’d really want to get the best out of it.

Adjustments carried out by profiling software for most monitors are relatively basic, some parts are still done with adjustments of your graphics card. The ColorNavigator software tweaks internal aspect of the monitor that other software can’t reach, indeed, without setting up with ColorNavigator, the automatic monitor validation won’t take place.

I installed the software from a link supplied on a CD, along with a license code.

installing monitor software

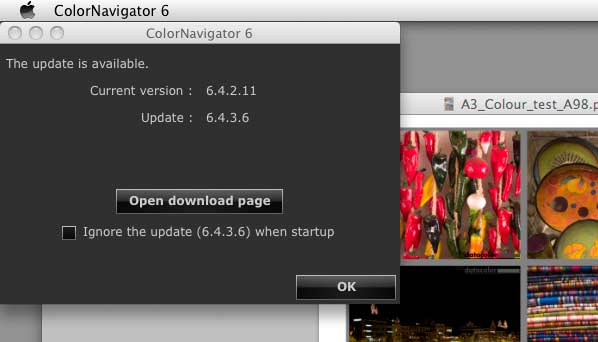

The software can check for updates (why not in the install process?)

online updates for software

The main screen allows you to create your own settings groups (targets) – there is help available (PDF manual) which is well worth reading through.

colornavigator software- mai screen

I’ll not go into all the intricacies of what you can do with the software, just a basic profiling setup.

It’s possible, for example, to configure 3D lookup tables for film emulation when grading video – I’d be lying if I said I had even a working knowledge of what this involves, I don’t do video work…

software options

The software can work with a lot of devices, but didn’t like the X-rite software left on my laptop from a previous test.

software conflict

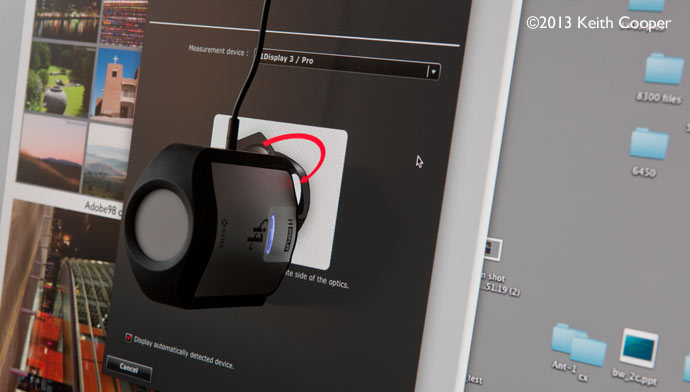

The i1Display Pro – ready for measurement.

using i1display pro

As with all profiling packages, the screen displays a series of colour patches to measure.

colour patches for monitor calibration

I tried an i1 Pro 2 spectrophotometer.

The i1Pro 2 is better at low light levels than the old version and fine for a monitor like this that can achieve very good dark colours and blacks (often an area of concern with cheaper displays)

selecting spectrophotometer mode

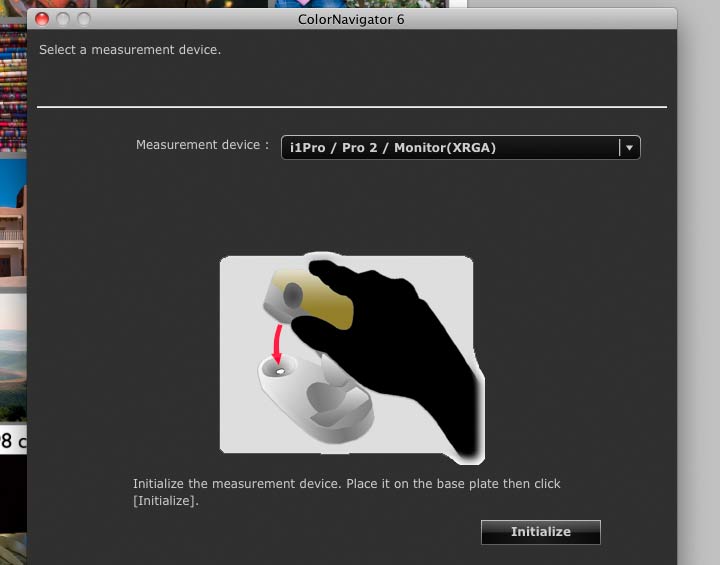

The spectro needs calibration before use.

calibrate i1 pro 2

The Pro and Pro 2 are held different ways against the screen.

position device on screen

The i1Pro 2 in place – note too the general lack of reflection from the screen (that’s a bright window off to the left).

measurment setup with i1 pro 2

Measurement – 32 patches in basic mode

measuring screen for calibration

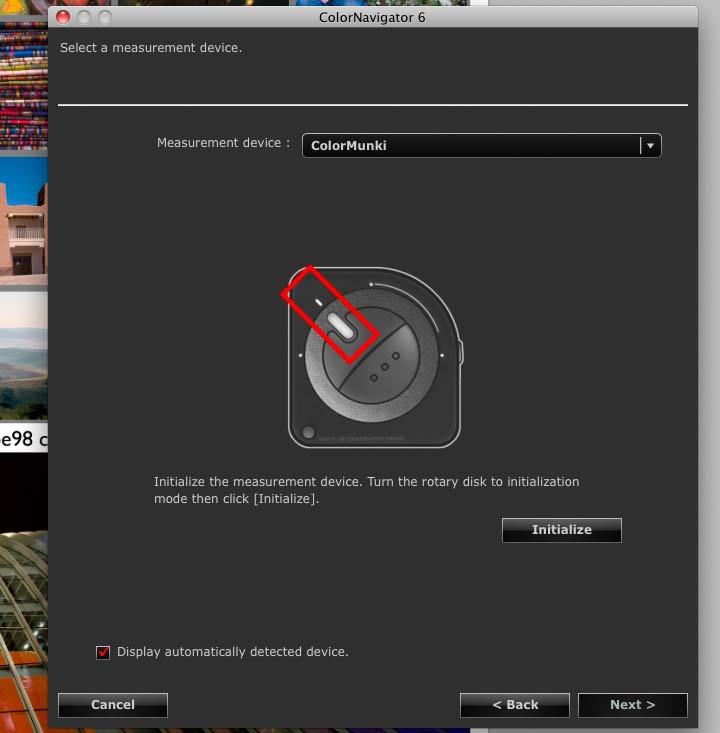

Even my old ColorMunki is supported.

using x-rite colormunki

Here it is, in its case (do remember to open the aperture slider in the case).

setup for colormunki

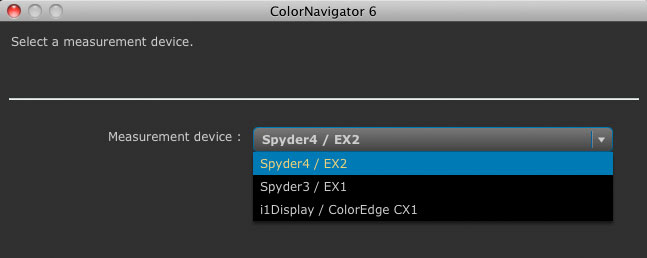

To check further I plugged in a Spyder 4Spyder 3 and my GMB i1 Display 2

wide range of measurement device support

In general I’d suggest going for current devices. LED backlighting and wide gamuts do not go so well with older colorimeters.

The measuring process only takes a few minutes.

Here’s the basic results (i1Pro 2) at 6500K.

results at 6500K

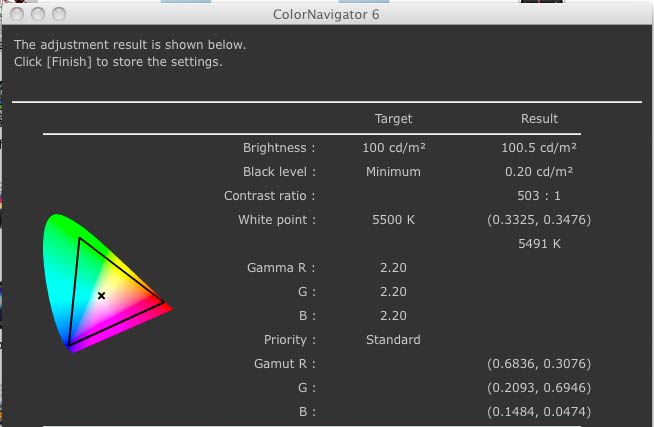

The results at 5500K

results at 5500K

A full report of measured patches is available.

measurement details

Data is recorded so it can be compared over time, showing any changes in the monitor (or your measuring device).

The built in measuring device will pop out at intervals to validate your calibration – it does this during calibration, to establish what it needs to measure against – move your mouse over the image to see it.

Original ImageHover Image


The monitor is firmly aimed at users wanting precision and reliability.

Going back through some old highly coloured images (flowers) I was intrigued to see some of the detail in strong colour areas, that I’d not seen before. It’s still worth noting that there are a few strong colours that I can print with our iPF8300 that are outside any monitor gamut, so whilst the large gamut of the CX240 is important, there are many other factors to look at too.

Buying the Eizo CX 240

We make a specific point of not selling hardware, but if you found the review of help please consider buying the CX 240, or any other items at all, via our link with Amazon.
Amazon UK link / Amazon Fr / Amazon De
Amazon USA link / Amazon Canada link

It won’t cost any more (nor less we’re afraid) but will contribute towards the running costs of our site.

Also available at: B&H and Adorama

The range of functions it will support with the ColorNavigator software, such as controlling viewing cabinets is impressive, although to really benefit from a monitor like this you need to pay attention to all aspects of your workflow and work environment.

In some markets the monitor is available both with and without the software. Given that the software is needed to get the best use of what’s not a cheap monitor, I wondered why you’d buy the monitor and not the software? In the UK market, I believe that the CX 240 is now only supplied with software. If you’re looking at buying lots of the monitors and want to write your own software, then best give Eizo a call…

The software is tied to a single monitor, so if it’s an extra where you are, then outfiting an office with several of these monitors, incurs a not insignificant extra charge and potential support issues.

The matte finish of the screen is very easy to use, and the display crisp, with no flare or ‘sparkle’. Whilst I didn’t measure it, the display uniformity looks impressive, particularly since the monitor includes features (DUE – digital uniformity equaliser) to maintain this as the monitor ages (something very obvious when I see some older monitors in design offices).

The on screen display is easy to use, with the buttons and power light (a dim blue that you can dim/extinguish) not distracting in any way.

The range of physical adjustment was more than adequate for my needs. I work in a fairly dark environment, so the optional viewing hood was not something I’d use. The screen can rotate by 90 degrees if you are working on tall thin images…

The unit does contain fans, which if you’re in a very quiet environment might be distracting to some. They are quieter than the fans on my Mac Pro, but that isn’t sitting on my desk right in front of me. Remember though, that keeping the monitor cooled extends its life and consistency.

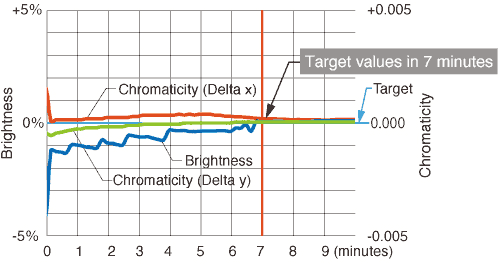

Normally I like to leave a monitor on for at least 30 minutes to stabilise, but the CX 240 is designed to bring this period down to seven minutes.

monitor stabilisation time

If you’ve not used a wide gamut monitor before, then the appearance of your computer desktop and some software may come as a surprise. If the software isn’t colour managed then that light blue folder on a ‘normal’ monitor may take on an intensity that you don’t want.

It depends on what sort of work you are doing, but I only spend part of my day editing photos.

If I’m working on the web, then a different setup (say 6500K and a reduced ‘sRGB gamut’ ) might be more appropriate and offer a more accurate indication of what others will see. Fortunately the ColorNavigator software can be set up for such custom uses, and takes care of switching monitor profiles for your system.

After using the monitor for a month or so, I can say that it’s not the wide gamut that makes the real difference (it of course helps) but the screen uniformity, ease of setup, linearity and accuracy, that I miss when returning to my old system.

It’s been interesting to try out the monitor for a while, and it’s certainly helped me appreciate what I need for our photography business.


High quality 16:10, 1,920 x 1,200 pixel display, with 10-bit IPS panel backlit by wide-gamut RGB LED backlighting.

ColorNavigator software can make use of a wide range of calibration devices.

In the UK, available fom Native Digital

Specifications – from Eizo
Model Variations CX240: Monitor only (ColorNavigator not included)
Cabinet Color Black
Type IPS
Size 24.1″ / 61 cm (611 mm diagonal)
Native Resolution DisplayPort, DVI: 1920 x 1200 (16:10 aspect ratio)
HDMI: 1920 x 1080 (16:9 aspect ratio)
Display Size (H x V) 518.4 x 324 mm
Pixel Pitch 0.270 x 0.270 mm
Grayscale Tones DisplayPort: 1024 tones (a palette of 65281 tones)
DVI, HDMI: 256 tones (a palette of 65281 tones)
Display Colors DisplayPort: 1.07 billion from a palette of 278 trillion
DVI, HDMI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 300 cd/m2
Recommended Brightness for Calibration 120 cd/m2 or less
Contrast Ratio (typical) 1000:1
Response Time (typical) 7.7 ms (Gray-to-gray)
Wide Gamut Coverage (typical) Adobe RGB: 97%
Video Signals
Input Terminals DVI-I 29 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP)
Digital Scanning Frequency (H / V) DisplayPort, DVI: 26 – 78 kHz, 23.75 – 63 Hz (VGA Text: 69 – 71 Hz)
HDMI: 15 – 68 kHz, 23.75 – 61 Hz
Analog Scanning Frequency (H / V) 26 – 78 kHz, 47.5 – 61 Hz
Function 2 ports for monitor control
2-port USB hub
Standard USB 2.0
Power Requirements AC 100 – 120 V / 200 – 240 V, 50 / 60 Hz
Maximum Power Consumption 98 W
Typical Power Consumption 38 W
Power Save Mode Less than 0.5 W
Standby Mode Less than 0.5 W
Power Management Power Save (VESA DPM, DisplayPort Version 1.1a, and DVI DMPM)
Self-Correction Yes
Features & Functions
Brightness Stabilization Yes
Preset Modes Color Mode (User1, User2, User3, Paper, Adobe RGB, sRGB, Calibration)
Digital Uniformity Equalizer Yes
Auto EcoView / BrightRegulator Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Screen Adjustment (Clock, Phase, Position, Resolution, Range (Auto)), Screen Size (full screen, enlarge, normal), Color Adjustment (Brightness, Contrast, Black Level, Independent 6-Color Control, Gamma, Temperature, Saturation, Hue, Gain, Enhancer, Reset), HDMI Settings (Noise Reduction), Range Extension, Signal Switching, OSD Menu Settings, Overdrive, Mode Preset, USB Selection, Signal Info, Monitor Info, DUE Priority, Key Lock, Signal Bandwidth, Power Indicator, All Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 575 x 417 – 545 x 245.5 mm
Dimensions (Portrait, W x H x D) 398 x 594.5 – 642.5 x 245.5 mm
Dimensions (Without Stand, W x H x D) 575 x 398 x 75 mm
Net Weight 9.9 kg / 21.6 lbs
Net Weight (Without Stand) 7.1 kg / 15.7 lbs
Height Adjustment Range 128 mm
Tilt 30° Up, 0° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Temperature 0 – 35 °C
Humidity (R.H., non condensing) 20 – 80 %
Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) CUDO certified mark, TCO Certified Displays 6.0, TUV/S, TUV/Ergonomics (including ISO 9241-307 [Pixel fault class I]), TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, Canadian ICES-003-B, RoHS, WEEE, GOST-R
Supplied Accessories AC power cord, signal cables (DVI-D – DVI-D, Mini DisplayPort – DisplayPort), USB cable, setup guide, EIZO LCD Utility Disk (PDF user’s manual), warranty card
Warranty Five Years 1 2

1 This monitor meets the ISO9241-307 (Pixel fault class I) standard.
2 With current LCD technology, a panel may contain a limited number of missing or flickering pixels

Original Press info for CX and CG monitors

CG SeriesThe CG series is carried over from the current ColorEdge lineup and will continue to be targeted at professionals in photography, prepress, video editing, post production, and other graphics fields requiring the most advanced monitors available. Common features include easy maintenance with a built-in SelfCalibration sensor, a wide color space, bundled calibration software and shading hood, and several preset modes for common broadcast standards. The new models are the 27-inch ColorEdge CG276 and 24.1-inch ColorEdge CG246.

CX Series

This new series is targeted at Mid-range series for professionals, prosumers and trade schools in photography and design. It comes with a new built-in SelfCorrection sensor that maintains the calibration results after the monitors have been calibrated by an external sensor. It covers most of the Adobe RGB color space. Calibration software and shading hood are available as options. The first models in this series are the ColorEdge CX270 (27″) and ColorEdge CX240 (24.1″).

The built-in SelfCalibration sensor of the CG series is carried over from past ColorEdge monitors. Housed within the front bezel, it swings out and calibrates according to a user-determined schedule. It can calibrate after hours when the computer it is connected to has been turned off.

The built-in SelfCorrection sensor of the CX series is also housed within the cabinet. With the optional EIZO ColorNavigator software, the sensor offers easy maintenance by adjusting the monitor to a calibration result previously obtained by using ColorNavigator and an external sensor.

With the CG and CX series, EIZO has added two technological innovations to improve image stability. The first is a reduction of more than 75% from 30 minutes to just seven minutes in the time it takes for the brightness and chromaticity to stabilize after the monitor is powered on. The other is EIZO’s DUE (digital uniformity equalizer) function which corrects uniformity errors in brightness like in previous ColorEdge monitors, but now also keeps the monitor’s color temperature and brightness stable in an environment with fluctuating ambient temperature changes such as an outdoor photo shoot.

All ColorEdge monitors come with one DVI-I, HDMI, and DisplayPort terminal each for connecting to different types of graphics boards. HDMI offers the additional benefit of direct connection with digital cameras. A USB hub with two upstream and two downstream ports are also included.

Additional Features

10-bit display1 (more than 1 billion colors simultaneously) via the DisplayPort input.

Ergonomic stand on all models with tilt, swivel, portrait mode, and height adjustment.

3D look-up table on all models for better additive color mixture and device emulation on CG series models.

I/P (interlace/progressive) conversion on CG and CX series models.

Mercury-free LED backlight with CG246, CX240

Five-year manufacturer’s limited warranty including the LCD panel for all models and a 12-month pixel defect warranty for the CG series2.
