Better black and white profiling with the ColorMunki

  |   Article, Articles and reviews, Black and white, Colour management, Printing, X-Rite   |   No comment

Better black and white printing with the ColorMunki

Creating QTR icc profiles for better black and white prints

Site update: Sorry for site slowness - the site has outgrown its hosting. Keith is working on this, but we are photographers not web developers!
...Get our Newsletter for new articles/reviews and why not subscribe to Keith's YouTube Channel
...Keith's book about how to use tilt/shift lenses is now available.
Our site contains affiliate links - these help support the site. See our Advertising policies for more

The ColorMunki from X-Rite allows you to build icc printer profiles with its basic software, but not for specialist black and white printing.

This article covers both specialised monochrome ink sets and using ordinary colour inks with a variety of paper types.

A4 colormunki BW test image

April 2017 – software is at V1.2.3 [x-rite]
May 2015 – this is quite an old article – whilst the procedures for creating the correction profiles are still relevant, do check newer articles, such as this one for note on using the profiles.
June 2011 Software is at V1.1.1
July 2009 ColorMunki software update – update to V1.1 adds improved monitor calibration capabilities and other improvements.

How to get better black and white printing using the ColorMunki and the excellent shareware QuadToneRIP….

Improving B/W printing

See our initial ColorMunki review for more information about basic ColorMunki functionality.

A possible use would be to get better linearity when using third party papers with a printer that supports a specific black and white printing mode (such as the Epson ABW example below)

Using the ColorMunki and QuadToneRIP for better black and white

Note that QuadToneRIP (QTR) is a shareware package – well worth the $50.

It is regularly updated and runs on Windows and Mac OSX.

It is actually a complete B/W print system that gives very good quality B/W prints from a number of colour printers with OEM (manufacturers) colour ink sets and also supports custom black and white ink sets.

I’ve tried it in the past with replacement inks and although they may take a bit of experimenting, the results can be very impressive too.

A revised black and white test print

I’ve covered building and using QuadToneRIP icc profiles in several different articles (see the links at the bottom of the article for all the references) but the ColorMunki has slightly different requirements in terms of reading in test patches.

In particular, it works best with bigger patches to measure

If you are new to the ColorMunki, I’ve a review covering many of its features.

I’ve created a different version of my standard B/W print test image for use with the ColorMunki.

Most of the features of the image are there for particular reasons – I’ve got an article explaining what they are and how to use it. You can download a zipped JPEG of the file in A4 size (I’ve also got a slightly different shaped US Letter version)

black and white test print for use with colormunki

Note the chevron shaped patches along the bottom of the image – this is for the ColorMunki to measure.

The QTR software contains sample images that you use with the Eye-One spectrophotometer. Whilst you can measure these a patch at a time with a ColorMunki, it’s actually more accurate to scan the strip.

I did some experiments with scanning using the ColorMunki and found that the default order in the QTR software did not reliably work, hence my slight change to the patch order. I’ll comment more on this when I cover using the scanned data

If you are testing lots of print/media settings I’ve got a single striped image that will comfortably print several times on a sheet of paper. (Strip image download)

colormunki black and white grayscale test strip

Single 21 step test strip.

Printing the files

These two files are in the grey Gamma 2.2 colour space.

I use Epson’s ABW printing mode for quite a bit of my B/W printing and I believe that the ABW mode currently ‘expects’ print data to be in a space of Gamma 2.2 (this includes Adobe98 if you were sending a colour image to the printer driver, to print in B/W)

So, in Photoshop, you’d still print either image with ‘no colour management’ setting and with whatever ABW settings you were using.

Remember that the QTR profiles are for B/W printing, not for files with any colour in them.

Things get a little more complex if you are trying to correct black and white output printed using normal colour printing.

Here you may already have a profile for the paper.

However, trying to correct B/W linearity is potentially a poor alternative to getting a better ICC profile made.

If you were printing to a printer in its normal colour printing mode, then you’d print to the driver using your normal way of printing, that is, printing with an ICC colour profile.

The difficulty comes in using the new QTR profile you have. I recently faced this problem with a third party paper used in an HP z3200 where I’d already created an ICC profile for the paper with the built in profiling kit.

One solution is:

Lets say our image to print is in the Grey Gamma 2.2 space. First Convert the correcting QTR profile (appearance does not change) then Assign to a Grey Gamma 2.2 profile to it (image changes), for printing.

The image is now adjusted to counteract the non linearity of the particular paper/ink/printer I’m using.

This is a bit of a kludge, but by doing the conversion as a Photoshop action I can produce a folder of files specifically for printing. Just make sure you identify the files some way, since if you print them on another printer they will be wrong.

Update 2020: Remember that the QTR profile is only being used as a way of adjustment here (like a curve) – It’s not possible to use it like a normal ICC profile in this use. See more about using the data in the version of the test image for use with SpyderPrint

Measuring the test print

I’m not using the ColorMunki Photo application here, but the Photo ColorPicker application.

I’ve launched this from the ‘Create a Color Palette’ option in my tray (note I’m doing this on a Mac, but PC use would be similar).

colormunki colorpicker

The application launches and detects my ColorMunki.

Before any measurements the ColorMunki must be calibrated by turning the central dial to the calibration setting.

calibrating the colormunki

Afterwards I turn the dial to point down and select ‘scanning mode’ for the measurements.

setting the reader to scanning mode

The test strip is scanned in the direction of the chevrons, as shown in the ColorMunki help animation below.

how to scan test strips with the colormunki

You can scan left to right or right to left as you feel fit.

Just remember to rotate the paper so that you start at the right end of the strip.

Because the 21 patches are slightly closer together than the standard ColorMunki test patch sheet, I scanned slightly slower than usual (3-4 seconds)

Make sure your measurements start and finish on plain paper.

set of greyscale reading made with the colormunki

A palette window will open containing your measurements.

Check carefully that there are 21 measurements. Any more or less means your scanning was faulty and you should delete the measurements and try again. To delete patches just select them all and hit delete.

For this quick test I’m using PermaJet Smooth Art Silk paper on an Epson 7880 with photo black (Pk) ink and ABW (advanced black and white) print mode. [See a past review of using textured and smooth versions of this paper].

Now I know in advance that this combination is unlikely to give the best results, since I normally use this very nice warm paper on my Epson 9600 with matt black (Mk) ink.

In fact, just looking at the measured patches above shows that the Pk Ink isn’t giving very black blacks. You can also see the warmth of the paper.

Next you export the measurement data as a comma separated (CSV) file. I’m going to alter this in MS Excel before using it, but any spreadsheet application can do this simple task.

Note the CSV option may not be available when doing this on a PC – see the Addendum below for how to get an XML file into Excel.

saving measurements from black and white test print

I’ve used a name that will hopefully remind me of some of the settings I was using (it’s best to write this down too).

Note added in correction – Oops, I used the wrong name for the data file above. For some reason I thought I was using Smooth Fine Art paper rather than Smooth Art Silk – probably because I had a roll of SFA on my desk at the time. I guess it shows the importance of keeping proper notes!

Making use of the Data

Note – this section shows currently how to make use of the data from the ColorMunki. Future upgrades of the QTR software should be able to directly support ColorMunki exported files.

The ColorMunki is a full UV Cut spectrophotometer, so the data file contains masses of measurements, including the suggested names for the patch colours.

The data is in the order that the patches were measured.

measurement format

I created a simple empty data file that needs just the LAB values for the measurements.

You can download it (it’s a simple csv test file)

I’ve added numbers describing the true (0% to 100%) order of the measurements and their values (percent black)

converting measurements of black and white test print

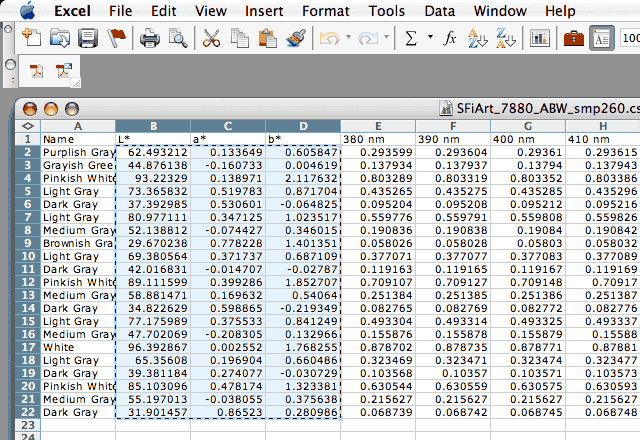

I only need the L, a and b columns of data from the exported file below.

I selected this and pasted it in my blank file

selection of colormunki measurement data

Save this new file (meaningful name again!)

Building a black and white ICC profile

The QuadToneRIP package comes with an ‘Eye One’ folder that contains the scripts for building black and white ICC profiles (and some notes that you should read)

I just dropped the data file on the script file and it ran, producing the output below. It handles the out of order data with no problem.

You can see that while the line of ‘L’s is fairly straight (showing pretty good linearity) the 100% point is just not that far over to the left.

The blackest black of this particular print setting, just isn’t very black on this paper (it’s most likely due to the Pk ink choice).

linearity output for better black and white prints

As you can see a linearising profile has been created. You need to put this into wherever your profiles live on your system.

Using your profile

I’ve opened up the test image again and gone to the Photoshop CS3 print dialogue.

Note that with the ‘match print colours’ box ticked, the profile is being used to give a simulation (or ‘soft proof’) of what the print will look like.

I don’t use soft proofing much for black and white but you can see the effects of the rather poor black in the screen shot below.

Whilst I use soft proofing sometimes with colour work, to get an idea of how a print will look, I rarely ever use it for B/W.
Since I’ve got two main printers (Epson 9600[Mk] and 7880[Pk]) I can produce a wide variety of B/W prints on different papers. My own preference is to print a known B/W test image on different papers and get to know how they look under a known consistent light source. Working from a calibrated/profiled screen I then have a much better ‘feel’ for how any particular image will look as a print. The image on the screen is (IMHO) only ever an intermediate stage in getting to the print I want – I find that placing too much concern of soft proofing and WYSIWYG means I’m not concentrating enough on the final print.

2015 – Do note that this is quite an old article – our 7880 and 9600 are long gone and software has moved on (although not a great deal in the ColorMunki’s case).

printing black and white with an icc profile

Note that although I’m going to print using the Epson ABW mode, I’m still applying colour management in Photoshop.

The profile will correct any slight non linearity that I’m getting from using from using a third party paper (see the links to other articles below for more on this)

photoshop black and white printing

Important Update 2015 – later versions of Photoshop seem to dislike using these profiles in this way with B&W print modes – see the QTR and ColorPort article for an alternate way of applying the profile to your printing if your print setup won’t allow for directly using the QTR profile with your chosen B&W print mode. I use this for my Canon iPF8300 printer and you can see it in the recent Epson SC-P800 review.

Remember that the job of this profile is -just- to correct non-linearity with printing.
I don’t use them at all for any soft-proofing – I’m actually of the opinion that the usefulness of soft proofing is frequently overplayed, and used as an excuse not to really get a feel for how printers perform with different papers ;-)

In the print dialogue, I’ve selected a particular paper media type to print.

For this example I made a fairly arbitrary choice, but if I was going to be using this paper in this printer a lot, I’d do comparison prints using all kinds of setting variations.

print setup for blackand white

Getting the right media settings at this stage makes a big difference – I’ve written an article about media settings choices, covering this sometimes neglected aspect of profiling.

windows data importAddendum – using data on Windows PCs

I’m told that the export function is different on the PC version of the ColorMunki software and that you can import the .CxF file into Excel 2007 (I still use Excel 2004 on the Mac so have not been able to test this)

Thanks to Marco Brambilla for sending me a screenshot of the import process and a sample Excel file for the import process.

You right-click on one of the title cells, then choose xml|import, then browse to the xml file you’ve exported.


Seems to work well – since the ColorMunki is still new I’d appreciate any comments from people trying it out.

Buying the ColorMunki

We make a specific point of not selling hardware, but if you found the review of help please consider buying the ColorMunki, or any other items at all, via our links with Amazon or B&H
Amazon Fr / Amazon De
Amazon USA link / Amazon Canada link

It won’t cost any more (nor less we’re afraid) but will contribute towards the running costs of our site. X-Rite ColorMunki ColorMunki Photo

In the QTR Eye One folder there are various test patch images you can use, including a 51 patch image and a set of four copies of the 21 patch image, for averaging readings.

Whilst they are useful when building your own QTR printer Ink Curves, I’ve always found them overkill for the kind of linearisation I’m looking at here. [Update – as printers have improved, I included a 51 step strip on the new version of the B&W test image – 21 will often suffice, and can sometimes give better results].

If the original curve is so uneven that 21 patches isn’t enough to sort it out, then change your print settings or change your paper or even ditch the printer.

I’ve come across too many people getting into colour management, that have tried to fix problems with repeated profiling that I’d have quickly given up on and moved to another paper or printer. The technique I’ve described is for fine tuning print output, not setting it up in the first place.

The ColorMunki is a useful package, but uses like this show that it can be used for more advanced work too.
