Canon PRO-300 setup

Printer setup and installation

Site Notice: Like many working photographers, our work has completely dried up in these challenging times, so I'll be at home a lot. The silver lining is that I've lots of articles and reviews to write - if you've any suggestions or questions, please do let me know - Keith ...Why not sign up for our (ad free) Newsletter to keep informed about new articles.


Using the Canon PRO-300 printer as well as the full specifications are covered in detail in Keith’s PRO-300 review

This article covers the initial setup and installation of the printer including network and space requirements.

setting up pro-300

PRO-300 setup

See the full PRO-300 review for more information about using the printer.

Unboxing

Don’t rip the plastic bag the printer is wrapped in.

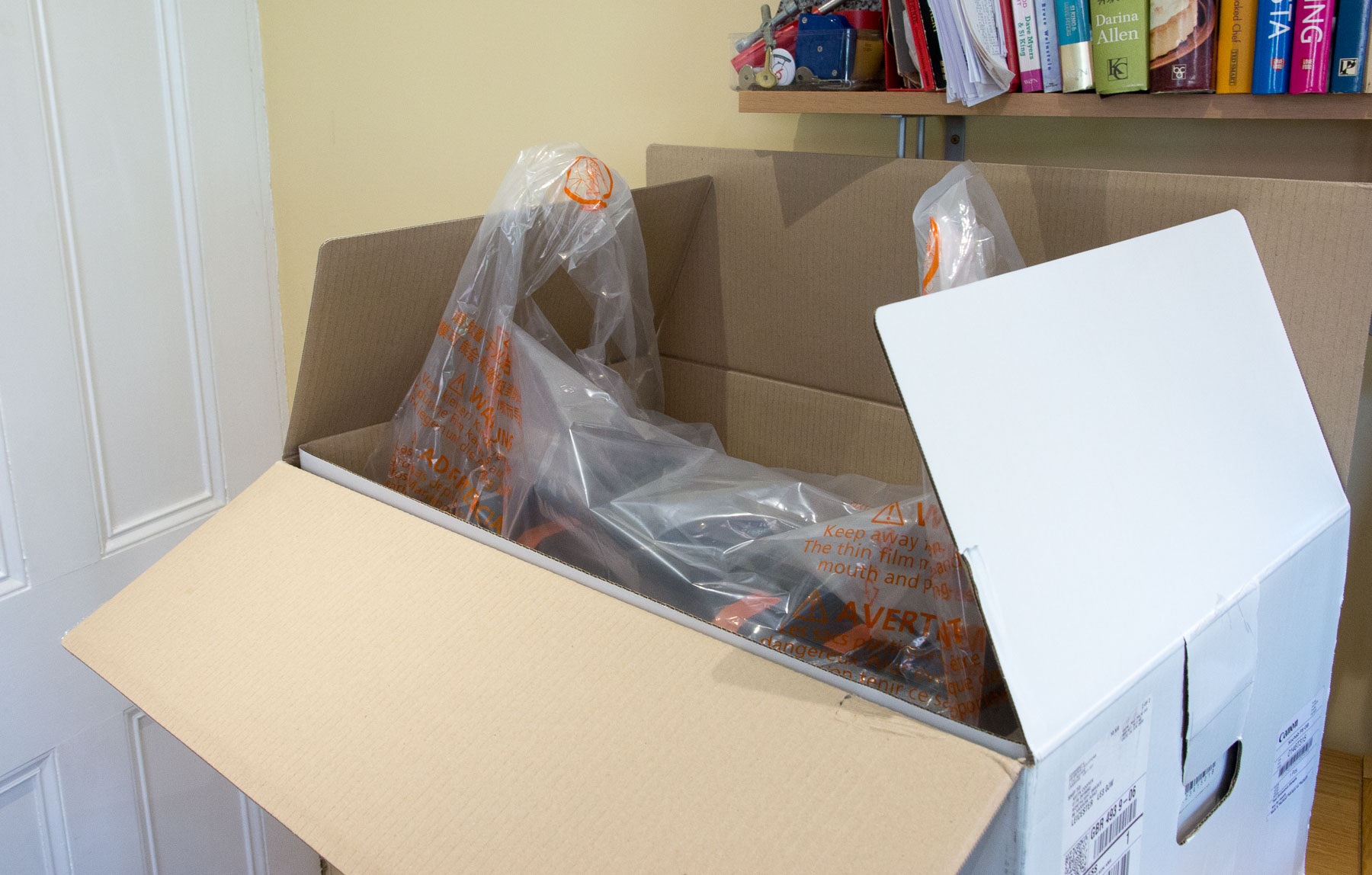

open box

It’s designed to lift the printer out of the box.

Yes, it is entirely strong enough with the ‘handles’.  The PRO-300 weighs just over 14kg (~31 lbs), a noticeable reduction from the ~20kg of the PRO-10S.

Note that at 639 x 379 x 200 mm it’s also slightly smaller than the older PRO-10/10S (689 x 385 x 215 mm)

plastic bag

The 10 ink cartridges will need fitting in due course.

10 ink carts

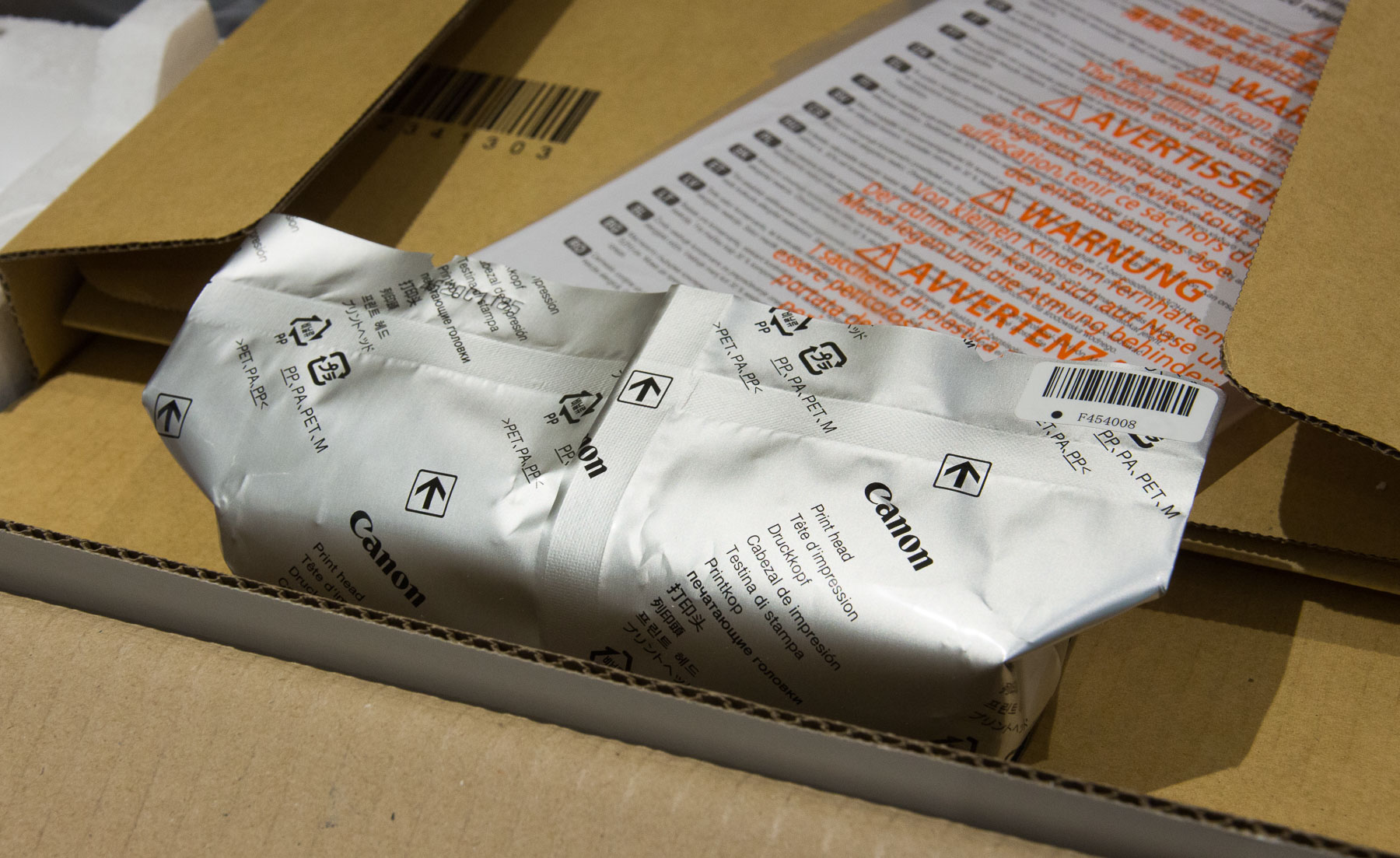

There’s also the print head assembly that will need fitting.

print head

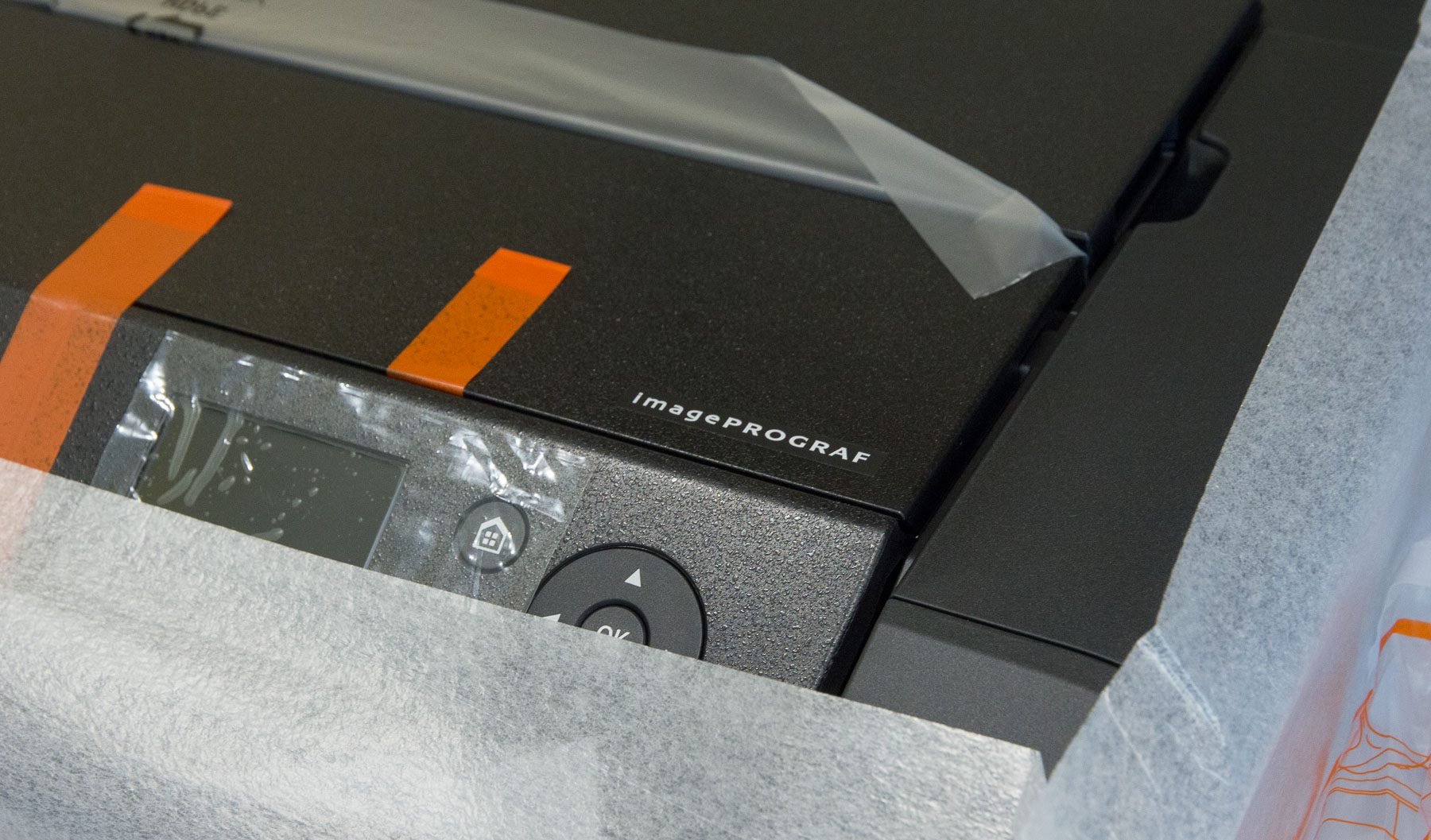

Prepare the printer by removing all orange tape and protective plastic sheets.

tabs

Anything orange needs to go

pro-100

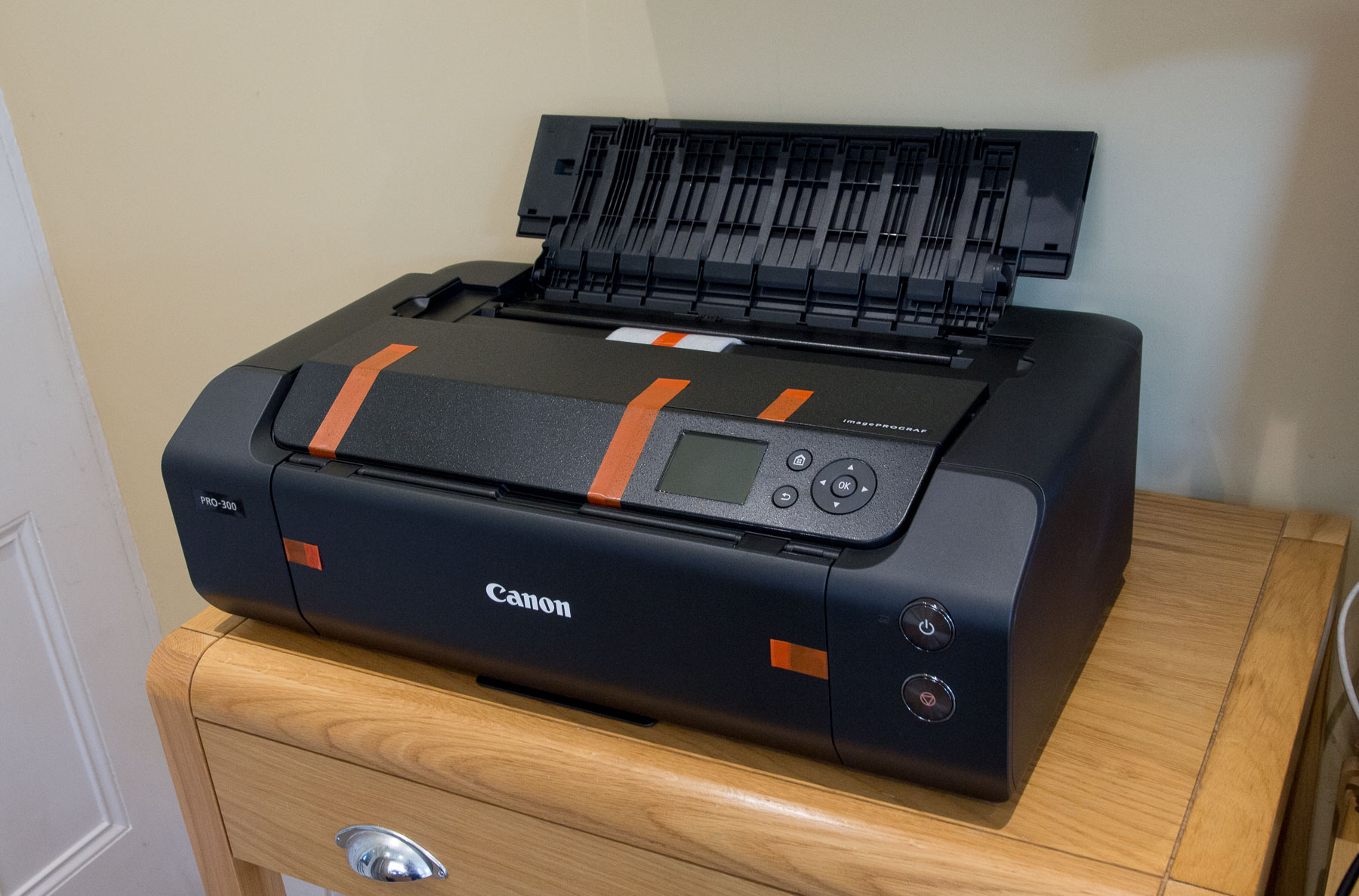

There are more bits inside….

open up printer

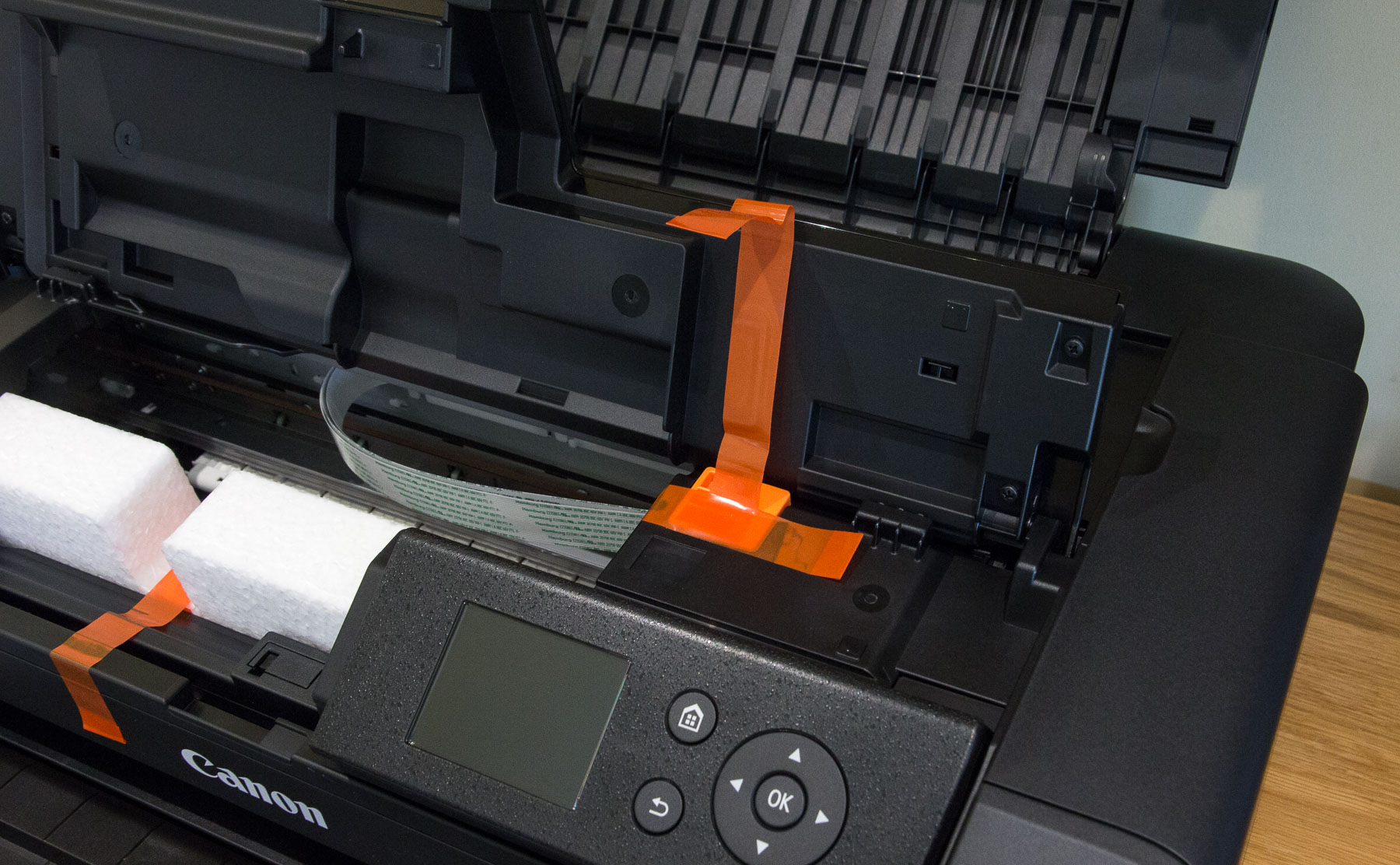

The orange plastic lock, holds the carriage in place.

carriage restraints

Space requirements

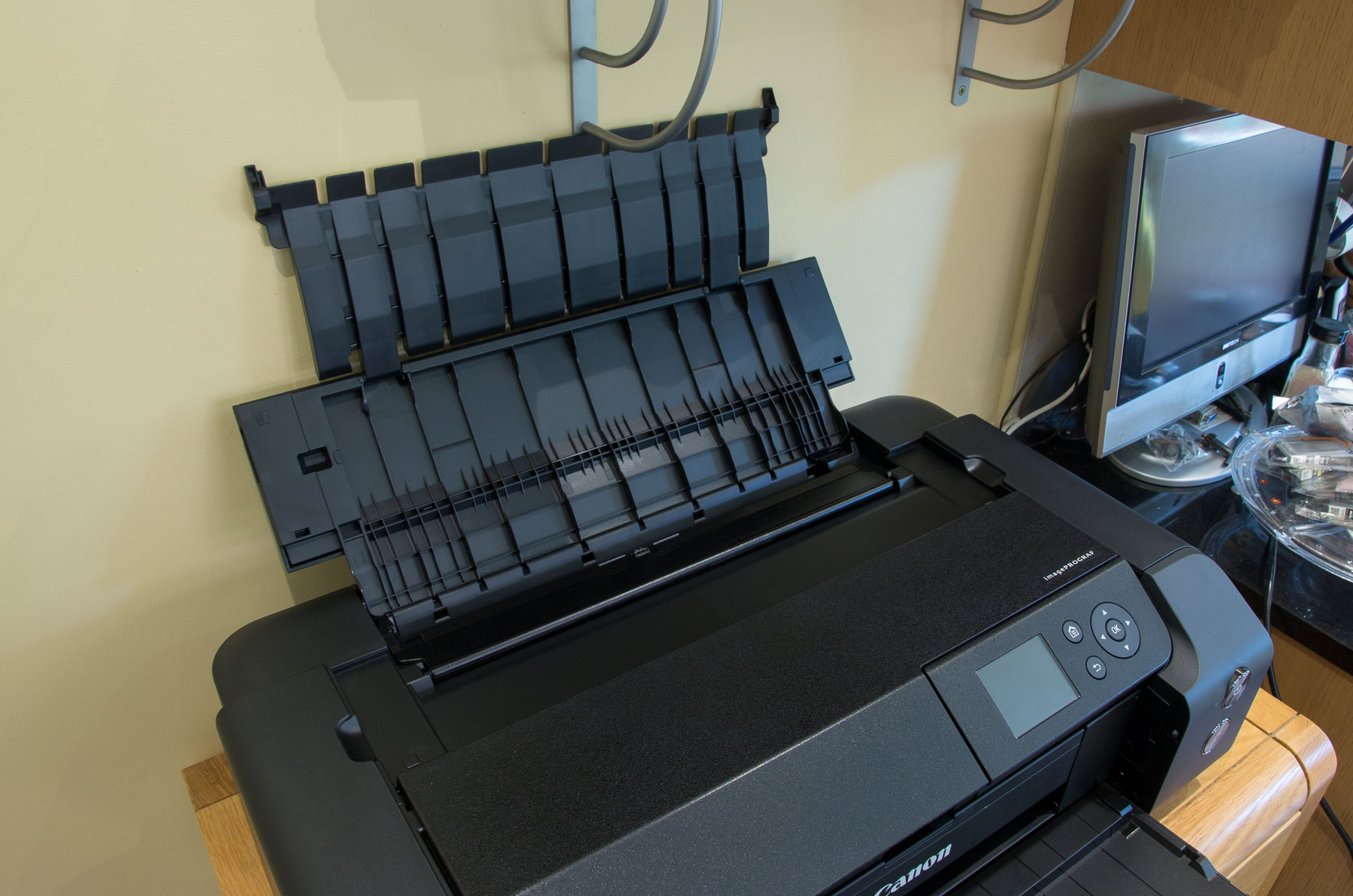

The printer has paper guides for the two paper input slots, which extend.

top paper loading slot

Note how you need space above – especially if you want to print A3+ or panoramic sizes (up to ~990mm/39″)

The rear feed slot is required for art papers (single sheet).

rear feed guides

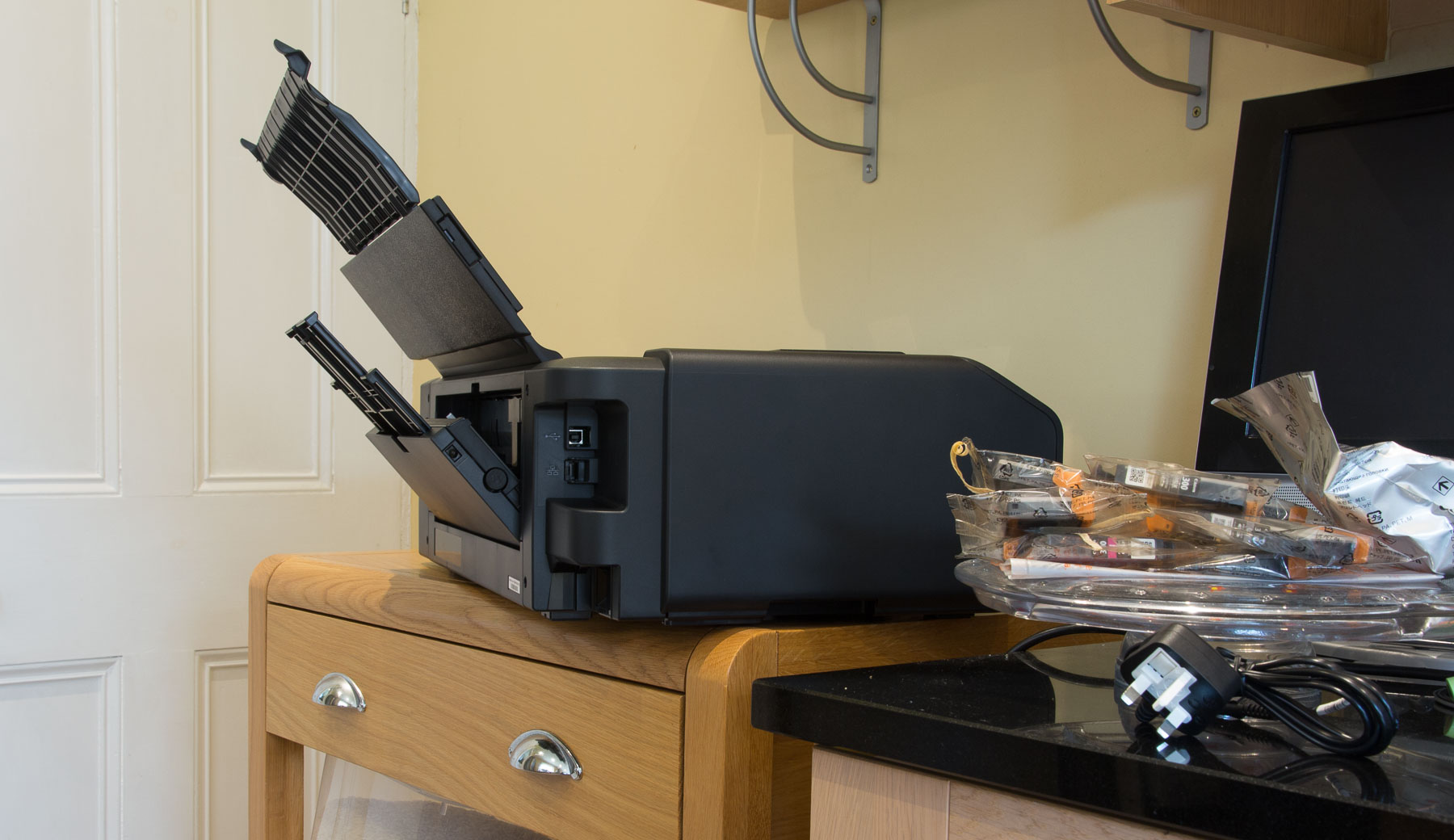

Turned round, it’s easier to see the space needed.

rear space needed

There’s also space needed at the front, unless you want prints on the floor.

extended-paper-guides

Installing the printhead

The first major task for setting up the PRO-300 is to install the print head and ink carts.

Just connect power at this point – no USB or Ethernet cables yet.

Actually, on powering up the printer, the first thing is setting language to use.

operating menus

I’d definitely suggest reading the manual – you can get it on your phone if you scan the QR code.

phone software

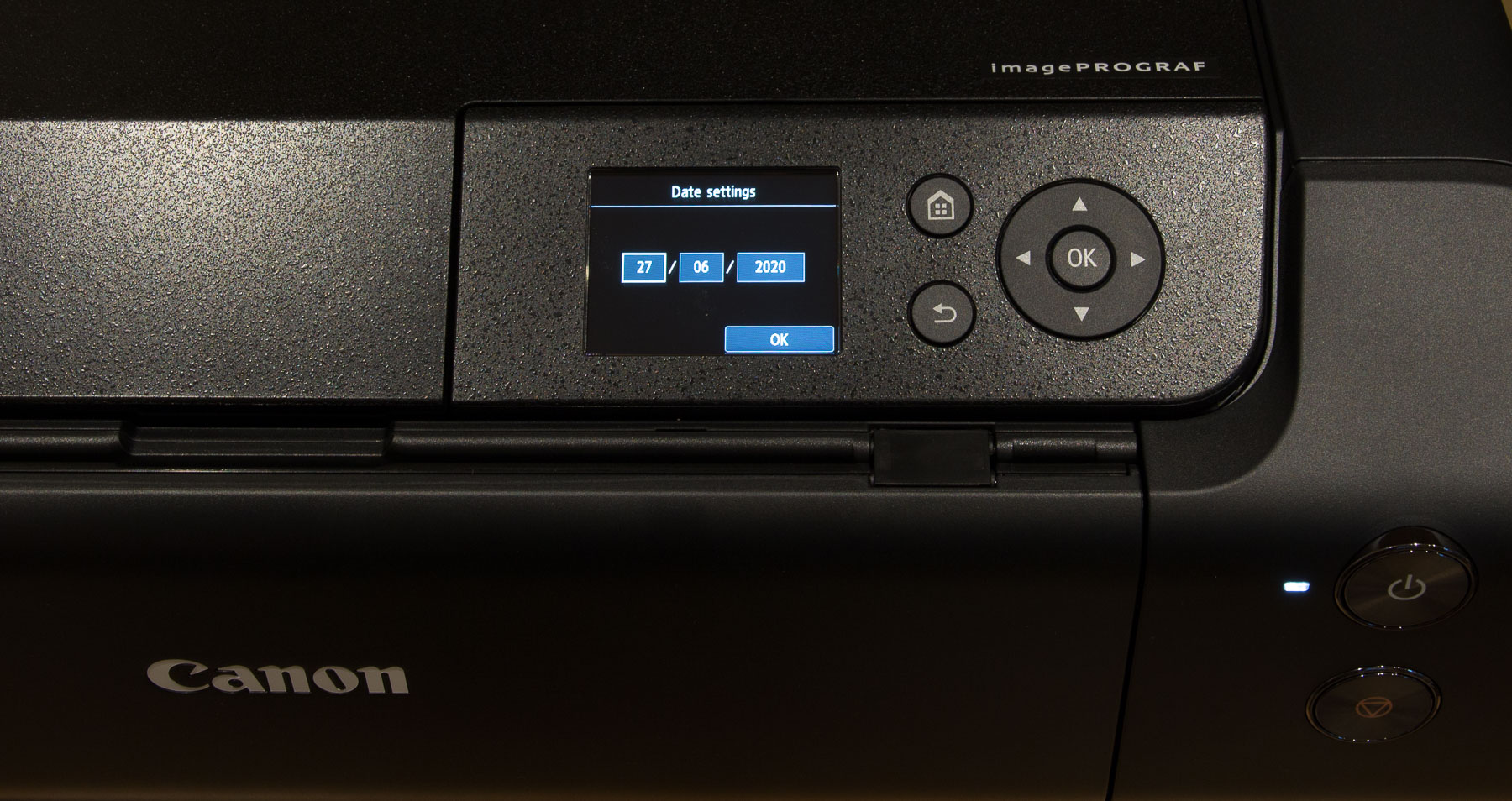

Then there is setting the time/date.

set date

It’s around this time you’ll probably forget that the screen is not a touch screen.

If I had a pound for every user setting up the printer and gently cursing the lack of touchscreen at this point I’d probably be getting a new car ;-)

keyboard

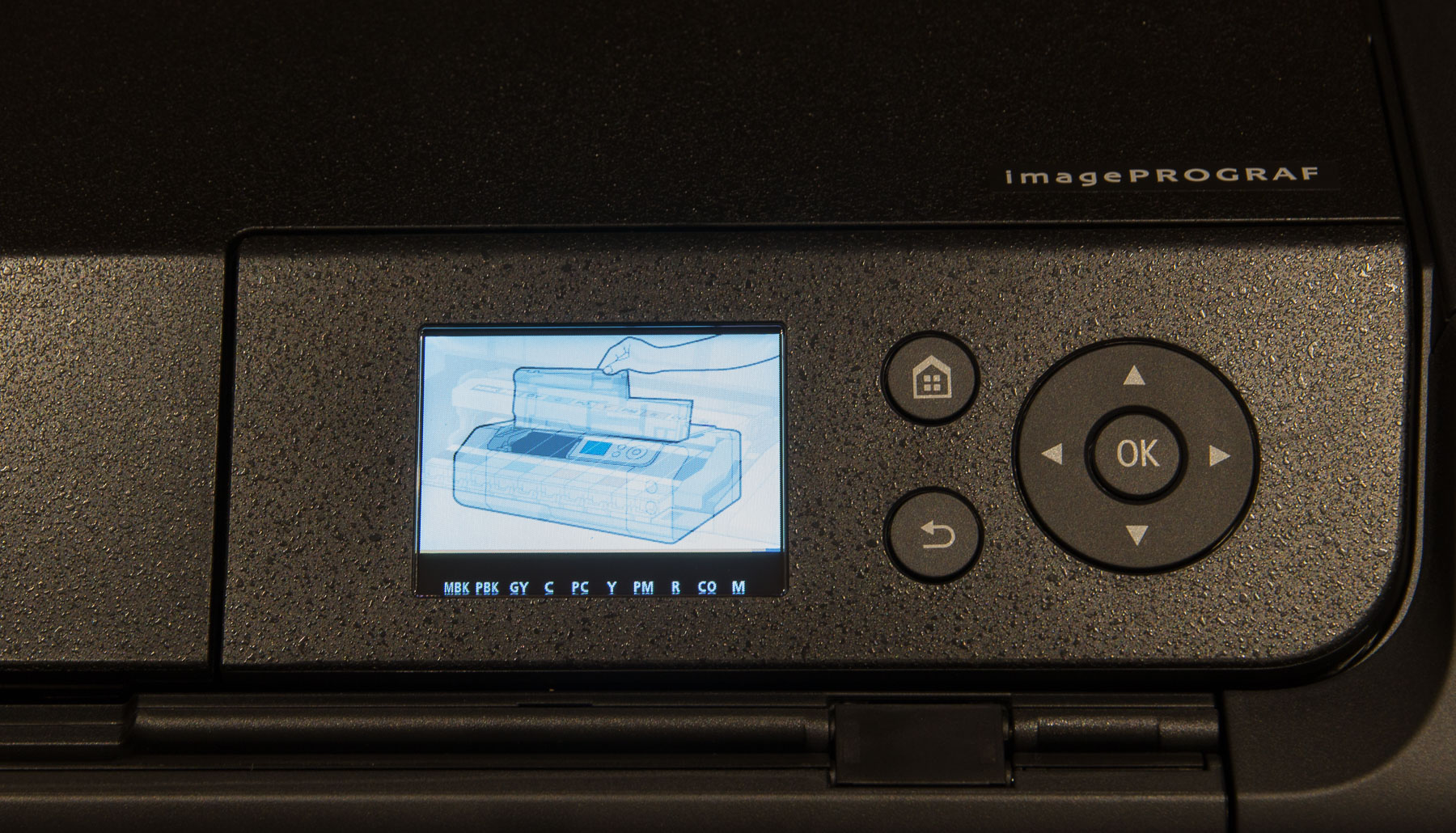

There is an animated guide for setting up the print head and ink carts.

animated guides

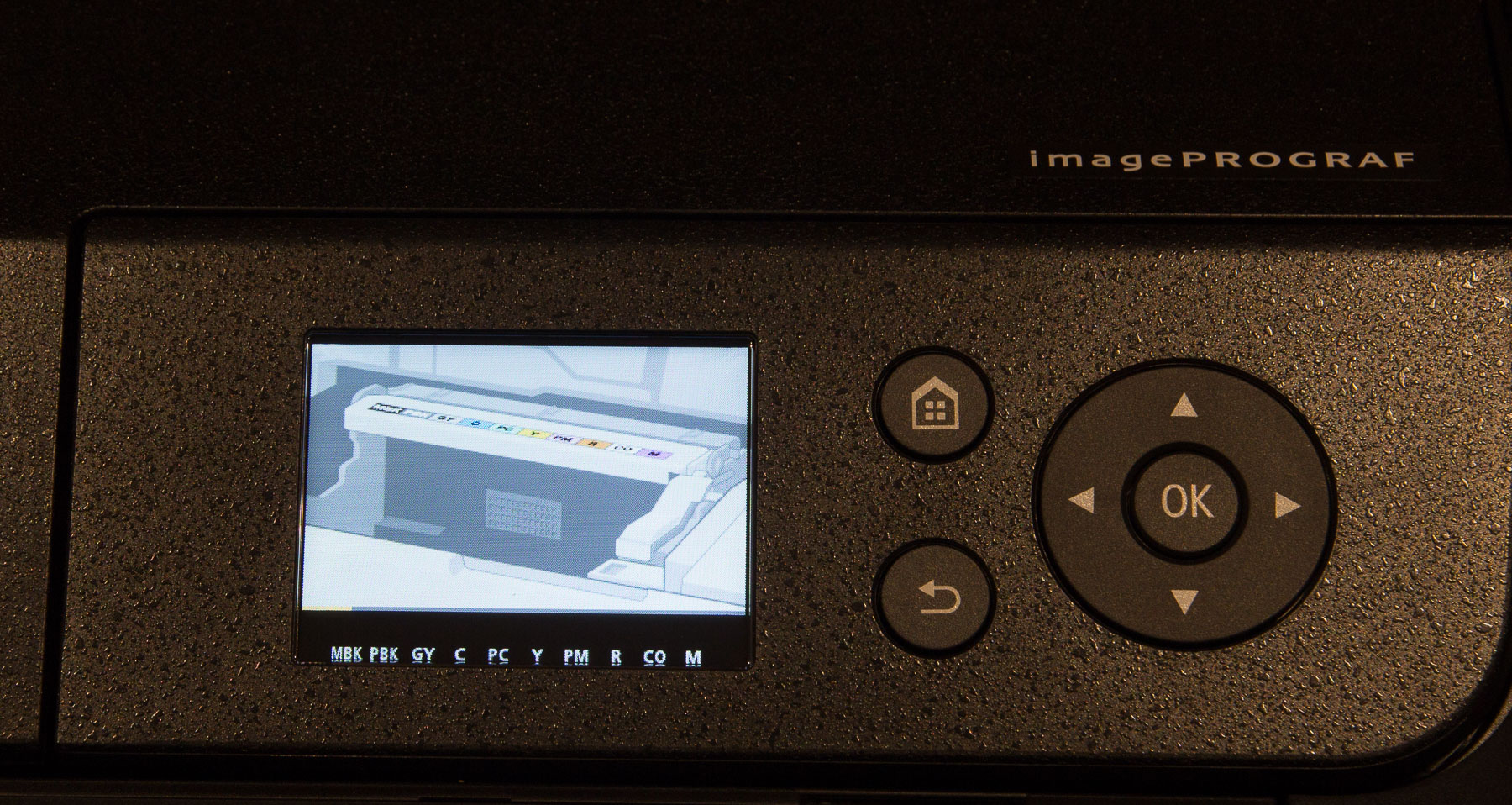

It’s a simple process, but the guides are clearly drawn.

where to fit head

Note the locking lever that will hold the head in place.

locking head in place

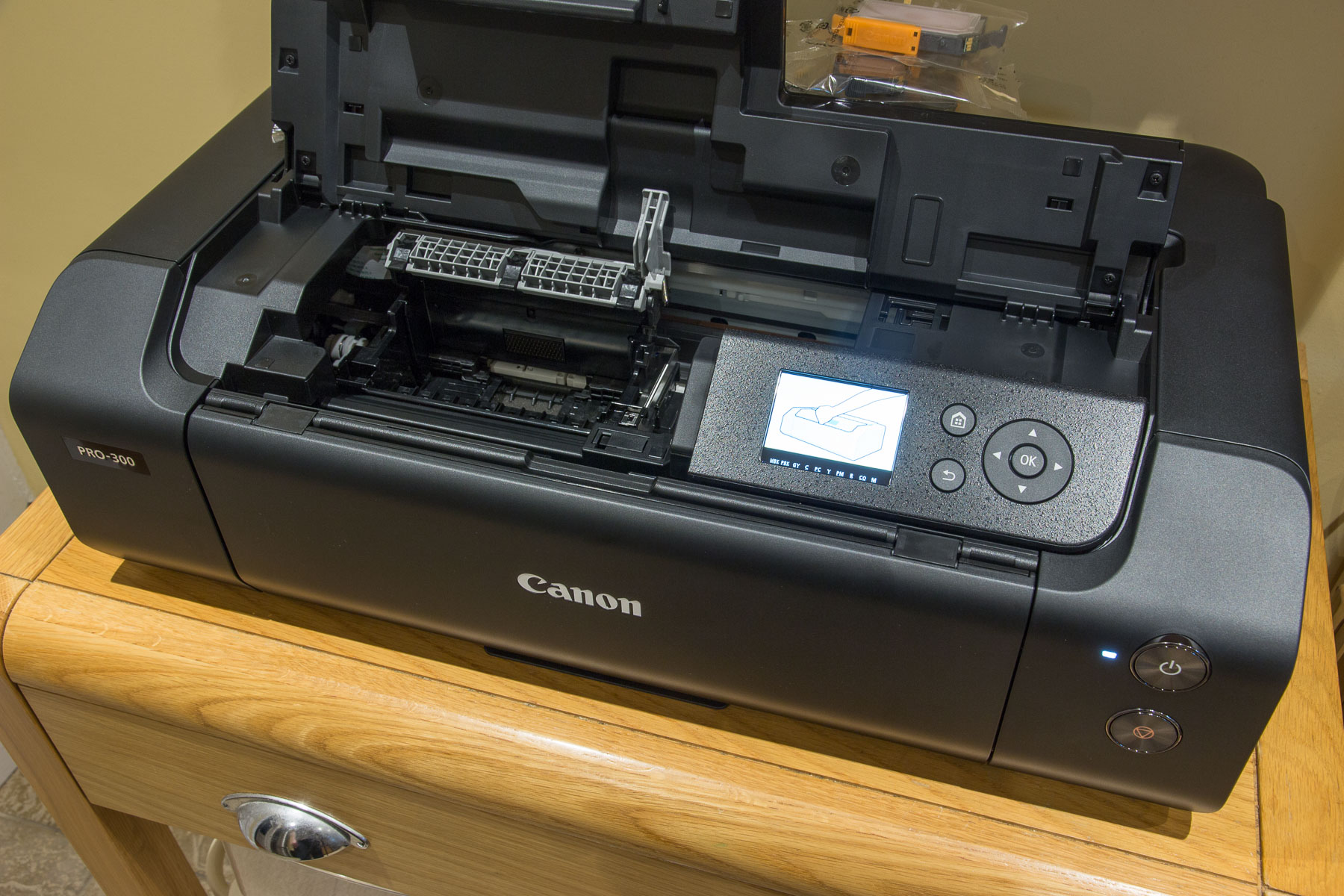

The printer moves the carriage assembly over to the left to accept the print head.

I’ve lifted the light grey locking bar to make space for fitting it.

ready to fit head

Take the print head from its sealed bag.

remove orange cover

Remove the orange cover, by unclipping it.

This reveals the electrical connections and two print heads  (5 inks per head).

Do not touch the connections or heads.

print head ready to fit

The assembly just fits in with the heads downwards and connections to the rear.

head assembly fitted

The grey lever can then be moved forward to lock the head assembly to the printer carriage.

Installing inks

The 10 ink carts need to be fitted next.

Each one has a removable orange protective cap.

Remember that no orange bits remain in the printer!

cartridge to fit

The ink pads under the orange caps will be wet with ink, so take care to do just one at a time.

Note that the grey locking bar has not been set down. The carts are installed and click into place with it down.

Use the coloured guide on the locking bar to make sure you’ve got the right carts in the right place.

all carts installed and head locked

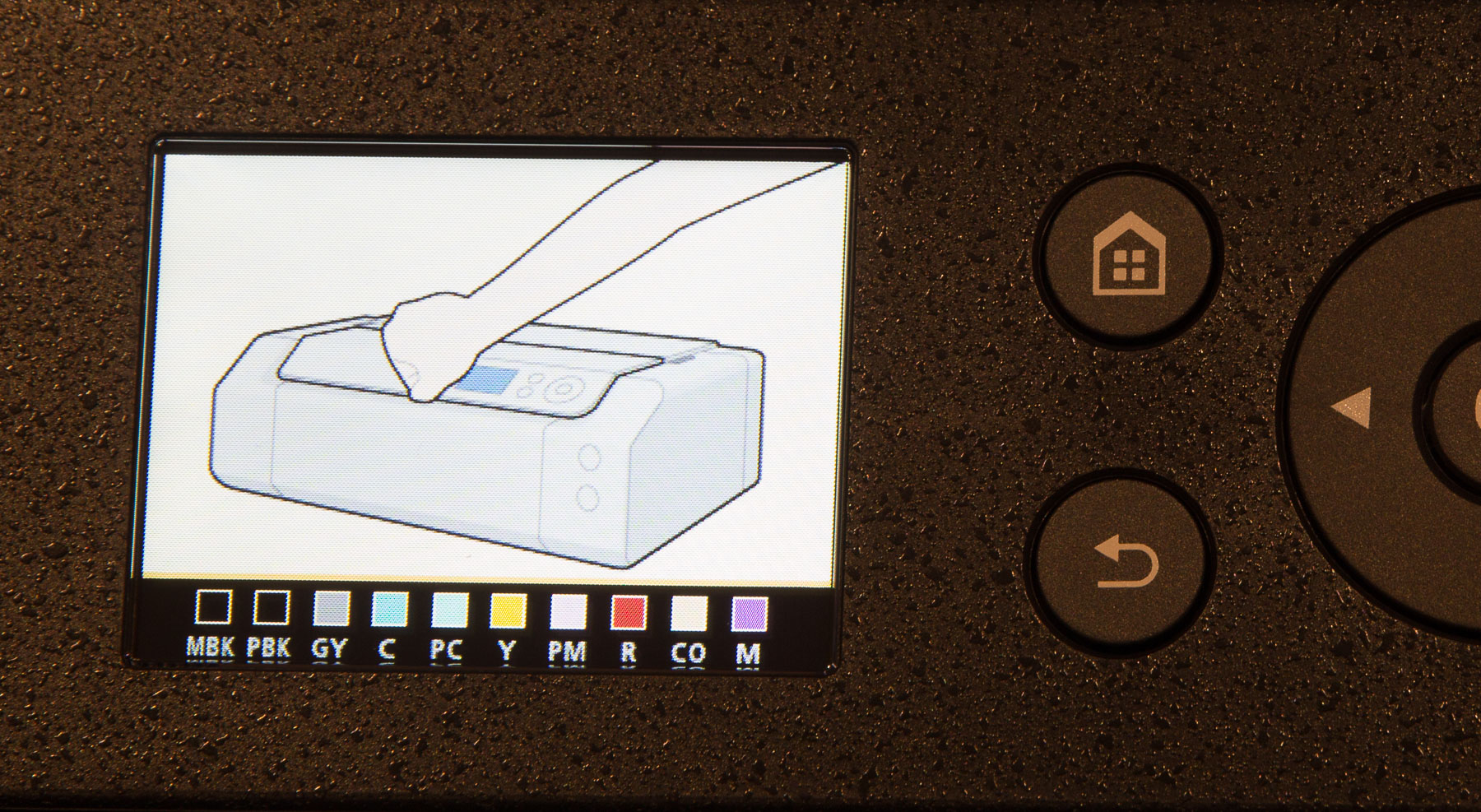

Close the printer lid when done.

all inks ready

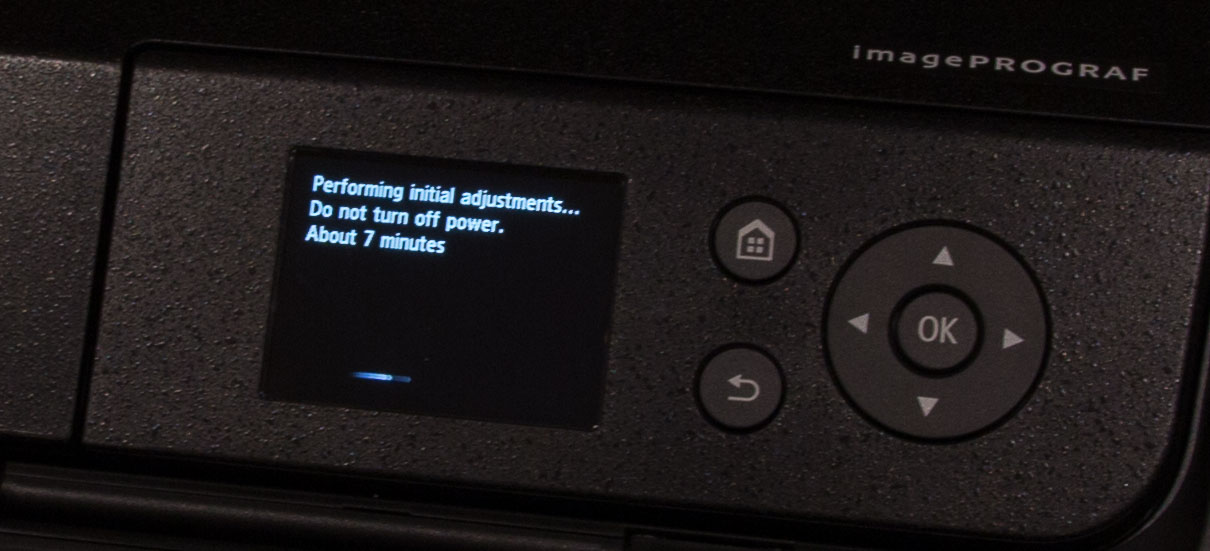

The printer now does its stuff, for 10 minutes or so. Lots of whirring and movement.

ink setup

The printer is now almost ready to go.

Alignment

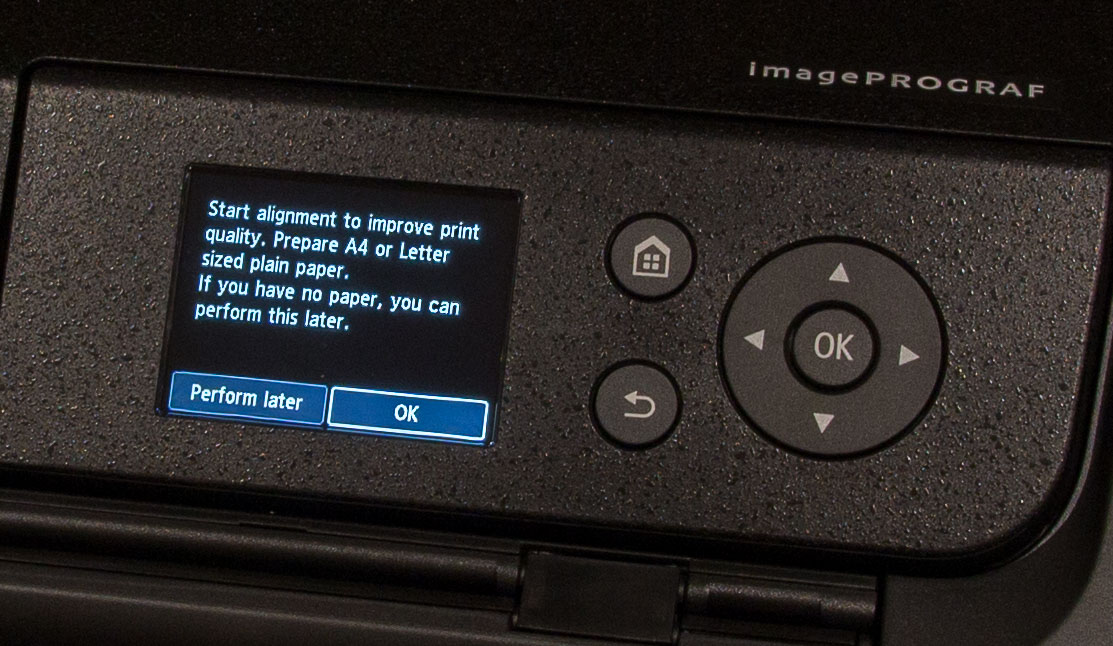

With any Canon printer I always perform the print head alignment at setup. I’ll also run it again when I replace the first cartridge.

You can delay this, but it is essential for optimum print quality.

alignment

At this point some normal plain paper will suffice.

alignment print

I repeated the process a while later when all was up and running with two A4 sheets of photo paper.

If you’re printing much at the standard setting rather than ‘best’ then using a thicker photo paper will give a more precise alignment and minimise any slight banding in solid areas of colour.

Note that the PRO-300 does not have a densitometer like the PRO-1000 and above, so there is no colour calibration performed.

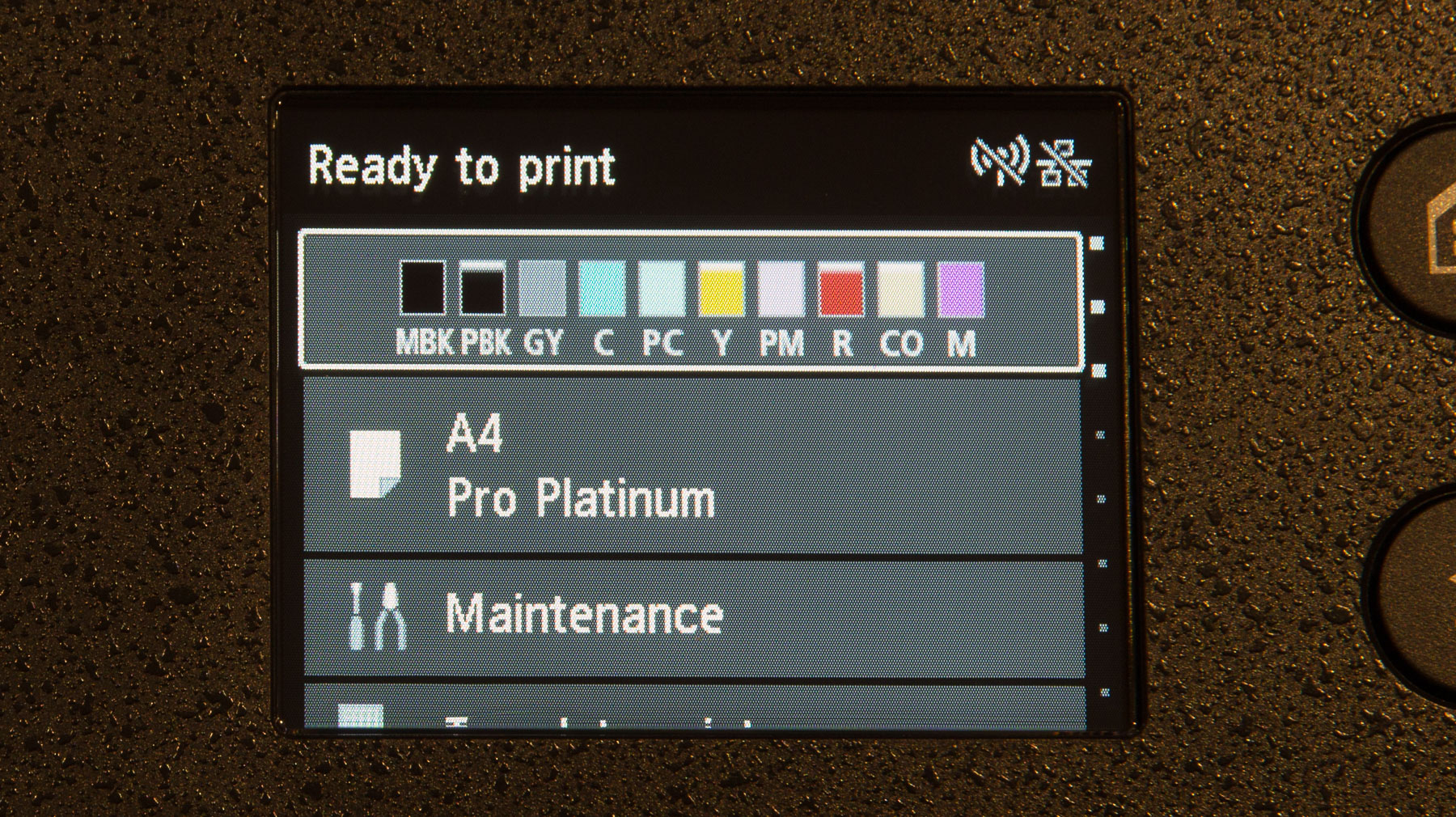

The printer is now ready to go.ready to go

The paper showing is the A4 photo paper I used for alignment. Note in the top RH corner that I’ve not yet set any network connections.

Nozzle checks

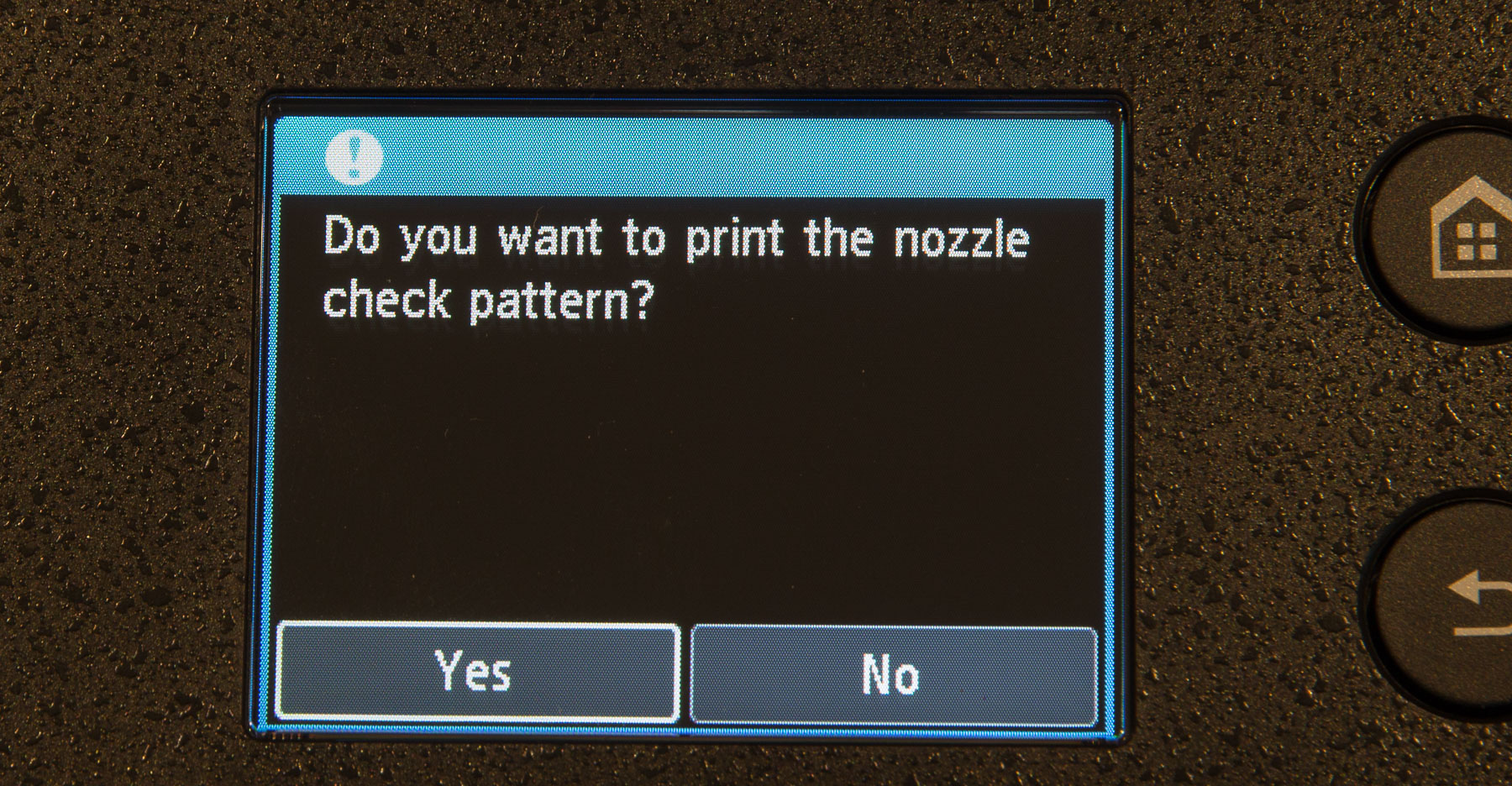

If you want to do a quick check that all’s well – the printer also has the usual nozzle check option via the maintenance menu option.

maintenance

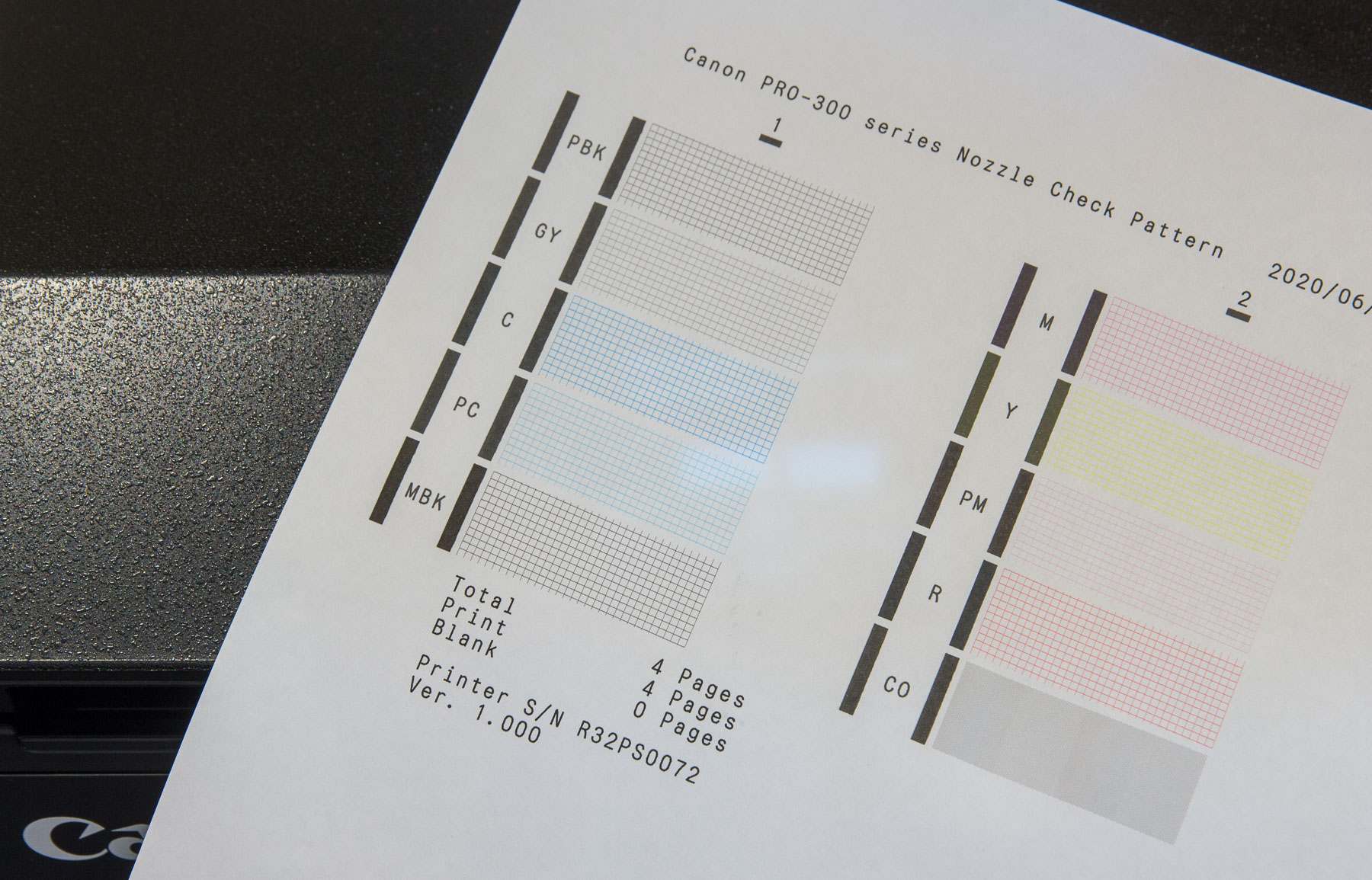

There is just the standard pattern.

nozzle check

A sheet of copier paper is fine for this.

nozzle check print

Connecting the printer

The printer can work via USB, Ethernet or wireless.

For ease of testing I almost always connect up a new printer first with a USB connection. Both wired options have sockets at the side (above the power connection).

usb and ethernet

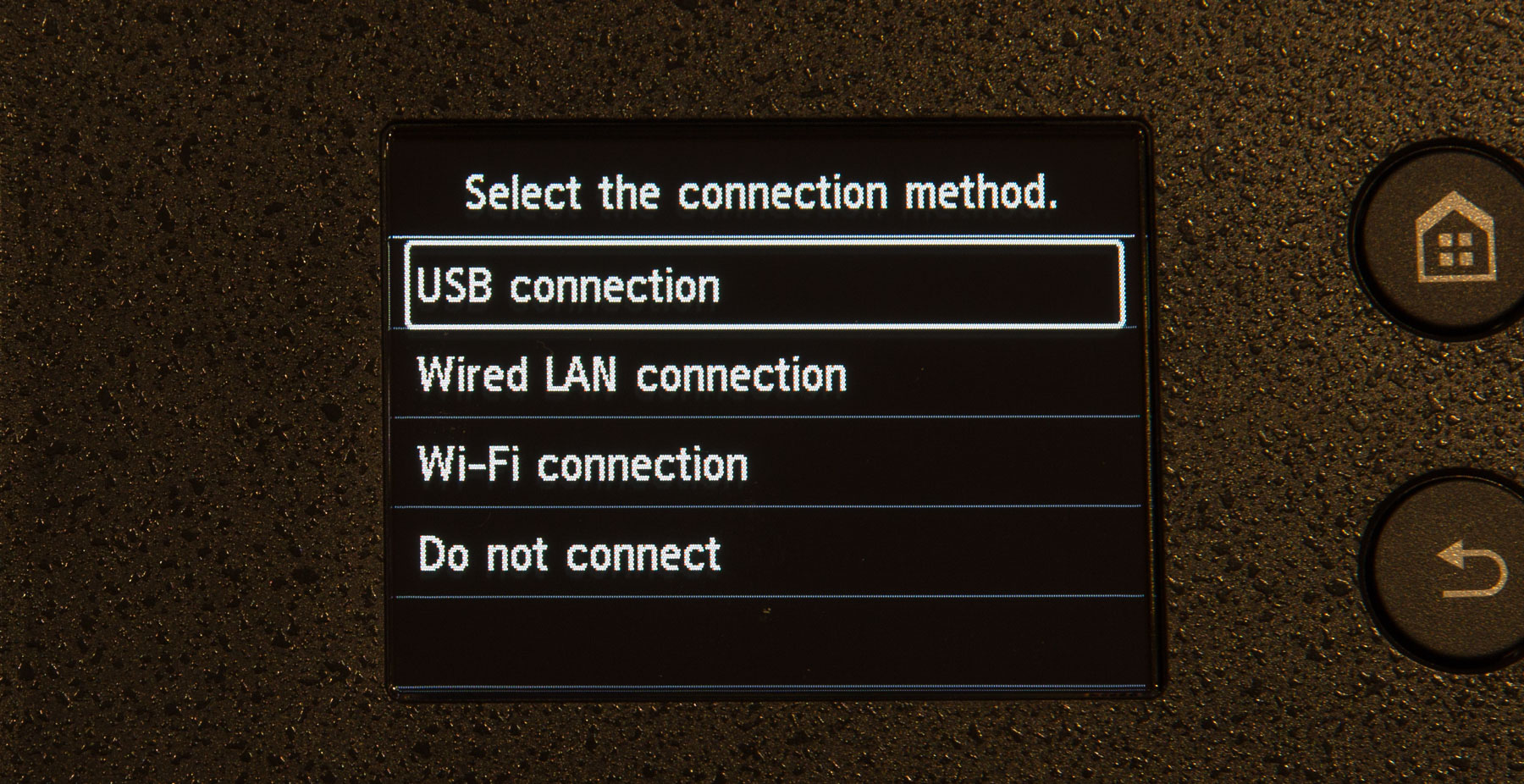

I’m just connecting the printer up to my MacBook Pro, and USB will do just fine.

usb connection

Another reminder – this is in addition to the note attached to the orange plug in the USB socket.

usb warning

There are wireless and web based options available as well. These are covered in the set-up documentation and in the main printer review.

I’ll finish of with one warning note if you’re connecting up to a Mac.

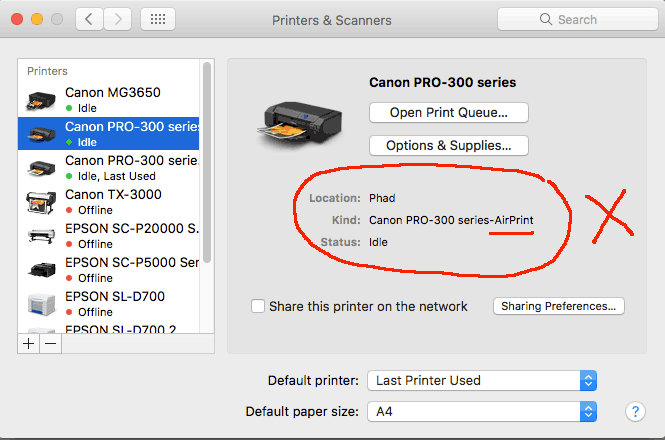

Avoiding the AirPrint Driver

You may see several printer driver options when setting up. Just make sure you don’t choose one with AirPrint in the name.

airprint-driver

If you do use it, you’ll find a much reduced range of printer options in your print dialogs.

This first caught me out a few years ago (on an Epson printer as it happens) and I know it still causes questions of ‘where have all my printer options gone’ on forums…

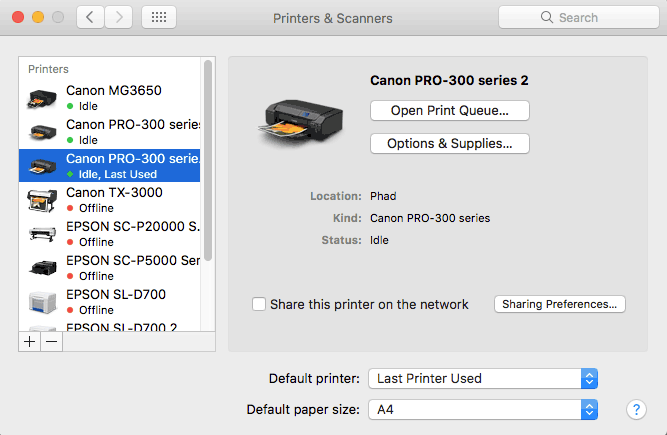

Note the difference for the correct driver.

select-driver

There’s a lot more about using the printer in the main review.
