KF Concept TC2335 Camera Tripod

  |   Articles and reviews, Hardware review, K&F, Product photography, Review, Tripod & Camera mount   |   2 Comments

KF Concept TC2335 Lightweight Tripod

Carbon fibre lightweight travel tripod


K&F Concept offer a range of tripods and camera accessories.

The TC2335 carbon fibre tripod is considerably smaller and lighter than other ones we’ve looked at.

At only around 13″ long when folded up, is it solid enough to be useful

The tripod is available ($139.99 at time of writing) at the K&F web site with free shipping to many countries.

There is a special offer at Amazon UK with code C33X3L6H (15% off until 30th April)

Using the tripod

As someone who often leaves the tripod at home, well at least on non paying jobs, I was curious to try out this new very light and very small tripod from K&F.

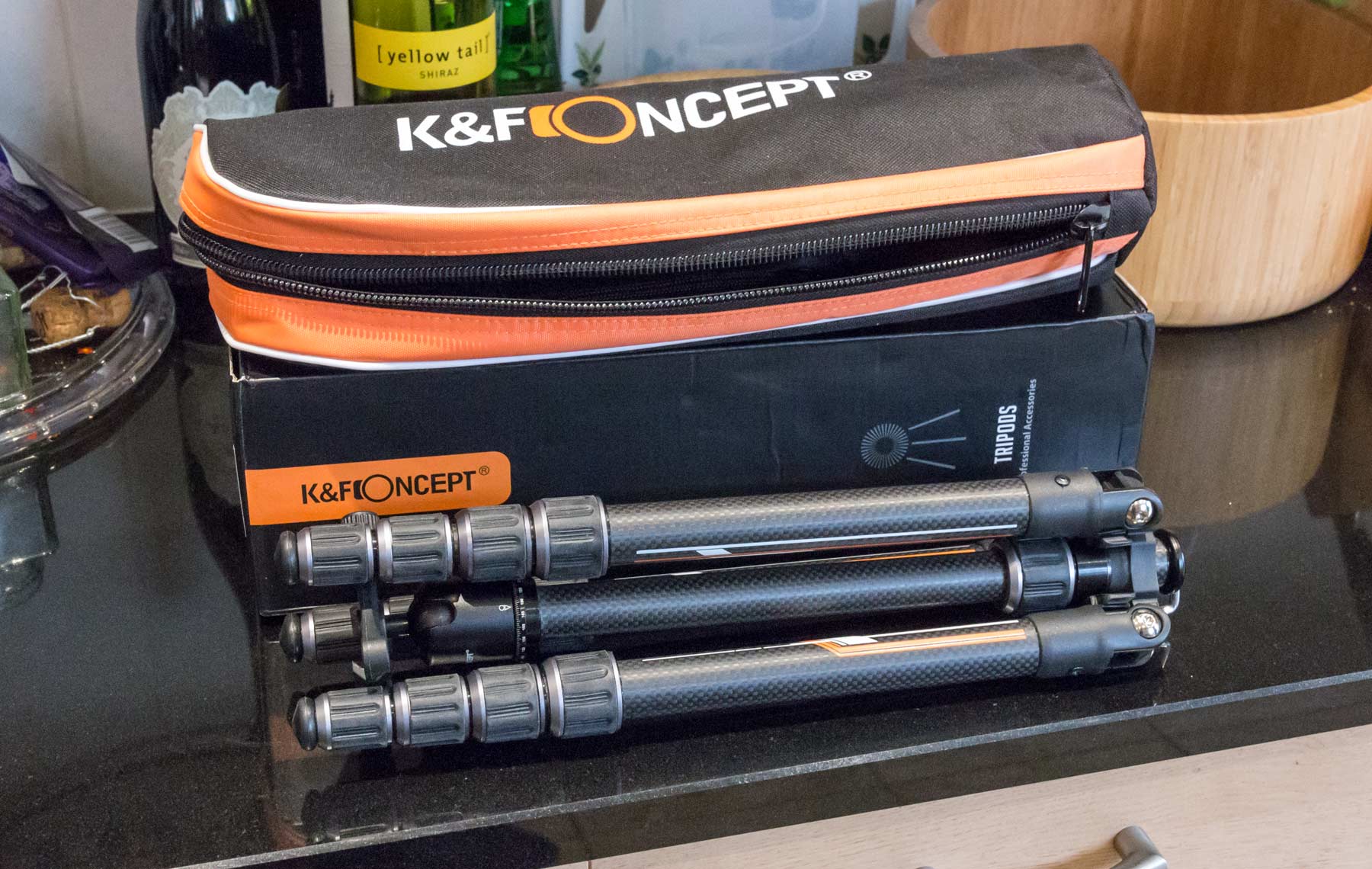

tripod-and-case

Tripod Specifications

  • Material: Carbon Fiber
  • Sections:5
  • Max Tube Diameter: 23MM
  • Max Height: 53.1″
  • Folded Height: 13.6″
  • Net Weight: 1.85pounds.
  • Load Capacity: 26.5 pounds

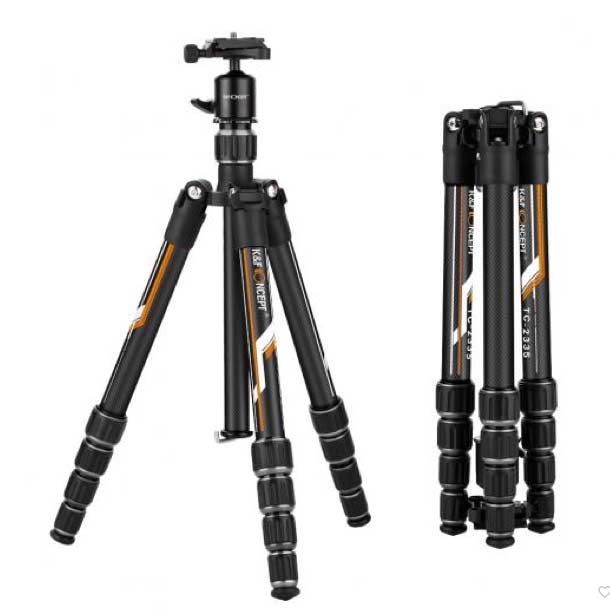

tc2335-tripod



It had no problem with any of my gear – even this old and heavy 210mm lens

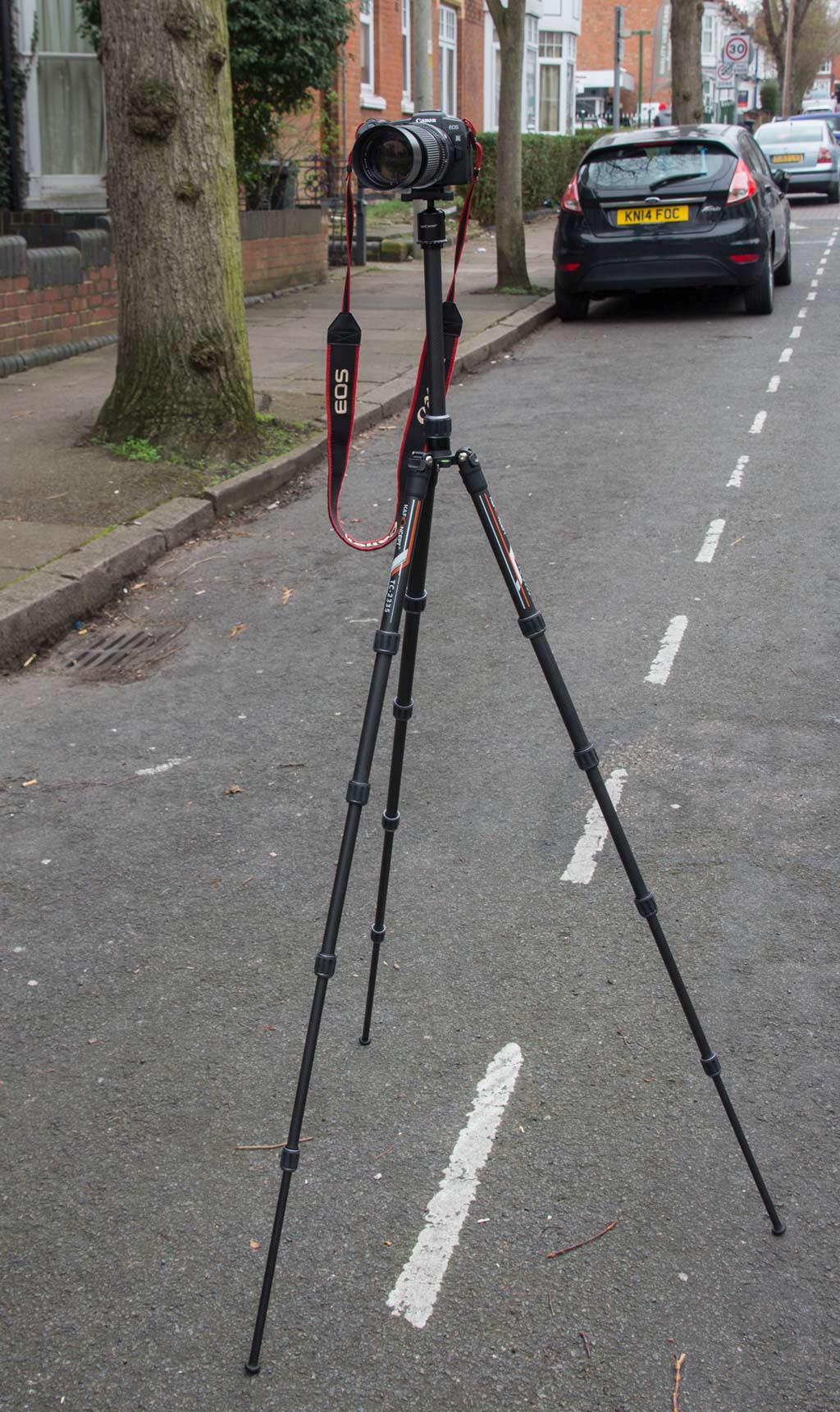

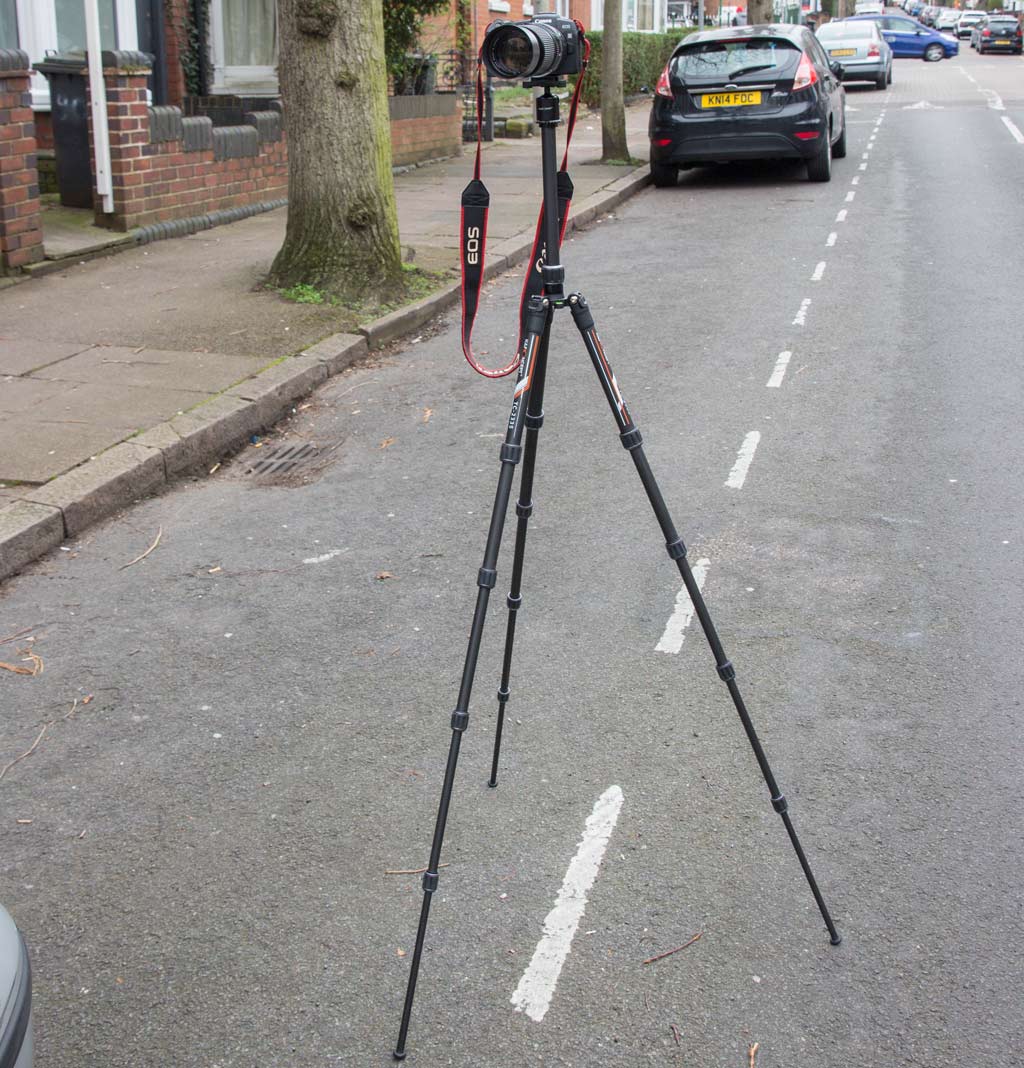

fully-extended

There are 5 sections in each leg, so take care to check tightness when extending and locking.

tc2335

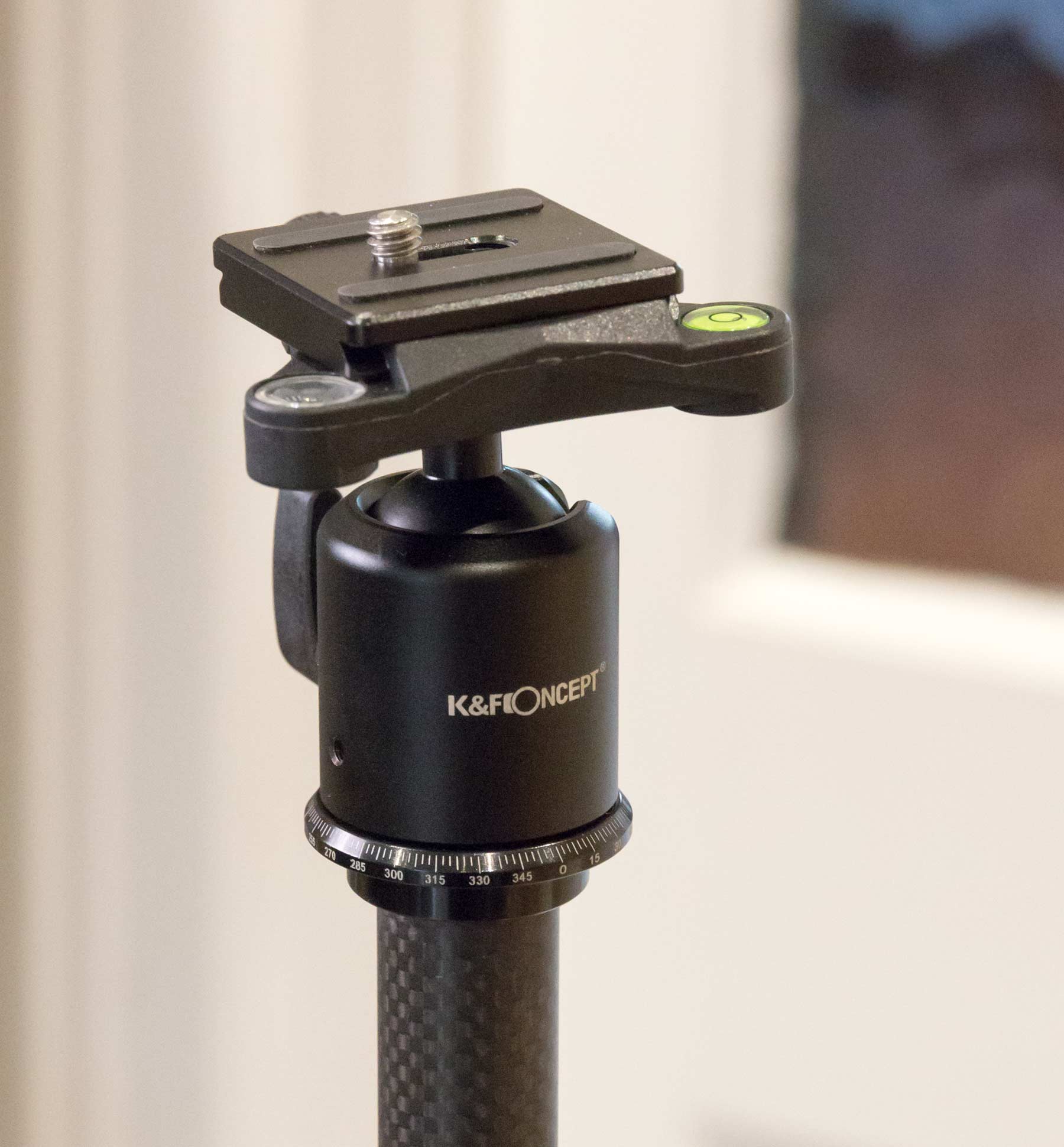

The ball head has just the one lock for ball movement and rotation.

ball-head

This means you should be careful slackening it off to rotate the camera axis, so as not to loosen the ball.

camera-on-tripod

There’s a level and small magnetic compass built into the ball head clamp plate.

compass

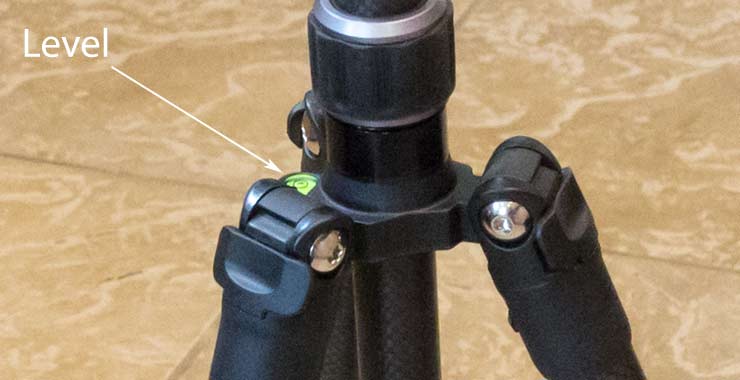

There’s another level at the hinge point of the legs, so it’s quite easy to set up the tripod for panoramic stitching, although that tends to be where I’d use a much heftier tripod.

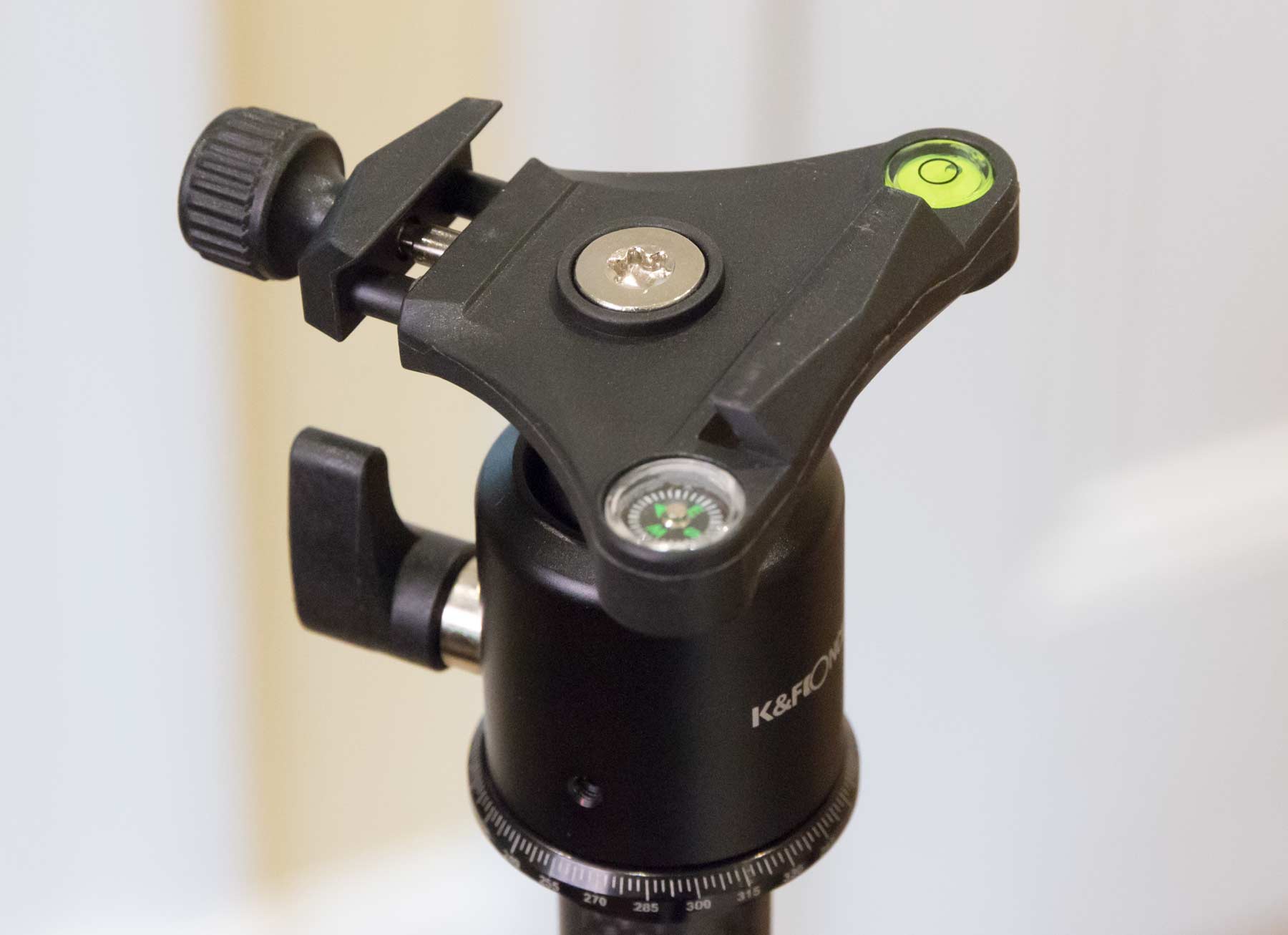

The head clamp (arca style) is pared down to save weight, but gives a sturdy grip.

light-weight-head

A plate is supplied, but all of my other ones, such as the L bracket below, worked just fine.

L bracket

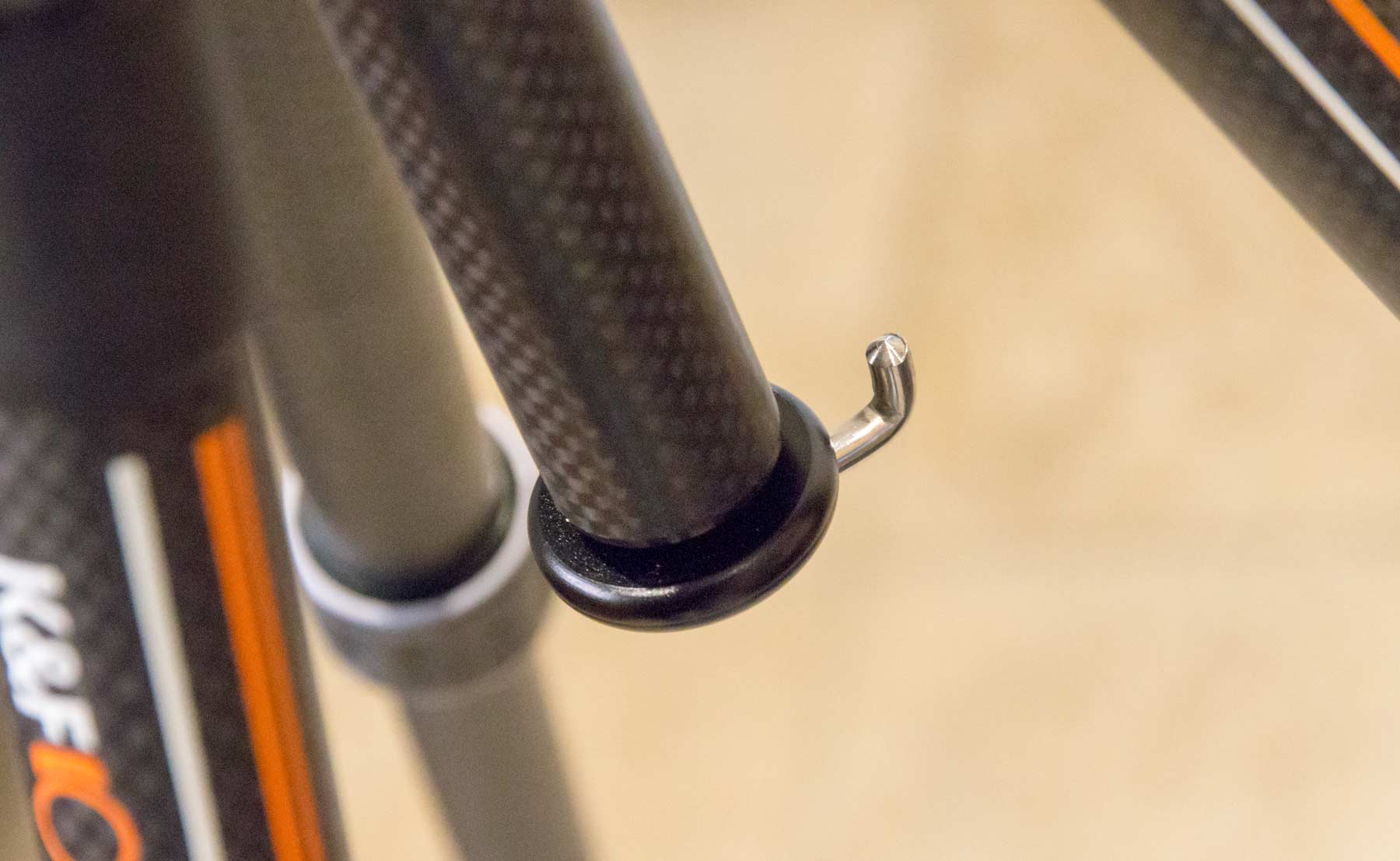

At the base of the centre column is a hook – you can hang a bag off this to give the whole tripod a lot better solidity.

lower-hook

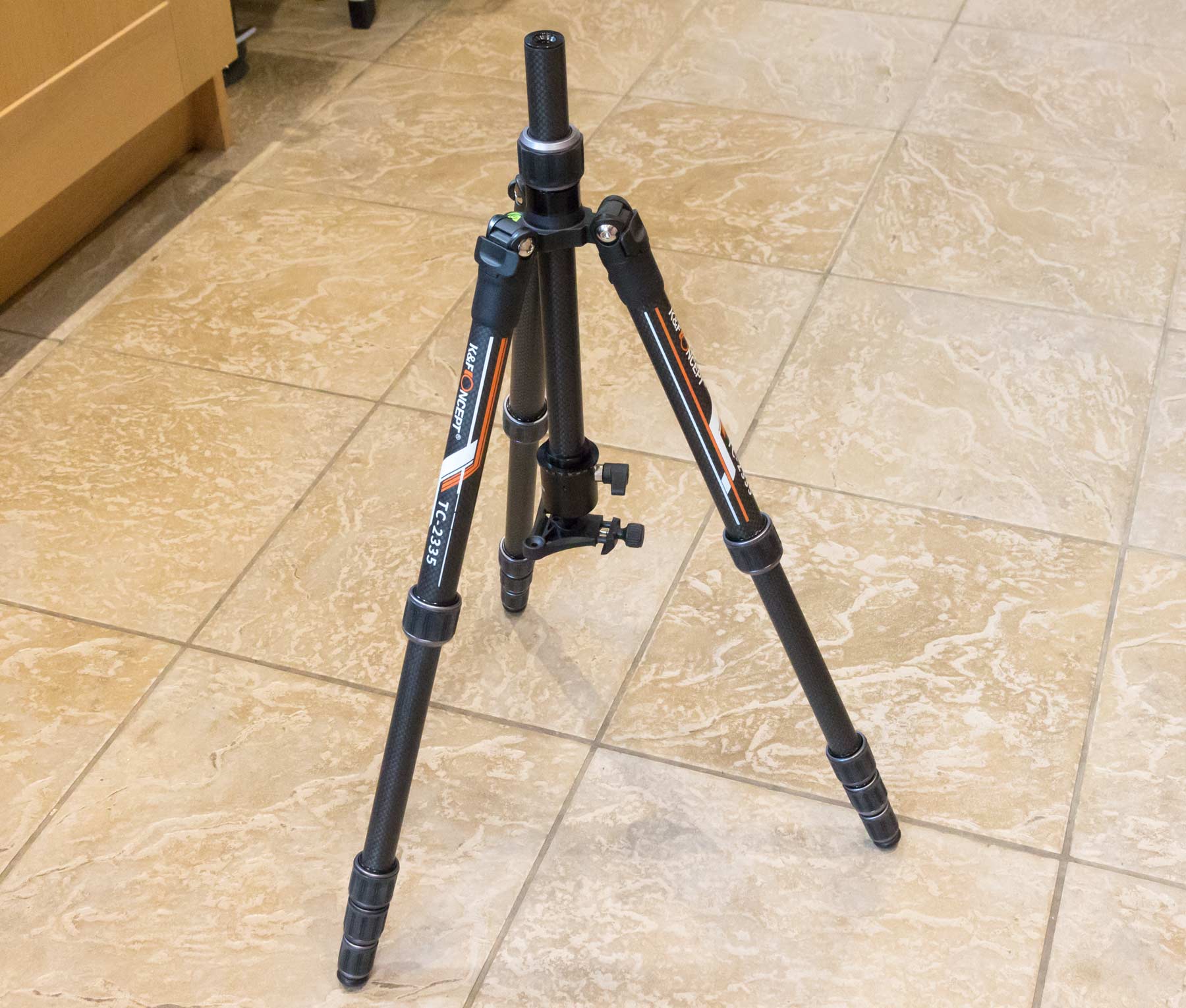

The centre column is reversible for low level shooting.

reversed-head

You can also use the legs at almost horizontal for a  low angle.

low-height-tripod

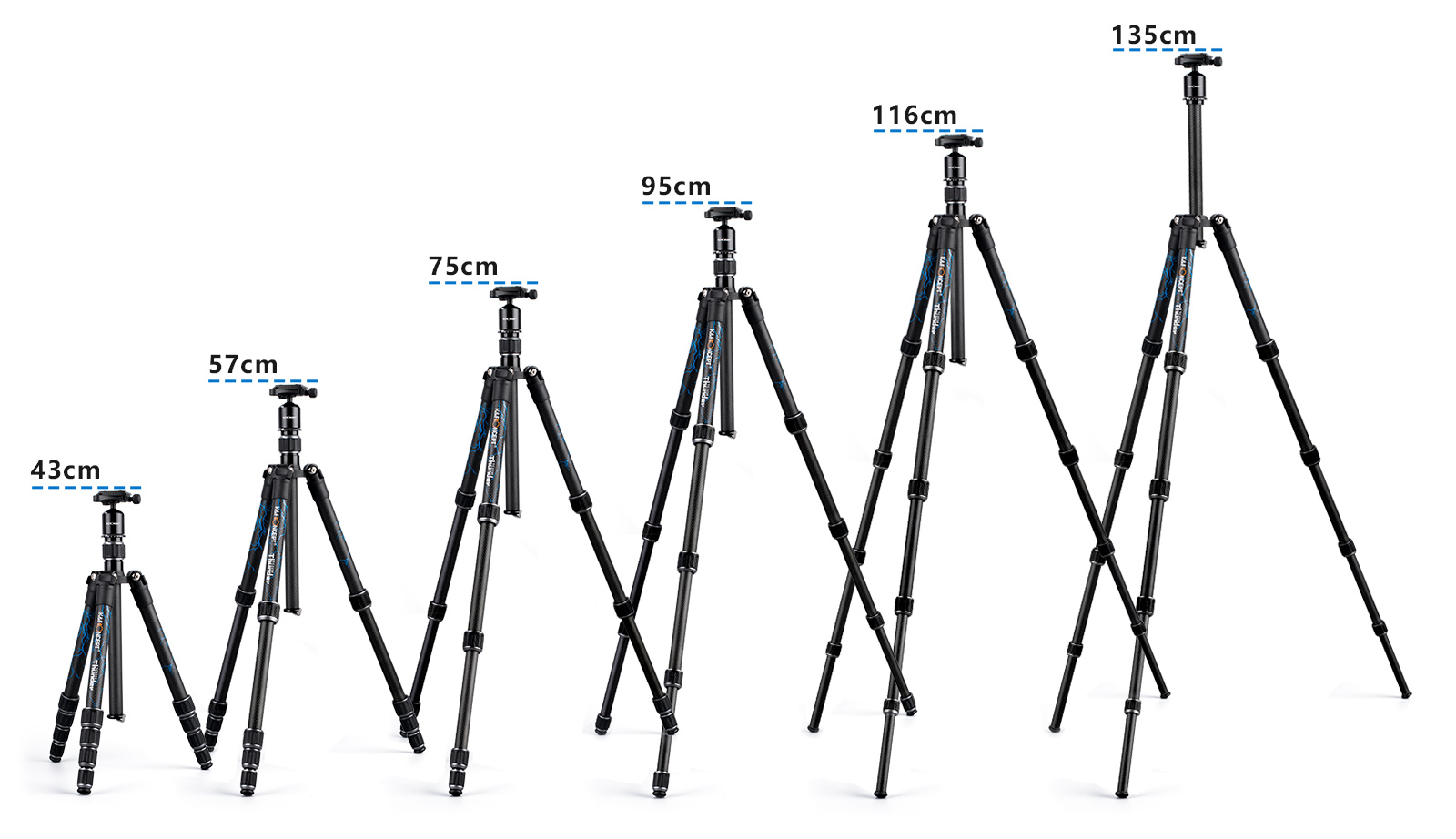

The various heights using different leg extensions:

heights

Conclusions

The tripod is impressively light and even fit inside one of my larger camera bags.

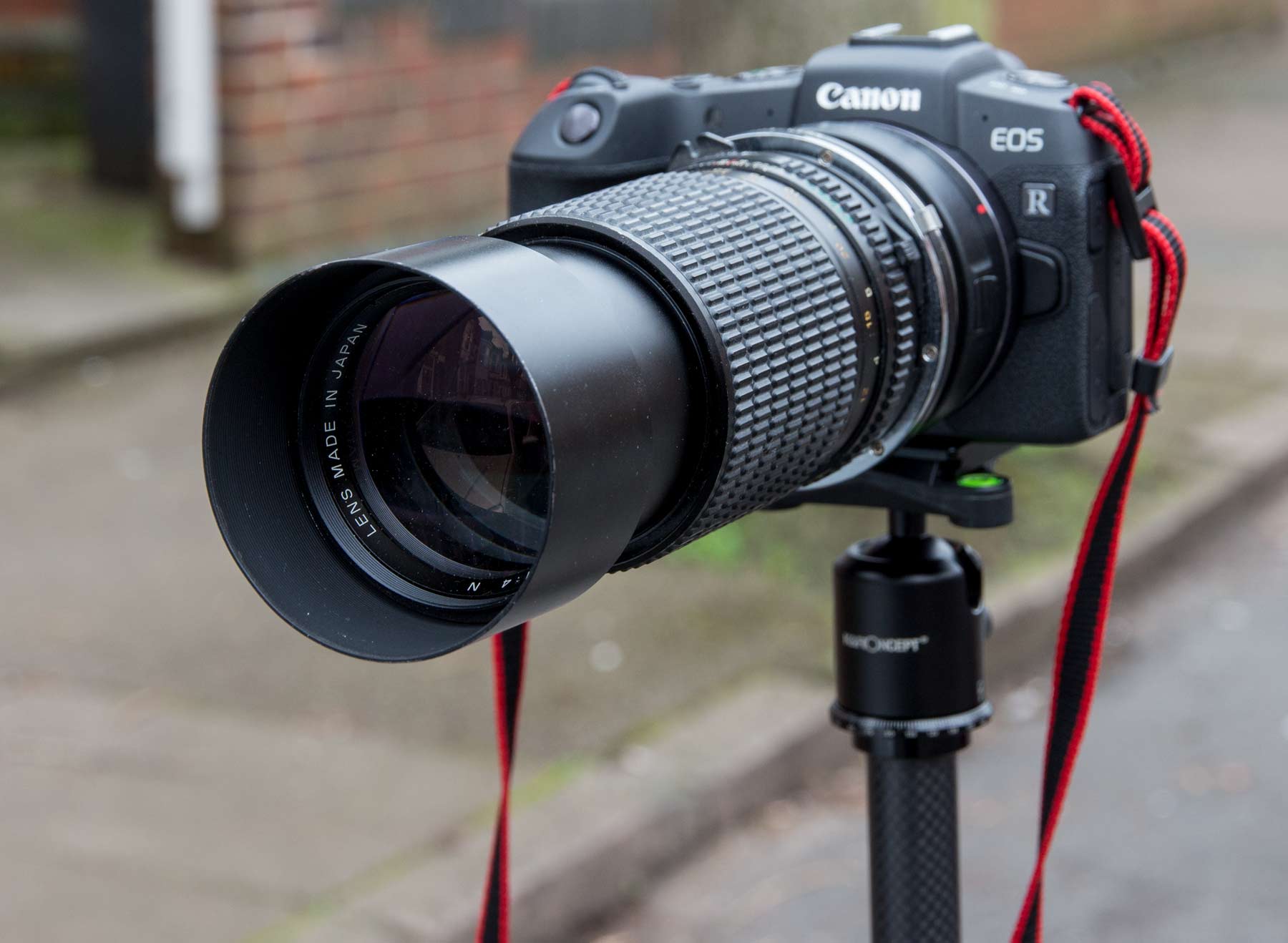

At full extension it comfortably supported this Mamiya 210/4 medium format lens on my EOS RP with a bit of flexure that required a second or two to settle.

No problem for fast exposures, but not what I’d want for a long exposure night shot, where I’d suggest using the timer/cable release. I’d also suggest hanging something of the centre column hook for stability. I tend to do this outdoors, even for quite large tripods, since it damps down vibration as well as improving stability.

210mm-on-RP

Mind you, that’s a hefty lens (and 2 adapters), with the centre column fully extended.

Lower the column and the stability improves (much less wobble). Just be sure to brace the legs well.

This particular tripod is small and light enough to actually make it on holiday with me – all my bigger ones only go on UK trips where they can be stashed in the back of the car.

The general reaction from house visitors with camera experience: “Whoa – that’s light”

The tripod is available ($139.99 at time of writing) at the K&F web site with free shipping to many countries.

There is a special offer at Amazon UK with code C33X3L6H (15% off until 30th April)
