EOS 700D – Rebel T5i info

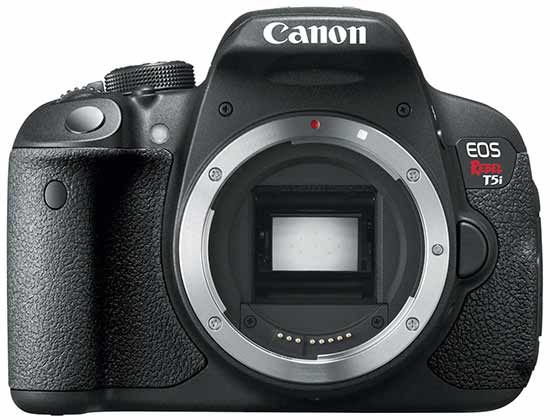

EOS 700D – Rebel T5i
Canon 700D/Rebel T5i information / updates / reviews
This is the 700D T5i info page – it contains information about the Canon 700D and includes all our pre-release rumour information.
The 650D turned out to be one of the shortest lived xxxD models and many will wonder just what’s really special about the 700D
We’ve also got full info on the extra small DSLR the 100D, announced at the same time.
> Sep 2016 Firmware
700D Key features
- STM Lens Support for Quiet AF in Movies
- 18.0MP APS-C CMOS Sensor
- DIGIC 5 Image Processor
- 3.0″ Vari-Angle Touch Screen LCD
- ISO 100-12800, Expandable to 25600
- Full HD 1080 Video with Continuous AF
- 5.0 fps Continuous Shooting
- 9-Point All Cross-Type AF System
- Multi Shot Noise Reduction
- Compatible with Canon EF and EF-S Lenses
Buying – reduced after 750/760 launch
700D Information
> for newest items
- US announcement info
- UK announcement
- Canon DSLR Timeline – see what’s old and how long previous models have lasted
- 650D specs | 600D specs for Comparison
- > Firmware V1.1.3
700D Technical info
Sample Images
Reviews/previews
- > indicates latest additions to list
Latest 700D Information
2016 September
13th Firmware 1.1.5
Corrects a phenomenon in which when using the camera with the EF-S 18-135mm f/3.5-5.6 IS USM or EF 70-300mm f/4-5.6 IS II USM lens, even if lens aberration correction is set to “Enable”, correction will not be applied.
2015 April
18th New firmware V1.1.4 [Canon]
Firmware Version 1.1.4 incorporates the following fixes and improvements:
1 Fixes a phenomenon in which focus may not be adjusted with specific lenses when shooting remotely with EOS Utility software.
2 Fixes a phenomenon in which “LCD brightness” may not be adjusted after pressing the SET button if “Menu Display” is assigned to the SET button in the Custom Functions setting (C.Fn-7).
3 Enhances the reliability of the built-in flash exposure.
2014 January
15th New firmware V1.1.3 [Canon]
Firmware Version 1.1.3 incorporates the following fixes:
1. Fixes a phenomenon in which the camera displays Err01 or Err60, or in rare instances will lock up when in Live View shooting mode (or Movie shooting mode) when attached to the following STM zoom lenses: EF-S 18-55mm f/3.5-5.6 IS STM, EF-S 18-135mm f/3.5-5.6 IS STM, EF-S 55-250mm f/4-5.6 IS STM.
2. Corrects some Korean language misspellings displayed on the menu screen.
2013 March
24th More updates, but do note that no-one has had a camera for a real solid test yet
22nd More updated info
21st camera announced – we’ll add more to this page as we find it
700D specifications
| Price | |
| MSRP | $899.99/£849 with 18-55mm STM |
| Body type | |
| Body type | Compact SLR |
| Body material | Stainless Steel and polycarbonate resin with glass fiber |
| Sensor | |
| Max resolution | 5184 x 3456 |
| Other resolutions | 5184 x 2912, 4608 x 3456,3456 x 3456, 3456 x 2304, 3456 x 1944, 3072 x 2304, 2592 x 1728, 2592 x 1456, 2304 x 1728, 2304 x 2304, 1920 x 1280, 1920 x 1080, 1728 x 1728, 1696 x 1280, 1280 x 1280, 720 x 480, 720 x 400, 640 x 480, 480 x 480 |
| Image ratio w:h | 1:1, 4:3, 3:2, 16:9 |
| Effective pixels | 18.0 megapixels |
| Sensor photo detectors | 18.5 megapixels |
| Sensor size | APS-C (22.3 x 14.9 mm) |
| Sensor type | CMOS |
| Processor | Digic 5 |
| Color space | sRGB, Adobe RGB |
| Color filter array | RGB Color Filter Array |
| Image | |
| White balance presets | 6 |
| Custom white balance | Yes (1) |
| Image stabilization | No |
| Uncompressed format | RAW |
| File format | JPEG: Fine, Normal (Exif 2.3 compliant) Design rule for Camera File system (2.0), RAW: 14bit RAW Digital Print Order Format [DPOF] Version 1.1 compliant |
| Optics & Focus | |
| Autofocus | Contrast Detect (sensor) Phase Detect Multi-area Selective single-point Single Continuous Face Detection Live View |
| Autofocus assist lamp | by built-in flash |
| Digital zoom | No |
| Manual focus | Yes |
| Number of focus points | 9 |
| Lens mount | Canon EF/EF-S mount |
| Focal length multiplier | 1.6× |
| Screen / viewfinder | |
| Articulated LCD | Fully articulated |
| Screen size | 3″ |
| Screen dots | 1,040,000 |
| Touch screen | Yes |
| Screen type | Clear View II TFT LCD |
| Live view | Yes |
| Viewfinder type | Optical (pentamirror) |
| Viewfinder coverage | 95 % |
| Viewfinder magnification | 0.85× |
| Photography features | |
| Minimum shutter speed | 30 sec |
| Maximum shutter speed | 1/4000 sec |
| Exposure modes | Program AE Shutter priority AE Aperture priority AE Manual (Stills and Movie) Scene Intelligent Auto (Stills and Movie) No Flash Creative Auto Portrait Landscape Close-up Sports SCN |
| Scene modes | Night Portrait Handheld Night Scene HDR Backlight Control) |
| Built-in flash | Yes (Pop-up) |
| Flash range | 13 m |
| External flash | Yes (Hot-shoe, Wireless plus Sync connector) |
| Flash modes | Auto, On, Off, Red-eye |
| Flash X sync speed | 1/200 sec |
| Drive modes | Single Continuous Self timer (2s, 10s+remote, 10s + continuous shots 2-10) |
| Continuous drive | Yes (5 fps) |
| Metering modes | Multi Center-weighted Spot Partial |
| Exposure compensation | ±5 (at 1/3 EV, 1/2 EV steps) |
| AE Bracketing | ±2 (3 frames at 1/3 EV, 1/2 EV steps) |
| WB Bracketing | Yes (3 frames in either blue/amber or magenta/green axis) |
| Videography features | |
| Format | H.264 Motion JPEG |
| Microphone | Stereo |
| Speaker | Mono |
| Resolutions | 1920 x 1080 (30, 25, 24 fps), 1280 x 720 (60, 50 fps), 640 x 480 (30, 25 fps) |
| Storage | |
| Storage types | SD/SDHC/SDXC |
| Connectivity | |
| USB | USB 2.0 (480 Mbit/sec) |
| HDMI | Yes (HDMI mini) |
| Wireless | Eye-Fi Connected |
| Remote control | Yes (RC-6 connector) |
| Physical | |
| Battery | Battery Pack |
| Battery description | Lithium-Ion LP-E8 rechargeable battery & charger |
| Battery Life (CIPA) | 440 |
| Weight (inc. batteries) | 580 g (1.28 lb / 20.46 oz) |
| Dimensions | 133 x 100 x 79 mm (5.24 x 3.94 x 3.11″) |
| Other features | |
| Orientation sensor | Yes |
| Timelapse recording | Yes (by USB cable and PC) |
| GPS | Optional |
| GPS notes | via GPE2 |
UK Press Info (700D and 100D)
Canon unveils the smallest and lightest DSLR ever made, the EOS 100D, alongside the EOS 700D to let your creativity grow
EOS 700D
EOS 100D
EF-S 18-55mm f/3.5-5.6 IS STM
United Kingdom, Republic of Ireland, 21 March 2013 – Canon today unveils two new first-class additions to its entry-level consumer DSLR line-up – the EOS 700D and the smallest and lightest APS-C DSLR ever made[i] the EOS 100D. Complemented by the introduction of a new standard zoom lens, the EF-S 18-55mm f/3.5-5.6 IS STM.
The EOS 100D offers a range of simple controls and a helpful in-camera feature guide, perfect for those looking to explore the world of DSLR photography for the first time but without the bulk normally associated with a DSLR. The EOS 700D is Canon’s most advanced consumer EOS model to date. Boasting 5fps shooting, a wide 9-point all cross type AF system and Vari-angle Clear View II LCD touch screen, it is the ideal camera for those wanting to develop their photography skills further. Both new models offer outstanding 18 Megapixel (MP) resolution with simple touch screen operation, making it easy to capture and relive every moment in stunning detail, whatever your skill level
The new EF-S 18-55mm f/3.5-5.6 IS STM is the ideal standard zoom lens for both new EOS cameras, combining Canon’s leading Optical Image Stabilizer and Stepping Motor (STM) technologies to deliver minimal image blur and smooth, near-silent focus in movies.
The EOS 100D – a DSLR you’ll never want to leave behind
The EOS 100D is the smallest and lightest APS-C DSLR in its class[ii] making it compact enough to take everywhere so you can capture adventures in stunning quality. Measuring just 116.8 x 90.7 x 69.4mm and weighing only 407g, the incredibly lightweight and compact body also features a bright Optical Viewfinder – giving users the full, responsive experience of a DSLR in a compact form. The EOS 100D also features a large 7.7cm (3.0”) ClearView II Capacitive Touch screen – making it easy to adjust settings and instantly review shots after capture.
At the EOS 100D’s heart is a new 18 MP APS-C Hybrid CMOS AF II Sensor, which combines with the power of the DIGIC 5 image processor to deliver stunning results in virtually any situation. The new sensor uses phase detection pixels spread across 80 per cent of the sensor’s imaging surface to provide increased AF speed and tracking performance when the camera is in live view or when capturing Full-HD movies. Capable of shooting at speeds of up to 4fps, the EOS 100D makes it easy for beginners to capture a range of high quality images, be it of special moments with family and friends or fast-paced action on holiday.
The EOS 700D – let your creativity grow
The EOS 700D is powered by a Canon-designed and manufactured 18.0MP APS-C Hybrid CMOS sensor and DIGIC 5 image processor, which deliver outstanding levels of resolution – producing images that are consistently rich in detail and colour. Offering up to 5fps shooting, the EOS 700D is ideal for capturing a range of subjects, from fast paced action to stunning skylines, or beautiful portraits of family and friends. Additionally with a native 100-12,800 ISO range, the EOS 700D is capable of catching remarkable levels of detail even when shooting in tricky low light conditions.
The EOS 700D’s advanced AF System consists of 9 high performance, cross-type points spread across the frame, delivering greater focussing speed and accuracy to ensure photographers can always keep desired subjects in focus, even as they move around. With the option to manually select and adjust focus points, or simply use full automatic mode, the EOS 700D provides aspiring photographers with an easy way to explore different kinds of image composition as their confidence grows.
The EOS 700D features a new, simplified 360° rotating mode dial to provide easy and swift access to the camera’s various shooting modes. A 7.7cm (3.0”) Vari-angle Clear View LCD II Touch screen also makes it easy for users to adjust settings as well as frame, shoot and review from a variety of angles. A new external coating, adopted from Canon’s mid-range EOS models, also provides a more robust and durable finish.
Enhanced creative modes
Both the EOS 700D and EOS 100D feature a range of super easy-to-use shooting modes and creative filters – making it simple for beginners to start with creative pre-sets and then explore their creativity as their confidence grows. Scene Intelligent Auto mode automatically detects the scene being shot and selects best settings so users can simply focus on the image, letting the camera decide the best combination of settings for the scene. Both new models also offer a range of dedicated scene modes, with the
EOS 100D featuring new Kids, Food and Candlelight modes, designed to ensure optimum results with stunning detail in a range of familiar situations.
Canon’s exciting range of Creative Filters, including Fish-eye and Miniature effect, can now be applied before capture thanks to new real-time filter previews – providing the perfect way to pick the most suitable effect for specific moments before you actually take the shot. Photographers can also learn how to adjust their images with enhanced Creative Auto Mode, and using new Extra Effect Shot mode on the EOS 100D, users can even capture two images simultaneously – one with a Creative Filter applied, as well as one standard image.
Explore videography with EOS Movies
Aspiring photographers can add another dimension to capturing their memories, using EOS Movies to shoot their precious moments in glorious Full HD resolution (1920x1080p). Hybrid AF II[iii] always keeps the stars of the movie in focus, with continuous AF constantly tracking subjects during shooting. Additionally, Video Snapshot mode makes it easy to capture and edit short video clips to bring to life an exciting day, such as road trips and weddings.
EF-S 18-55mm f/3.5-5.6 IS STM – A standard STM zoom lens, for everyday photos and video
The new EF-S 18-55mm f/3.5-5.6 IS STM is the perfect lens for EOS 700D and EOS 100D users to start their photography adventure. From sweeping landscapes to portraits, the versatile 18-55mm zoom range means users can enjoy the flexibility of getting close to subjects or getting more in the shot. Images are captured with precision detail and clarity thanks to a 4-stop Optical Image Stabilizer, which also lets photographers use lower ISO levels and longer shutter speeds. The full time manual focus ring allows users to make precise focus adjustments, while the near-silent STM technology also ensures noise is kept to a minimum whilst focusing – perfect for when capturing movies.
EOS 100D – key features:
· 18.0 Megapixel Hybrid CMOS AF II sensor
· Compact, portable design
· Simple shooting with Scene Intelligent Auto
· Optical viewfinder and large touch screen
· Full-HD movies with Hybrid CMOS AF II
· Creative Filters and Extra Effect Shot
· Built-in Feature Guide
· EOS System of lenses and accessories
EOS 700D – key features:
· 18.0 Megapixel Hybrid CMOS AF sensor
· Creative Full-HD movies and Hybrid CMOS AF
· Vari-angle Clear View LCD II Touch screen
· Scene Intelligent Auto
· ISO 100-12800 sensitivity, extends to ISO 25600
· 5 fps shooting 9-point AF system
· Range of Creative filters
· EOS System of lenses and accessories
EF-S 18-55mm f/3.5-5.6 IS STM – key features:
· Versatile focal length range
· Compact design
· Four-stop optical Image Stabilizer
· Smooth focusing with STM motor
· 0.25m closest focusing distance
· Super Spectra Coating
· Non-rotating front element
· Manual focus ring
· Circular seven-bladed aperture
Pricing and availability:
The EOS 700D is available from late April, with an SRP of:
£629.99 / €799.99 – body only
£759.99 / €969.99 – with EF-S 18-55mm f/3.5-5.6 IS STM
The EOS 100D is available from late April, with an SRP of:
£579.99 / €739.99 – body only
£709.99 / €909.99 – with EF-S 18-55mm f/3.5-5.6 IS STM
EF-S 18-55mm f/3.5-5.6 IS STM is available from late April, with an SRP of £239.99 / €299.99.
Launch promotion
Pre order or purchase a new Canon EOS 700D or EOS 100D between 21st March – 30th April and receive a Canon 300EG Gadget Bag free of charge. For more info please visit: www.canon.co.uk/bagpromotion.
Please note the promotional webpage will be live from 22nd March 2013.
[i] According to Canon research, correct as of 21 March 2013
[ii] According to Canon research, correct as of 21 March 2013
[iii] Hybrid AF II only features in the EOS 100D, EOS 700D features Hybrid AF
US Press information
MELVILLE, N.Y., March 21, 2013 – Canon U.S.A., Inc., a leader in digital imaging solutions, is proud to introduce a new flagship model to its popular EOS Rebel line, the EOS Rebel T5i Digital SLR Camera. The incredible image quality and performance starts with an 18 megapixel CMOS (APS-C) sensor and Canon’s superb DIGIC 5 Image Processor. Combined with an extensive ISO range of 100-12800 (expandable to 25600 in H mode), the EOS Rebel T5i boasts crisp, detailed images, even in low-light conditions. With a continuous shooting speed of up to 5.0 frames per second (fps) united with 9 all cross-type AF focus points, the new EOS Rebel T5i allows photographers the opportunity to shoot with ease, even in challenging shooting situations.
When shooting in Live View mode, the Hybrid CMOS AF system enables speedy and accurate autofocus for photos and video. Coupled with Canon’s new EF-S 18-55mm f/3.5-5.6 IS STM lens, available in the standard kit lens bundle, the EOS Rebel T5i takes full advantage of the Stepping Motor (STM) technology, which allows the lens to smoothly and silently focus on the subject whether it is moving or standing still. When combined with the camera’s high-resolution Vari-angle Touch Screen 3.0-inch Clear View LCD monitor II and intuitive touch controls, the EOS Rebel T5i stands as Canon’s most “consumer-friendly” DSLR.
“Built to make advanced photography creative and fun, the EOS Rebel T5i Digital SLR Camera gives users exceptional image quality and fast, intuitive operation along with creative functions to help advance photographic expression,” said Yuichi Ishizuka, executive vice president and general manager, Imaging Technologies & Communications Group, Canon U.S.A.
Expand Your Creativity with New Advanced Features
The EOS Rebel T5i provides amateur and advanced photographers looking to hone their creative and technical skills with a range of features that allow for crisp, clear images.
Whether it is adding saturation to a vivid landscape or applying a unique, vintage touch to a portrait, users who want to express their creativity can experiment with different effects and settings, composing a shot, by using one of Canon’s seven Creative Filters. When the Creative Filters are applied in Live View, users can preview the filter on the vari-angle three inch LCD touch screen without having to shoot the image first. Effects such as ArtBold, Water Painting, Grainy Black and White, Soft Focus, Toy Camera, Fish-Eye and Miniature let users pick and choose how to best express their creative vision before or after the image is captured.
The EOS Rebel T5i features advanced shooting modes to take creative imaging even further. When using one of the advanced shooting modes such as Handheld Night Scene, HDR Backlight Control or Multi-Shot Noise Reduction, multiple images are taken and combined within the camera to help create the best quality image based off of the shots taken. Providing quick and easy accessibility, a new mode dial with Scene modes has been included, allowing users the flexibility to select the subject matter while the camera determines the optimal settings.
Enhanced EOS Full HD Movie Mode
The EOS Rebel T5i offers easy-to-use professional video capture. When users switch to EOS Full HD Movie mode, the EOS Rebel T5i offers the ability to shoot in 1080p Full HD video in a number of recording sizes and frame rates. With Canon’s Hybrid CMOS AF System and Movie Servo AF, the camera provides continuous AF for focus tracking of moving subjects by helping to reduce the camera’s need to “hunt”, resulting in a quick and smooth continuous AF. While shooting with one of Canon’s Stepping Motor (STM) lenses, such as the new EF-S 18-55mm f/3.5-5.6 IS STM lens, the camera will only capture the stereo sound of the scene being recorded. For added flexibility, the EOS Rebel T5i also features a built-in stereo microphone with manual audio level adjustment to enhance sound quality.
Canon is expanding the lineup of STM lenses by adding one new lens, which now gives users three choices that will allow for the capture of stunning images and video with the EOS Rebel T5i – the EF-S 18-135mm f/3.5-5.6 IS STM, the EF 40mm f/2.8 STM and the new EF-S 18-55mm f/3.5-5.6 IS STM lens. The EF-S 18-55mm f/3.5-5.6 IS STM lens offers high magnification in a compact and lightweight EF-S standard zoom lens with an optical image stabilizer for up to four equivalent stops for shake correction. When paired with the Hybrid CMOS AF, it allows for smooth and quiet, continuous AF for photo and video capturing – making it the perfect combination for preserving those once in a lifetime moments.
Availability
The EOS Rebel T5i Digital SLR camera is scheduled to be available in April for an estimated retail price of $749.99 for the body alone; $899.99 bundled with an EF-S 18-55mm f/3.5-5.6 IS STM lens kit, and $1,099.00 with the EF-S 18-135mm f/3.5-5.6 IS STM lens kit.
The new EF-S 18-55mm f/3.5-5.6 IS STM lens also is also scheduled to be available separately in April at an estimated retail price of $249.99.
Lens specifications
STM technology (EF-S 18-55mm f/3.5-5.6 IS STM)
The new EF-S 18-55mm f/3.5-5.6 IS STM features Canon’s Stepping Motor (STM) technology – providing smooth, near-silent auto focus – ideal for shooting movies or quiet situations. The STM used in the EF-S 18-55mm f/3.5-5.6 IS STM is a lead screw type, which is quieter and smoother compared to the more compact gear type mechanism.
The STM technology works by using two guide bars that are fixed at both ends of the lens’ moveable lens group. When zooming, the focus lens barrel travels in the direction of the optic axis, along the two guide bars, which help to minimise the load on the lens barrel. The Stepping Motor is connected to rack on the lens barrel through a precision lead screw, which then rotates to create the driving force to move the barrel along the optic axis.
Non-rotating front element (EF-S 18-55mm f/3.5-5.6 IS STM)
The EF-S 18-55mm f/3.5-5.6 IS STM features a new non rotating front element ideal for using filters. The lens has been engineered so that the front element does not rotate when users adjust the focus. As a result, any filters applied to the front of the lens remain in a static position, even when the focus ring is adjusted, therefore removing the need to readjust the filter position during shooting – perfect for use with polarising filters.
| Principal specifications | |
| Lens type | Zoom lens |
| Max Format size | APS-C / DX |
| Focal length | 18–55 mm |
| Image stabilisation | Yes (4 stops) |
| Lens mount | Canon EF-S |
| Aperture | |
| Maximum aperture | F3.5 – F5.6 |
| Minimum aperture | F22.0 – F38.0 |
| Number of diaphragm blades | 7 |
| Optics | |
| Elements | 13 |
| Groups | 11 |
| Focus | |
| Minimum focus | 0.25 m (9.84″) |
| Maximum magnification | 0.36 x |
| Autofocus | Yes |
| Motor type | Stepper motor |
| Full time manual | Yes |
| Focus method | Internal |
| Distance scale | No |
| DoF scale | No |
| Physical | |
| Weight | 205 g (0.45 lb) |
| Diameter | 69 mm (2.72″) |
| Length | 75 mm (2.96″) |
| Materials | Plastic barrel, plastic mount |
| Sealing | No |
| Colour | Black |
| Zoom method | Push/Pull (extending) |
| Power zoom | No |
| Zoom lock | No |
| Filter thread | 58 mm |
| Filter notes | Does not rotate on focusing |
| Hood supplied | No |
| Hood product code | EW-63C |
| Tripod collar | No |
Pre announcement info/rumours
2013 March
20th The full list of announcements for Friday is said to be:
Canon PowerShot SX280 HS
Canon PowerShot SX270 HS
Canon PowerShot A2500 (already announced in some countries)
Canon PowerShot IXUS 255 HS (already announced in Japan)
Canon EF-s 18-55 mm f/3.5-5.6 IS STM lens
Canon EOS 700D 18 – 55 KIT STM aka Kiss X7i
Canon EOS 700D 18 – 135 KIT STM
Canon EOS 100D 18 – 55 KIT STM aka Kiss X7
Canon EOS 100D
19th The variety of model names associated with current rumours still leave it a bit unclear as to whether we will see a 700D this week, however these specs have been suggested, along with a new 18-55 STM lens
Via DCI
2012 December
27th A suggested ‘roadmap’ (see general rumours page) suggests 3 DSLRs and several lenses for 2013 – product age would suggest both a 7D2 and 70D, whilst the 650D will be a year old by June. Shortages of the 60D and the need to position any 70D well ahead of a new Rebel (aka 700D) would suggest the 70D first.
22nd In Japan, Impress magazine comes up with suggestions that we will see smaller DSLRs next year from Canon.
We’ve also heard nothing suggesting any imminent 700D – Since it’s not 6 months old, anything before mid 2013 would be unusual.
September
23rd An updated sensor design for the whole 7 series (7/70/700) is suggested for next year – details on the 3D page.
July
30th The 650D sensor is likely the one in the first EOS M camera
This makes for an even bigger pile-up of 18MP cameras, with the 60D and 7D showing their age – see the timelinesbelow
June
8th Canon 650D/T4i launched
Will the 650D be an 18 month or 12 month camera?
March
30th Canon UK ‘cashback‘ until 5th June, covering 550D and 600D
2012 February
10th The 650D not announced at the CP+ show
2011 February
7th The 600D is announced pretty much exactly a year after the 550D
| 750D/760D / Rebel T6i | 6th Feb 2015 |
| 700D / Rebel T5i | 21 Mar. 2013 |
| 650D / Rebel T4i | 8 Jun. 2012 |
| 600D / Rebel T3i | 7 Feb. 2011 |
| 550D / Rebel T2i | 8 Feb. 2010 |
| 500D / Rebel T1i | 25 March 2009 |
| 450D / Rebel XSi | 23 Jan. 2008 |
| 400D / Rebel XTi | 24 Aug. 2006 |
| 350D / Rebel XT | 17 Feb. 2005 |
| 300D / Rebel | 20 Aug. 2003 |
650D/T4i Specifications
| Price | |
| MSRP | $849.99/€899 body only, $949.99/€999 with 18-55mm IS II, $1199/€1,249 with 18-135mm IS STM |
| Body type | |
| Body type | Compact SLR |
| Body material | Stainless Steel and polycarbonate resin with glass fibre |
| Sensor | |
| Max resolution | 5184 x 3456 |
| Other resolutions | 5184 x 2912, 4608 x 3456,3456 x 3456, 3456 x 2304, 3456 x 1944, 3072 x 2304, 2592 x 1728, 2592 x 1456, 2304 x 1728, 2304 x 2304, 1920 x 1280, 1920 x 1080, 1728 x 1728, 1696 x 1280, 1280 x 1280, 720 x 480, 720 x 400, 640 x 480, 480 x 480 |
| Image ratio w:h | 1:1, 4:3, 3:2, 16:9 |
| Effective pixels | 18.0 megapixels |
| Sensor photo detectors | 18.5 megapixels |
| Sensor size | APS-C (22.3 x 14.9 mm) |
| Sensor type | CMOS |
| Processor | Digic 5 |
| Color space | sRGB,Adobe RGB |
| Color filter array | RGB Color Filter Array |
| Image | |
| ISO | Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (25600 with boost) |
| White balance presets | 6 |
| Custom white balance | Yes (1) |
| Image stabilization | No |
| Uncompressed format | RAW |
| JPEG quality levels | Fine, Normal |
| File format | JPEG: Fine, Normal (Exif 2.3 compliant) Design rule for Camera File system (2.0), RAW: 14bit RAW, M-RAW, S-RAW Digital Print Order Format [DPOF] Version 1.1 compliant |
| Optics & Focus | |
| Autofocus | Contrast Detect (sensor) Phase Detect Multi-area Selective single-point Single Continuous Face Detection Live View |
| Autofocus assist lamp | by optional dedicated Speedlite |
| Digital zoom | No |
| Manual focus | Yes |
| Number of focus points | 9 |
| Lens mount | Canon EF/EF-S mount |
| Focal length multiplier | 1.6× |
| Screen / viewfinder | |
| Articulated LCD | Fully articulated |
| Screen size | 3″ |
| Screen dots | 1,040,000 |
| Touch screen | Yes |
| Screen type | Clear View II TFT LCD |
| Live view | Yes |
| Viewfinder type | Optical (pentamirror) |
| Viewfinder coverage | 95 % |
| Viewfinder magnification | 0.85× |
| Photography features | |
| Minimum shutter speed | 30 sec |
| Maximum shutter speed | 1/4000 sec |
| Exposure modes | Program AE Shutter priority AE Aperture priority AE Manual Scene Intelligent Auto No Flash Creative Auto Portrait Landscape Close-up Sports Night Portrait Handheld Night Scene HDR Backlight Control |
| Built-in flash | Yes (Pop-up) |
| Flash range | 13 m |
| External flash | Yes (Hot-shoe, Wireless plus Sync connector) |
| Flash modes | Auto, On, Off, Red-eye |
| Flash X sync speed | 1/200 sec |
| Drive modes | Single Continuous Self timer (2s, 10s+remote, 10s + continuous shots 2-10) |
| Continuous drive | Yes (5 fps) |
| Self-timer | Yes (2s, 10s+remote, 10s + continuous shots 2-10)) |
| Metering modes | Multi Center-weighted Spot Partial |
| Exposure compensation | ±5 EV (at 1/3 EV, 1/2 EV steps) |
| AE Bracketing | ±2 (3 frames at 1/3 EV, 1/2 EV steps) |
| WB Bracketing | Yes (3 frames in either blue/amber or magenta/green axis) |
| Videography features | |
| Format | H.264 Motion JPEG |
| Microphone | Stereo |
| Speaker | Mono |
| Resolutions | 1080p: 1920 x 1080 pixels at 30fps (actually 29.97fps) 1080p: 1920 x 1080 pixels at 25fps 1080p: 1920 x 1080 pixels at 24fps (actually 23.976fps) 720p: 1280 x 720 pixels at 60fps (actually 59.94fps) 720p: 1280 x 720 pixels at 50fps SD: 640 x 480 pixels at 30fps (actually 29.97fps) SD: 640 x 480 pixels at 25fps |
| Storage | |
| Storage types | SD/SDHC/SDXC |
| Storage included | None |
| Connectivity | |
| USB | USB 2.0 (480 Mbit/sec) |
| HDMI | Yes (HDMI mini) |
| Wireless | EyeFi |
| Remote control | Yes (E3 connector, InfraRed) |
| Physical | |
| Environmentally sealed | No |
| Battery | Battery Pack |
| Battery description | Lithium-Ion LP-E8 rechargeable battery & charger |
| Battery Life (CIPA) | 440 |
| Weight (inc. batteries) | 575 g (1.27 lb / 20.28 oz) |
| Dimensions | 133 x 100 x 79 mm (5.24 x 3.94 x 3.11″) |
| Other features | |
| Orientation sensor | Yes |
| Timelapse recording | Yes (by USB cable and PC) |
| GPS | None |
600D / T3i Specs
| List price (US) | Body only: $tbc Body+18-55 IS II Kit: $900 |
|---|---|
| List price (EU) | Body only: €tbc Body+18-55 IS II Kit: €tbc |
| List price (UK) | Body only: £679 Body+18-55 IS II Kit: £769 |
| Body material | Stainless Steel and polycarbonate resin with glass fiber |
| Sensor | 18.7 million effective pixels 18.0 million total pixels 22.3 x 14.9 mm CMOS sensor RGB Color Filter Array Built-in low-pass filter with self cleaning unit 3:2 aspect ratio |
| Dust reduction | Low-pass filter vibration at power-on (can be interrupted) Anti-static coating on sensor surfaces Software based dust-removal (camera maps dust, removed later) |
| Image sizes * | RAW 5184 x 3456 JPEG 3:2 5184 x 3456 3456 x 2304 2592 x 1728 1920 x 1280 * 720 x 480 * 4:3 * 4608 x 3456 3072 x 2304 2304 x 1728 1696 x 1280 640 x 480 16:9 * 5184 x 2912 3456 x 1944 2592 x 1456 1920 x 1080 720 x 400 1:1 * 3456 x 3456 2304 x 2304 1728 x 1728 1280×1280 480 x 480 |
| Still image formats | RAW (.CR2 14-bit) RAW (.CR2 14-bit) + JPEG Large / Fine JPEG (EXIF 2.3) * – Fine, Normal |
| Movie recording * | 1920 x 1080 (1080p, 16:9) @ 30/25/24 fps 1280 x 720 (720p, 16:9) @ 60/50 fps 640 x 480 (4:3) @ 60/50 fps Quicktime MOV format (H.264 compression, linear PCM audio) Up to 29 min 59 sec (or max file size 4 GB) |
| Image processor | DIGIC 4 |
| Lenses | Canon EF / EF-S lens mount 1.6x field of view crop |
| Focus modes | Auto Focus Manual Focus (switch on lens) |
| Auto Focus | 9-point CMOS sensor F5.6 cross-type at center, extra sensitivity at F2.8 AF working range: -0.5 to 18 EV (at 23°C, ISO 100) Predictive AF up to 8m |
| AF modes | AI Focus One Shot AI Servo |
| AF point selection | Auto Manual |
| AF assist | Flash strobe |
| Shooting modes | Scene Intelligent Auto Flash off Creative Auto Portrait Landscape Close-up Sports Night portrait Movie Program AE (P) Shutter priority AE (Tv) Aperture priority AE (Av) Manual (M) Auto depth-of-field |
| Metering | TTL 63-zone SPC Metering range: EV 1.0 – 20 EV (at 23°C, ISO 100, 50 mm F1.4) |
| Metering modes | Evaluative 63-zone (linked to AF points) Partial 9% at center Spot 4% at center Center-weighted average |
| AE Lock | AE lock button |
| AE Bracketing | +/- 2.0 EV (3 shots) 0.5 or 0.3 EV increments |
| Exposure compen. | +/- 5.0 EV 0.5 or 0.3 EV increments |
| Sensitivity | Auto (100 – 6400) ISO 100 ISO 200 ISO 400 ISO 800 ISO 1600 ISO 3200 ISO 6400 H1 expansion (ISO 12800 equiv.) Highlight tone priority |
| Shutter | Focal-plane shutter 30 – 1/4000 sec (0.5 or 0.3 EV steps) Flash X-Sync: 1/200 sec Bulb |
| Aperture values | F1.0 – F91 (0.3 EV steps) Actual aperture range depends on lens used |
| White balance | Auto Daylight Shade Cloudy Tungsten Fluorescent Flash Custom |
| WB Bracketing | +/-3 levels 3 images Selectable Blue/Amber or Magenta/Green bias |
| WB fine-tuning | Blue (-9) to Amber (+9) Magenta (-9) to Green (+9) |
| Color space | sRGB Adobe RGB |
| Picture style | Standard Portrait Landscape Neutral Faithful Monochrome User 1 User 2 User 3 |
| Custom image parameters | Sharpness: 0 to 7 Contrast: -4 to +4 Saturation: -4 to +4 Color tone: -4 to +4 B&W filter: N, Ye, Or, R, G B&W tone: N, S, B, P, G |
| Image processing | Highlight Tone Priority Auto Lighting Optimizer – 4 settings Long exposure noise reduction High ISO speed noise reduction Peripheral illumination correction Basic+ (Shoot by ambience selection, Shoot by lighting or scene type) * Creative filters (Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye) – during image Playback only * |
| Drive modes | Single Continuous: 3.7 fps up to 34 Large/Fine JPEG / 6 RAW frames Self-timer 10 secs (2 sec with mirror lock-up) Self-timer continuous |
| Mirror lockup | Yes (custom function) |
| Viewfinder | Pentamirror 95% frame coverage Magnification: 0.85x (-1 diopter with 50 mm lens at infinity) Eyepoint: 19 mm Dioptric adjustment: -3.0 to +1.0 diopter Fixed precision matte |
| Viewfinder info | AF information (AF points focus confirmation light) Shutter speed Aperture value ISO speed (always displayed) AE lock Exposure level/compensation Spot metering circle Exposure warning AEB Flash ready High-speed sync FE lock Flash exposure compensation Red-eye reduction light White balance correction SD card information Monochrome shooting Maximum burst Highlight tone priority |
| DOF preview | Yes, button |
| LCD monitor * | Vari-angle 3.0″ 3:2 TFT LCD * 1,040,000 dots Approx 100% coverage Wide viewing angle (170° horizontal and vertical) Dual anti-reflection, anti-smudge 7 brightness levels Up to 10x zoom playback |
| LCD Live view | Live TTL display of scene from CMOS image sensor Approx 99% frame coverage (30 fps display rate) Real-time evaluative metering using CMOS image sensor Grid optional (thirds) Live Histogram optional Magnify optional (5x or 10x at any point on the screen) Quick or Live mode autofocus |
| Record review | Uses last play mode Magnification possible 2 / 4 / 8 sec / Hold |
| Flash * | Auto pop-up E-TTL II auto flash Guide number approx 13 Modes: Auto, Manual Flash On/ Off, Red-Eye Reduction Integrated Speedlite Transmitter, wireless multi-flash support * X-Sync: 1/200 sec Flash exposure compensation: +/-2.0 EV (0.3 or 0.5 EV steps) Coverage up to 17 mm focal length (27 mm FOV equiv.) |
| External flash | E-TTL II auto flash with EX-series Speedlites Hot-shoe |
| Other features | Orientation sensor In-camera copyright information Image rating (0-5 stars) * Automatically writes FAT16/FAT32 depending on capacity |
| Auto rotation | On (playback uses orientation data in file header) Off |
| Playback mode | Single image Single image with info (histogram brightness / RGB ) Magnified view (1.5 – 10x in 15 steps, browsable) 4 and 9 image index Auto play Image rotation Jump (by 10, 100 or date) |
| Custom functions * | 11 custom functions with 34 settings |
| Menu languages * | English German French Dutch Danish Portuguese Finnish Italian Norwegian Swedish Spanish Greek Russian Polish Czech Hungarian Romanian Ukrainian Turkish Arabic Thai Simplified Chinese Traditional Chinese Korean Japanese |
| Firmware | User upgradable |
| Connectivity | USB 2.0 (Hi-Speed) Video out (PAL / NTSC) (integrated with USB terminal) HDMI mini output (HDMI-CEC) E3 type wired remote control Remote Controller RC-6 External microphone (3.5mm Stereo mini jack |
| Audio | Mono microphone on front Mono speaker on rear External stereo mike (optional) |
| Storage | SD / SDHC /SDXC cards |
| Power | Lithium-Ion LP-E8 rechargeable battery Approx 440 shots (23°C AE 50%, FE 50%), CIPA standard 4 level battery life display Optional ACK-E8 AC adapter kit |
| Battery Grip | Yes, BG-E8 |
| Direct printing | Canon Selphy Printers Canon Bubble Jet Printers with direct print function Canon PIXMA Printers supporting PictBridge PictBridge |
| Dimensions * | 133.1 x 99.5 x 79.7 mm (5.2 x 3.9 x 3.1 in) |
| Weight (inc batt/card) * | 570 g (1.26 lb) |
| Software | Zoom Browser EX / ImageBrowser Digital Photo Professional (Windows / Mac) PhotoStitch EOS Utility (inc. Remote Capture; Windows & Mac except Mac Intel) Picture Style Editor |
