Canon EOS 100D

100D / SL1 information, updates, and reviews





A new smaller DSLR model – we’ll update this page with new camera info as we find it.

Interesting move by Canon to target mirrorless and CSC cameras. We also have info on the new 700D announced at the same time.

In 2014 Keith purchased a 100D as a small backup camera, and will be writing up some articles related to exploring its use.

sl1 100d camera

Main specifications

  • 18.0MP APS-C CMOS Sensor
  • DIGIC 5 Image Processor
  • 3.0″ Clear View II Touchscreen LCD
  • ISO 100-12800, Expandable to 25600
  • Full HD 1080 Video with Continuous AF
  • 4.0 fps Continuous Shooting
  • 9-Point All Cross-Type AF System
  • Scene Intelligent Auto Mode
  • Compact and Lightweight; Weighs 0.8lb
  • Compatible with Canon EF and EF-S Lenses

100D Technical info

Sample Images

Reviews/previews/comments

> indicates latest additions to list

Latest EOS 100D / EOS SL1 / Kiss X7 Information

2014 April

16th The white version of the 100D and a white 18-55 STM lens is now to be available more widely – Just announced for the UK.
“The EOS 100D White will be available from May 2014 with an SRP of £499/€599”

March

18th An underwater housing for the 100D [DPG]

January

17th Another quick test of the 100D, with a Zeiss 135/3.5 M42 lens
12th Two articles from Keith’s initial tests of the 100D

– Macro photography with a 100D
– The 100D and the Photosniper (300mm f4.5 lens)

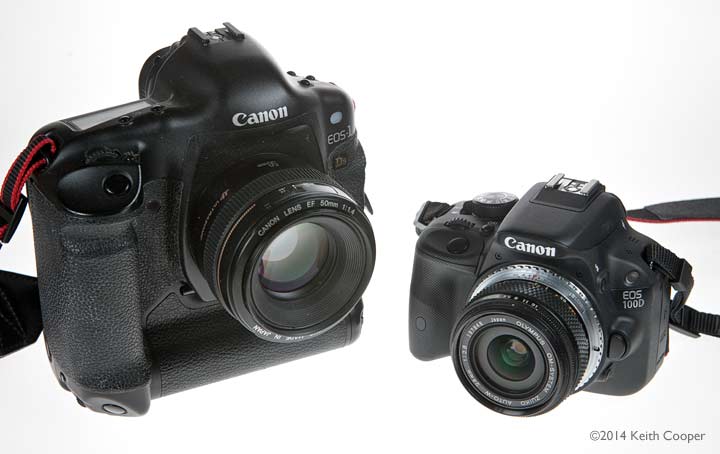

9th Compare the size of Keith’s old 1Ds with an EF 50/1.4 lens and the 100D with a Zuiko 24/2.8 lens

Comparison of size between Canon 100D and 1Ds

2013 November

14th White Kiss 7 launched in Japan [Canon Japan – Goog xlt]
All specs are the same. White versions of EF40 and 18-55 STM
white Canon Kiss 7 / SL1 / 100D
13th A white version of the Kiss X7 is on its way [DCI – Google xlt]

August

8th In the US, rebates on the 6D and 100D (SL1) have been extended though to the end of August

rebate deals - us

July

26th Detailed review at DPR
Conclusion – Pros

Very small and light with good grip for small to medium-size hands
High ISO shots are quite usable, even above ISO 6400
Excellent LCD and responsive touchscreen
Special coating minimizes fingerprint smudges from touchscreen use
Hybrid AF II / STM lens combo is noticeably improved for live view and movie shooting
Useful night modes
Chromatic aberration correction works well
Stereo mic jack
Full HD video recording

Conclusion – Cons

May be too small for those with larger hands
Grip may be insufficient for use with larger lenses
AF illuminator integrated into flash (must have flash engaged to use it)
Flash produces red-eye in Night portrait mode
Non-STM lenses struggle in live view and in movie servo AF
Default dynamic range lags behind its peers

May

4th Cameras shipping – review at B&H

April

9th Sample images and manual download added above.

March

24th More updates added, but expect a lot of rehashing of press info for the time being ;-)
21st In the US, Canon continues it’s naming system for smaller SLRs. This one being called an ‘SL1’
This page will be updated as we find more information.

Specifications for 100D

Price
MSRP$799.99/£799 with 18-55mm STM
Body type
Body typeCompact SLR
Body materialAluminium alloy and polycarbonate resin with carbon and glass fiber
Sensor
Max resolution5184 x 3456
Other resolutions5184 x 2912, 4608 x 3456,3456 x 3456, 3456 x 2304, 3456 x 1944, 3072 x 2304, 2592 x 1728, 2592 x 1456, 2304 x 1728, 2304 x 2304, 1920 x 1280, 1920 x 1080, 1728 x 1728, 1696 x 1280, 1280 x 1280, 720 x 480, 720 x 400, 640 x 480, 480 x 480
Image ratio w:h1:1, 4:3, 3:2, 16:9
Effective pixels18.0 megapixels
Sensor photo detectors18.5 megapixels
Sensor sizeAPS-C (22.3 x 14.9 mm)
Sensor typeCMOS
Color spacesRGB, Adobe RGB
Color filter arrayRGB Color Filter Array
ISOAuto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (25600 with boost)
White balance presets6
Custom white balanceYes (1)
Image stabilizationUnknown
Uncompressed formatRAW
File formatJPEG: Fine, Normal (Exif 2.3 compliant)
Design rule for Camera File system (2.0),
RAW: 14bit RAW
Digital Print Order Format [DPOF] Version 1.1 compliant
Optics & Focus
AutofocusContrast Detect (sensor)
Phase Detect
Multi-area
Selective single-point
Single
Continuous
Face Detection
Live View
Autofocus assist lampby built-in flash
Manual focusYes
Lens mountCanon EF/EF-S mount
Screen / viewfinder
Articulated LCDFixed
Screen size3″
Screen dots1,040,000
Touch screenYes
Live viewYes
Viewfinder typeOptical (pentamirror)
Viewfinder coverage95 %
Viewfinder magnification0.87×
Photography features
Minimum shutter speed30 sec
Maximum shutter speed1/4000 sec
Exposure modesProgram AE
Shutter priority AE
Aperture priority AE
Manual (Stills and Movie)
Scene Intelligent Auto (Stills and Movie)
No Flash
Creative Auto
Portrait
Landscape
Close-up
Sports
SCN
Scene modesKids
Food
Candlelight
Night Portrait
Handheld Night Scene
HDR Backlight Control
Built-in flashYes (Pop-up)
Flash range9.4 m
External flashYes (via Hot-shoe)
Flash modesAuto, On, Off, Red-eye
Flash X sync speed1/200 sec
Drive modesSingle
Continuous
Self timer (2s, 10s+remote, 10s + continuous shots 2-10)
Continuous driveYes (4 fps)
Self-timerYes (2s, 10s+remote, 10s + continuous shots 2-10))
Metering modesMulti
Center-weighted
Spot
Partial
Exposure compensation±5 (at 1/3 EV, 1/2 EV steps)
AE Bracketing±2 (3 frames at 1/3 EV, 1/2 EV steps)
WB BracketingYes (3 frames in either blue/amber or magenta/green axis)
Videography features
FormatH.264
Motion JPEG
MicrophoneMono
SpeakerMono
Resolutions1920 x 1080 (30, 25, 24 fps), 1280 x 720 (60, 50 fps), 640 x 480 (30, 25 fps)
Storage
Storage typesSD/SDHC/SDXC
Connectivity
USBUSB 2.0 (480 Mbit/sec)
HDMIYes (HDMI mini)
WirelessEye-Fi Connected
Remote controlYes (RC-6)
Physical
BatteryBattery Pack
Battery descriptionLithium-Ion LP-E12 rechargeable battery & charger
Battery Life (CIPA)380
Weight (inc. batteries)407 g (0.90 lb / 14.36 oz)
Dimensions117 x 91 x 69 mm (4.61 x 3.58 x 2.72″)
Other features
Orientation sensorYes
GPSOptional
GPS notesvia GPE2
Sensor technology

APS-C Hybrid CMOS AF II Sensor (EOS 100D)

Designed and manufactured by Canon to work in combination with its own DIGIC image processors, Canon’s CMOS technology integrates advanced noise reduction circuitry at each pixel site, delivering virtually noise-free images. In comparison with CCD technology, the lower power consumption characteristics of Canon’s CMOS sensors also contribute to longer battery life.

The EOS 100D features a new Hybrid CMOS AF II Sensor that uses a combination of phase detection pixels located on the sensor, along with contrast AF to acquire swift and accurate focus. Compared to Hybrid CMOS AF, the new Hybrid AF II Sensor has phase detection pixels over a larger proportion of the sensor’s area – approximately 80% of the height and width. As a result, the EOS 100D is able to quickly achieve focus across the entire scene – both in stills and Full HD movies.

SL1 Press Info (US)

MELVILLE, N.Y., March 21, 2013 – Continuing the quest to deliver superb product innovations, Canon U.S.A., Inc., a leader in digital imaging solutions, today announced the world’s smallest and lightest DSLR* camera: the EOS Rebel SL1 Digital SLR Camera. It features a newly developed 18.0-megapixel CMOS (APS-C) sensor and high-performance DIGIC 5 Image Processor for exceptional image quality and speed. With its combination of lightweight size, ease of use and outstanding image quality, the EOS Rebel SL1 is perfect for users looking for the ideal camera to bring sightseeing on vacation or to capture the everyday.

“The EOS Rebel SL1 Digital SLR Camera represents a new era in DSLR versatility: ultra-portable, full-featured DSLR cameras,” said Yuichi Ishizuka, executive vice president and general manager, Imaging Technologies & Communications Group, Canon U.S.A. “The EOS Rebel SL1 combines the high speed, high image quality and expanded shooting range of a DSLR camera, with the easy and fun usability of a point-and-shoot camera.”

Advanced Image Quality in a Compact Body

As the world’s smallest and lightest DSLR, the new camera body is 4.6″ (w) x 3.57″ (h) x 2.74″ (d), and weighs only 14.36 oz.** In comparison, the EOS Rebel SL1 is approximately 25 percent smaller and 28 percent lighter than the EOS Rebel T4i digital camera.

comparison of camera sizes

The EOS Rebel SL1 features an 18 megapixel CMOS (APS-C) sensor that performs exceptionally well in both bright and dimly lit shooting environments with an ISO range of 100-12800 (expandable to H: 25600) for photos and ISO-6400 (expandable to H: 12800) for video. Canon’s DIGIC 5 Image Processor technology allows for exceptional image quality and shooting speed up to four frames per second (fps).

The camera includes a new nine-point center cross-type autofocus (AF) system to help achieve fast, sharp focus. The new AF system also includes a new Hybrid CMOS AF II sensor, which provides a wider focus area when shooting photos or video in Live View mode, and a continuous AF speed that’s increased from previous EOS models.

To help capture video with ease, the EOS Rebel SL1 features Canon’s Movie Servo AF, which provides continuous AF tracking of moving subjects. When shooting video with one of Canon’s new STM lenses, such as the EF-S 18-55mm f/3.5-5.6 IS STM (available in the standard lens kit), Movie Servo AF takes advantage of the lens’ stepping motor for smooth and quiet continuous AF. The camera is capable of Full HD shooting in a number of recording sizes and frame rates, and enables easy manual control of exposure, focus and Live View features. The combination of Canon’s new Hybrid CMOS AF system II and EF-S 18-55mm f/3.5-5.6 IS STM lens is ideal for shooting video helping to ensure only the sounds of the scene are recorded.

Allowing for clear and easy viewing even in bright environments, the Touch Screen three inch Clear View LCD monitor II provides a rich and expansive display as well as providing intuitive touch panel operation. Two finger touch gestures (multi-touch) can be easily used for zooming or changing images, accessing menu and quick control settings, and activating focus point and shutter release while shooting.

rebel sl1 - eos100dCreativity at your Fingertips

The EOS Rebel SL1 encourages users to explore their creative side with a wide array of features for convenience and simple shooting. The EOS Rebel SL1 is equipped with Scene Intelligent Auto Mode, an advanced function that detects faces, colors, brightness, movement, contrast, distance and other factors and automatically adjusts and selects the exposure method needed. The results are photos with a wide dynamic range, ideal for users without advanced photography knowledge or experience.

Users can also access advanced imaging features like the new Effect Shot mode, which automatically creates two different shots, one with a selected creative filter and one without. In addition, Creative Filters and Background Blur Simulation can now be displayed in real time during Live View shooting. Editing photos is also a snap with the Rebel SL1’s in-camera editing and cropping functionality. This feature allows users to view and crop the image using the camera’s LCD touch screen and save the edited version as a separate file.

For those who would like to take beautiful photos with ease, the EOS Rebel SL1 offers a variety of scene modes to explore. New special scene modes include Kids, Food and Candlelight, giving users advanced presets to help ensure the best possible photos even under difficult shooting conditions.

Pricing and Availability

The new EOS Rebel SL1 Digital SLR Camera is scheduled to be available in April for an estimated retail price of $649.99 for the body alone or $799.99 bundled with the new EF-S 18-55mm f/3.5-5.6 IS STM kit lens.

Image via Canonwatch

UK Press Info (700D and 100D)

Canon unveils the smallest and lightest DSLR ever made, the EOS 100D, alongside the EOS 700D to let your creativity grow

EOS 700D
EOS 100D – [our 100D info page]
EF-S 18-55mm f/3.5-5.6 IS STM

United Kingdom, Republic of Ireland, 21 March 2013 – Canon today unveils two new first-class additions to its entry-level consumer DSLR line-up – the EOS 700D and the smallest and lightest APS-C DSLR ever made[i] the EOS 100D. Complemented by the introduction of a new standard zoom lens, the EF-S 18-55mm f/3.5-5.6 IS STM.

The EOS 100D offers a range of simple controls and a helpful in-camera feature guide, perfect for those looking to explore the world of DSLR photography for the first time but without the bulk normally associated with a DSLR. The EOS 700D is Canon’s most advanced consumer EOS model to date. Boasting 5fps shooting, a wide 9-point all cross type AF system and Vari-angle Clear View II LCD touch screen, it is the ideal camera for those wanting to develop their photography skills further. Both new models offer outstanding 18 Megapixel (MP) resolution with simple touch screen operation, making it easy to capture and relive every moment in stunning detail, whatever your skill level

The new EF-S 18-55mm f/3.5-5.6 IS STM is the ideal standard zoom lens for both new EOS cameras, combining Canon’s leading Optical Image Stabilizer and Stepping Motor (STM) technologies to deliver minimal image blur and smooth, near-silent focus in movies.

The EOS 100D – a DSLR you’ll never want to leave behind

The EOS 100D is the smallest and lightest APS-C DSLR in its class[ii] making it compact enough to take everywhere so you can capture adventures in stunning quality. Measuring just 116.8 x 90.7 x 69.4mm and weighing only 407g, the incredibly lightweight and compact body also features a bright Optical Viewfinder – giving users the full, responsive experience of a DSLR in a compact form. The EOS 100D also features a large 7.7cm (3.0”) ClearView II Capacitive Touch screen – making it easy to adjust settings and instantly review shots after capture.

At the EOS 100D’s heart is a new 18 MP APS-C Hybrid CMOS AF II Sensor, which combines with the power of the DIGIC 5 image processor to deliver stunning results in virtually any situation. The new sensor uses phase detection pixels spread across 80 per cent of the sensor’s imaging surface to provide increased AF speed and tracking performance when the camera is in live view or when capturing Full-HD movies. Capable of shooting at speeds of up to 4fps, the EOS 100D makes it easy for beginners to capture a range of high quality images, be it of special moments with family and friends or fast-paced action on holiday.

The EOS 700D – let your creativity grow

The EOS 700D is powered by a Canon-designed and manufactured 18.0MP APS-C Hybrid CMOS sensor and DIGIC 5 image processor, which deliver outstanding levels of resolution – producing images that are consistently rich in detail and colour. Offering up to 5fps shooting, the EOS 700D is ideal for capturing a range of subjects, from fast paced action to stunning skylines, or beautiful portraits of family and friends. Additionally with a native 100-12,800 ISO range, the EOS 700D is capable of catching remarkable levels of detail even when shooting in tricky low light conditions.

The EOS 700D’s advanced AF System consists of 9 high performance, cross-type points spread across the frame, delivering greater focussing speed and accuracy to ensure photographers can always keep desired subjects in focus, even as they move around. With the option to manually select and adjust focus points, or simply use full automatic mode, the EOS 700D provides aspiring photographers with an easy way to explore different kinds of image composition as their confidence grows.

The EOS 700D features a new, simplified 360° rotating mode dial to provide easy and swift access to the camera’s various shooting modes. A 7.7cm (3.0”) Vari-angle Clear View LCD II Touch screen also makes it easy for users to adjust settings as well as frame, shoot and review from a variety of angles. A new external coating, adopted from Canon’s mid-range EOS models, also provides a more robust and durable finish.

Enhanced creative modes

Both the EOS 700D and EOS 100D feature a range of super easy-to-use shooting modes and creative filters – making it simple for beginners to start with creative pre-sets and then explore their creativity as their confidence grows. Scene Intelligent Auto mode automatically detects the scene being shot and selects best settings so users can simply focus on the image, letting the camera decide the best combination of settings for the scene. Both new models also offer a range of dedicated scene modes, with the
EOS 100D featuring new Kids, Food and Candlelight modes, designed to ensure optimum results with stunning detail in a range of familiar situations.

Canon’s exciting range of Creative Filters, including Fish-eye and Miniature effect, can now be applied before capture thanks to new real-time filter previews – providing the perfect way to pick the most suitable effect for specific moments before you actually take the shot. Photographers can also learn how to adjust their images with enhanced Creative Auto Mode, and using new Extra Effect Shot mode on the EOS 100D, users can even capture two images simultaneously – one with a Creative Filter applied, as well as one standard image.

Explore videography with EOS Movies

Aspiring photographers can add another dimension to capturing their memories, using EOS Movies to shoot their precious moments in glorious Full HD resolution (1920x1080p). Hybrid AF II[iii] always keeps the stars of the movie in focus, with continuous AF constantly tracking subjects during shooting. Additionally, Video Snapshot mode makes it easy to capture and edit short video clips to bring to life an exciting day, such as road trips and weddings.

EF-S 18-55mm f/3.5-5.6 IS STM – A standard STM zoom lens, for everyday photos and video

The new EF-S 18-55mm f/3.5-5.6 IS STM is the perfect lens for EOS 700D and EOS 100D users to start their photography adventure. From sweeping landscapes to portraits, the versatile 18-55mm zoom range means users can enjoy the flexibility of getting close to subjects or getting more in the shot. Images are captured with precision detail and clarity thanks to a 4-stop Optical Image Stabilizer, which also lets photographers use lower ISO levels and longer shutter speeds. The full time manual focus ring allows users to make precise focus adjustments, while the near-silent STM technology also ensures noise is kept to a minimum whilst focusing – perfect for when capturing movies.

EOS 100D – key features:

· 18.0 Megapixel Hybrid CMOS AF II sensor
· Compact, portable design
· Simple shooting with Scene Intelligent Auto
· Optical viewfinder and large touch screen
· Full-HD movies with Hybrid CMOS AF II
· Creative Filters and Extra Effect Shot
· Built-in Feature Guide
· EOS System of lenses and accessories

EOS 700D – key features:

· 18.0 Megapixel Hybrid CMOS AF sensor
· Creative Full-HD movies and Hybrid CMOS AF
· Vari-angle Clear View LCD II Touch screen
· Scene Intelligent Auto
· ISO 100-12800 sensitivity, extends to ISO 25600
· 5 fps shooting 9-point AF system
· Range of Creative filters

· EOS System of lenses and accessories
EF-S 18-55mm f/3.5-5.6 IS STM – key features:

· Versatile focal length range
· Compact design
· Four-stop optical Image Stabilizer
· Smooth focusing with STM motor
· 0.25m closest focusing distance
· Super Spectra Coating
· Non-rotating front element
· Manual focus ring
· Circular seven-bladed aperture

Pricing and availability:

The EOS 700D is available from late April, with an SRP of:

£629.99 / €799.99 – body only
£759.99 / €969.99 – with EF-S 18-55mm f/3.5-5.6 IS STM

The EOS 100D is available from late April, with an SRP of:

£579.99 / €739.99 – body only
£709.99 / €909.99 – with EF-S 18-55mm f/3.5-5.6 IS STM

EF-S 18-55mm f/3.5-5.6 IS STM is available from late April, with an SRP of £239.99 / €299.99.

Launch promotion

Pre order or purchase a new Canon EOS 700D or EOS 100D between 21st March – 30th April and receive a Canon 300EG Gadget Bag free of charge. For more info please visit: www.canon.co.uk/bagpromotion.

Please note the promotional webpage will be live from 22nd March 2013.

[i] According to Canon research, correct as of 21 March 2013
[ii] According to Canon research, correct as of 21 March 2013
[iii] Hybrid AF II only features in the EOS 100D, EOS 700D features Hybrid AF

Pre release rumours

20th The full list of announcements for Friday is said to be:

Canon PowerShot SX280 HS
Canon PowerShot SX270 HS
Canon PowerShot A2500 (already announced in some countries
Canon PowerShot IXUS 255 HS (already announced in Japan)
Canon EF-s 18-55 mm f/3.5-5.6 IS STM lens
Canon EOS 700D 18 – 55 KIT STM aka Kiss X7i
Canon EOS 700D 18 – 135 KIT STM
Canon EOS 100D 18 – 55 KIT STM aka Kiss X7
Canon EOS 100D

19th Lots of info appears today, mostly via DCI (Google xlt)
It’s referred to as a Kiss X7 (Japanese name), which would position it interestingly against any new 700D (Kiss X7i ?)
eos-b
“Camera is called EOS-b overseas will be called EOS Kiss X7 in Japan. Kiss X7 specs are as follows.
– 18 million pixel sensor
– DIGIC5
– 1.04 million dot 3-inch wide LCD monitor
– Continuous shooting frame is 4 seconds /
– Full HD video
– 30-1/4000 seconds, seconds shutter speed sync 1/200
– ISO range is ISO25600 ISO100-12800, an extension
– AF Sensor 9-point, the central cross
– Special Scene shooting mode capable of six
– Set background blur
– Effects shots
– Hybrid CMOS AF II that have been wide-area
– Media SD / SDHC / SDXC
– The battery LP-E12
– (Body only) 370g, weight (including battery and memory card) 407g
– Late (on-sale date) in April, the launch of Kiss X7 is expected price 79 000 yen shop
– Provided with the kit lens EF-S18-55mm IS STM, the double zoom kit.”

18th Specifications (or placeholder info) for a new DSLR appear at Best Buy in the US)
100D info at best buy
Specific things to note are the small size and weight
Note that the viewfinder in only 95% coverage, but is optical.
Compare with 650D specifications further down the page

Specs:Details:
Warranty Terms – Parts1 year limited
Height3.6 inches
Width4.6 inches
Depth2.7 inches
Weight13.1 ounce
Megapixels (Effective)18.0
Image ResolutionUp to 5184 x 3456
Digital ZoomNone
Lens FeaturesEF-S 18 – 55mm f/3.5 – 5.6 IS zoom lens
Lens Focal Length(s)35mm equivalent 18 – 55mm (with included lens)
LCD Screen Size3″
LCD Screen FeaturesColor TFT-LCD touch screen
ViewfinderOptical with 95% coverage and approximately 0.87x magnification
Image StabilizationYes, optical
Face DetectionYes
Burst ModeYes
Panorama ModeNo
Image StitchingNo
Internal MemoryNone
Compatible Memory FormatsSecure Digital (SD)|Secure Digital Extended Capacity (SDXC)|Secure Digital High Capacity (SDHC)
Shutter Speeds30 – 1/4000 sec.
Aperture Rangef/3.5 – 5.6 (with included lens)
White BalanceAuto, preset (daylight, shade, cloudy, tungsten light, white fluorescent light, flash), custom white balance correction, white balance bracketing
Flash ModesAuto, flash on, flash off, red-eye reduction on/off, slow sync
External Flash MountYes
Focus Range9.8′ – infinity
Movie ModeYes
ISO EquivalentAuto, 100, 200, 400, 800, 1600, 3200, 6400, 12,800, 25,600
Camera DockNot included
Image Storage CapacityVaries
Batteries1 battery pack LP-E12 (included)
Imaging Sensor TypeCMOS
Imaging Sensor Size22.3mm x 14.9mm
TouchscreenYes
Color CategoryBlack
HD Movie ModeYes
Smile ModeNo
WaterproofNo
ColdproofNo
ShockproofNo
Product Depth2.7″
Low-Light/High SensitivityYes
Max ISO12801 and higher
Frames Per Second1 – 4
UPC013803222654

13th Suggestions that there will not be a 70D next week, but an all new ‘small’ DSLR.

The previous models of smaller DSLRs:

650D / Rebel T4i8 Jun. 2012
600D / Rebel T3i7 Feb. 2011
550D / Rebel T2i8 Feb. 2010
500D / Rebel T1i25 March 2009
450D / Rebel XSi23 Jan. 2008
400D / Rebel XTi24 Aug. 2006
350D / Rebel XT17 Feb. 2005
300D / Rebel20 Aug. 2003

See also Canon camera timeline below:

650D/T4i Specifications

Price
MSRP$849.99/€899 body only, $949.99/€999 with 18-55mm IS II, $1199/€1,249 with 18-135mm IS STM
Body type
Body typeCompact SLR
Body materialStainless Steel and polycarbonate resin with glass fibre
Sensor
Max resolution5184 x 3456
Other resolutions5184 x 2912, 4608 x 3456,3456 x 3456, 3456 x 2304, 3456 x 1944, 3072 x 2304, 2592 x 1728, 2592 x 1456, 2304 x 1728, 2304 x 2304, 1920 x 1280, 1920 x 1080, 1728 x 1728, 1696 x 1280, 1280 x 1280, 720 x 480, 720 x 400, 640 x 480, 480 x 480
Image ratio w:h1:1, 4:3, 3:2, 16:9
Effective pixels18.0 megapixels
Sensor photo detectors18.5 megapixels
Sensor sizeAPS-C (22.3 x 14.9 mm)
Sensor typeCMOS
ProcessorDigic 5
Color spacesRGB,Adobe RGB
Color filter arrayRGB Color Filter Array
ISOAuto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (25600 with boost)
White balance presets6
Custom white balanceYes (1)
Image stabilizationNo
Uncompressed formatRAW
JPEG quality levelsFine, Normal
File formatJPEG: Fine, Normal (Exif 2.3 compliant)
Design rule for Camera File system (2.0),
RAW: 14bit RAW, M-RAW, S-RAW
Digital Print Order Format [DPOF] Version 1.1 compliant
Optics & Focus
AutofocusContrast Detect (sensor)
Phase Detect
Multi-area
Selective single-point
Single
Continuous
Face Detection
Live View
Autofocus assist lampby optional dedicated Speedlite
Digital zoomNo
Manual focusYes
Number of focus points9
Lens mountCanon EF/EF-S mount
Focal length multiplier1.6×
Screen / viewfinder
Articulated LCDFully articulated
Screen size3″
Screen dots1,040,000
Touch screenYes
Screen typeClear View II TFT LCD
Live viewYes
Viewfinder typeOptical (pentamirror)
Viewfinder coverage95 %
Viewfinder magnification0.85×
Photography features
Minimum shutter speed30 sec
Maximum shutter speed1/4000 sec
Exposure modesProgram AE
Shutter priority AE
Aperture priority AE
Manual
Scene Intelligent Auto
No Flash
Creative Auto
Portrait
Landscape
Close-up
Sports
Night Portrait
Handheld Night Scene
HDR Backlight Control
Built-in flashYes (Pop-up)
Flash range13 m
External flashYes (Hot-shoe, Wireless plus Sync connector)
Flash modesAuto, On, Off, Red-eye
Flash X sync speed1/200 sec
Drive modesSingle
Continuous
Self timer (2s, 10s+remote, 10s + continuous shots 2-10)
Continuous driveYes (5 fps)
Self-timerYes (2s, 10s+remote, 10s + continuous shots 2-10))
Metering modesMulti
Center-weighted
Spot
Partial
Exposure compensation±5 EV (at 1/3 EV, 1/2 EV steps)
AE Bracketing±2 (3 frames at 1/3 EV, 1/2 EV steps)
WB BracketingYes (3 frames in either blue/amber or magenta/green axis)
Videography features
FormatH.264
Motion JPEG
MicrophoneStereo
SpeakerMono
Resolutions1080p: 1920 x 1080 pixels at 30fps (actually 29.97fps)
1080p: 1920 x 1080 pixels at 25fps
1080p: 1920 x 1080 pixels at 24fps (actually 23.976fps)
720p: 1280 x 720 pixels at 60fps (actually 59.94fps)
720p: 1280 x 720 pixels at 50fps
SD: 640 x 480 pixels at 30fps (actually 29.97fps)
SD: 640 x 480 pixels at 25fps
Storage
Storage typesSD/SDHC/SDXC
Storage includedNone
Connectivity
USBUSB 2.0 (480 Mbit/sec)
HDMIYes (HDMI mini)
WirelessEyeFi
Remote controlYes (E3 connector, InfraRed)
Physical
Environmentally sealedNo
BatteryBattery Pack
Battery descriptionLithium-Ion LP-E8 rechargeable battery & charger
Battery Life (CIPA)440
Weight (inc. batteries)575 g (1.27 lb / 20.28 oz)
Dimensions133 x 100 x 79 mm (5.24 x 3.94 x 3.11″)
Other features
Orientation sensorYes
Timelapse recordingYes (by USB cable and PC)
GPSNone
Canon camera timeline
 Crop 200020012002200320042005200620072008200920102011201220132014201520162017
      123412341234123412341234
BestFull   1Ds1Ds Mk II1Ds Mk III1D X1DX II
1.3  1D1D Mk II1D MkIIn1D Mk III1D Mk IV
video              1D C
HighFull               5Ds/5Dsr
      5D5D Mk II5D Mk III5D Mk IV
1.6          7D7D Mk II
'Better' Full              6D
1.6D30D6010D20D30D40D50D60D70D80D
Mid1.6    300D
Rebel
Kiss
350D
XT
Kiss N
400D
XTi
Kiss X
450D
XSi
X2
500D
T1i
X3
550D
T2i
X4
600D
T3i
X5
650D
T4i
X6i
700D
T5i
X7i
750/760D
T6i/s
X8i

Micro1.6             100D SL1 X7
Entry1.6         1000D / XS / F1100D / T3 / X501200D T5 X701300D T6
Mirror
-less
1.6               M5
              MM2M3
               M10

Note: dates start in announcement quarter, not shipping dates.

Video capable 4k | Digic | Digic 2 | Digic 3 dual | Digic 4 dual | Digic 5 dual | Digic 6 dual | Digic 7 dual
