Archived Rumours and News about Canon Lenses (includes other interesting lens information such as patents). The chronology, filter sizes and date codes articles below are on our EFLens.com site.
December 28th CN-E 70-200 T2.8 patent for a new cine lens [EG-Goog xlt]

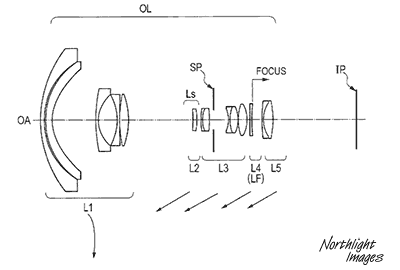

27th A patent for an EF-S ~10-18 f4.5-5.6 has appeared in the US [USPTO].
This was first seen from Japan back in September (21st below)
Have a read if you want to see far more about lens specifications and design than you probably need…

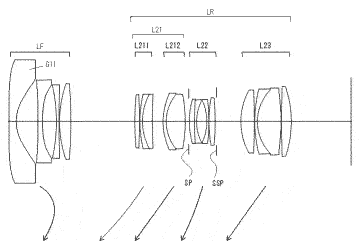

Another patent [USPTO] shows a 16-35mm f/2.8 design that was first shown below (Japanese version) on May 22nd
One more …that first appeared in July [USPTO]
EF 24-105 f3.5-5.6 or EF-S 15-105 f2.8-5.6
26th In Japan, Tokina announce a 14-20 f2 lens for APS-C (AT-X 14-20 F2 PRO DX)
[Tk-Goog xlt] Nikon fit due in Feb 2016
24th A new EF50 of some sort for next year? [CR] – no detail though
23rd Good Sigma 35mm teardown at [LR]
There is also an informative interview with the Sigma CEO from when he was in Taiwan [Mo]
Read on past the start, it is in English too
A very interesting business – deliberately kept as a private company
22nd Wait there’s more… Canon design for an EF 17-40mm F4 [EG-Goog xlt]
21st Not enough patents of late?
… Canon have a new EF-M 55mm f/3.5 macro [EG-Goog xlt]
19th Suggestions that an update for the 16-35 2.8LII is on its way with an upcoming camera announcement. [CR]
Just as likely for the 1DX update as the 5D3 – just look at a group of press photographers to see how popular the 16-35 II is (that and the 70-200 2.8L IS II)
18th A DO lens patent. How about an EF-M 600/5.6 DO IS ?
15th Interesting Sony FE 35mm f/1.4 ZA Lens teardown [LR]

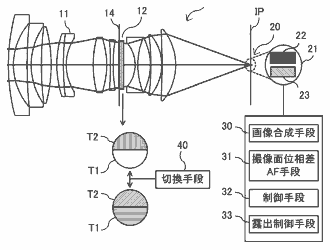

Not a filter I’ve used before. I’ve been having a look at using an ND2-400 variable ND filter – good for far more than turning waves and waterfalls to fog…
Good review of the new EF100-400 at [CR]
Sigma patent (right) for a full frame Art 11-22mm f / 4.5-5.6 DG HSM FLD
12th It looks as if there may be some focal reducer adapters on the way for using MF lenses with full frame cameras.
Initial offerings for mirrorless [Kn]
Should keep up the used prices for older medium format lenses if they work well.
10th It would seem that the new Canon 35/1.4L II is extremely well built and engineered.
See the teardown at [LR]
9th A Nikon-Cosina patent (img below) for a 19mm PC-E (tilt shift) lens appears – normal back focus, so for 35mm full frame sensor [EG-Goog xlt]
Quite a different design to the one from Nikon on the 2nd December (at the right) which was for mirrorless [EG-Goog xlt]

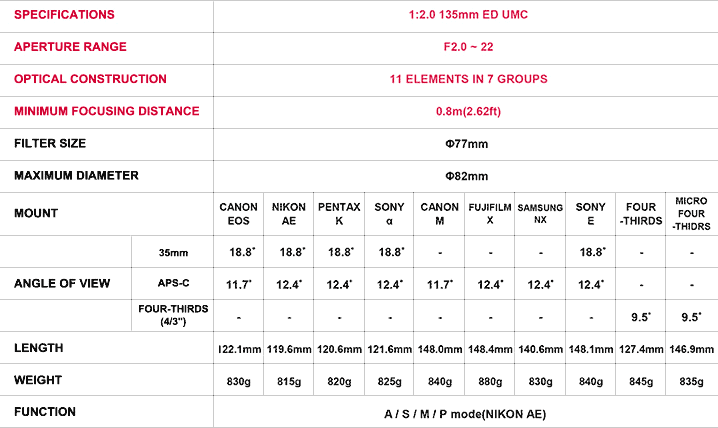

The 135/2 is long in the tooth, and long been on the list of primes to update.
A mention at [CR]

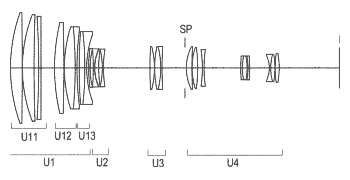

6th New Canon lens patent EF 200-600mm f / 4.5-5.6L USM [EG-Goog xlt]

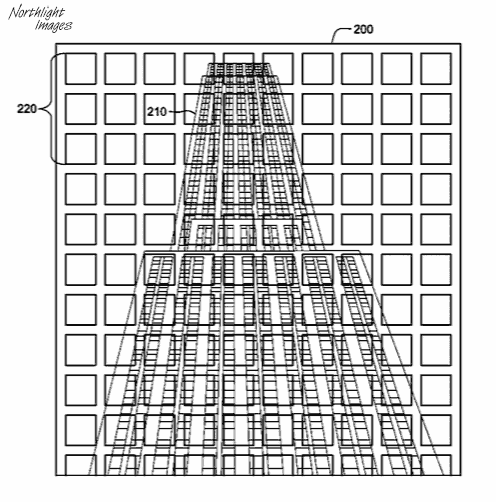

5th Setting lens tilt and shift a bit much for you?
Well, IBM have a patent to automate it [USPTO]
4th Now, a Canon full frame mirrorless lens patent. 50mm f3.5 IS Macro [EG-Goog xlt]
2nd At last – a new PC-E lens design from Nikon. [EG-Goog xlt]
A 19mm/f4 tilt/shift lens – however, the twist is that with a back focus distance of only 22mm, the design in the patent is for a full frame mirrorless camera. Nikon did patent a 28-80mm f/3.5-5.6 VR full frame mirrorless design last year [EG-Goog xlt]
Nikon hasn’t done anything in the shift lens category since Jan 2008 (PCE 24mm ). A full frame mirrorless with this lens would be interesting, but hardly compact.
Their existing full frame T/S lenses look pretty weak in comaprison with the improvements in mechanical design found in the Canon TS-E 17 and 24 mkII
I’d go so far as to say that the TS-E17 is the main reason that I’ve not seriously looked at a Nikon camera in all the years I was wondering where the 1Ds3 replacement was hiding … before I recently got the 5Ds
26th EF-S 55-250 patent [EG-Goog xlt]
23rd A new Canon 25-125mm F2.8 patent appears, but only for a cinema lens (Super35 which is similar to the old 1D APS-H size) [EG-Goog xlt]
Compare the size gradation of the first few elements with some of the designs below (such as the 24-300).
Note how keeping f/2.8 right to the long end of the focal range needs much bigger lens elements towards the front.
There are a few other factors that come in with cine lens design, few of which keep the price down…

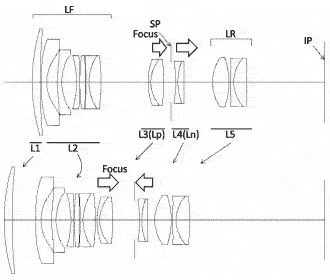

20th A new focal range for Canon with a 20-45mm F2.8-4 patent. [EG-Goog xlt]
Given that it’s not far off, this could be seen as a 17-40 replacement, although as I’ve said before, look at lens patents as the overall lens design, not just the example focal lengths.
19th Hints of a new 16-35mm to come with one of Canons higher end announcements next year [CR]
16th Updates for EF-S lenses? 10-22 3.5-4.5 (2004) and the 17-55 2.8 (2006) could do with a makeover, but I suspect they won’t be cheap [CR]
13th Canon EF24-300 f4-5.6 patent [EG-Goog xlt]
2nd Some interesting comparison images between the new and old 35/1.4 [DCF] Note the massive improvement off axis when wide open.
26th Time for a 16-35 2.8L mk3 lens? A good one to release with the 1D X mk2 next spring [CR]
18th Want a very fast 135mm? Mitakon are bringing out a new 135mm f/1.4 for multiple mounts [PR]
Manual focus though – good luck there at f/1.4 with most DSLR viewfinders ;-)
16th Sigma announce the 20/1.4 [info at B&H $899 preorder]
Shipping in November.
15th Zeiss add a 28mm f/1.4 lens to the Otus range
“The ZEISS Otus 1.4/28 ZF.2 and ZEISS Otus 1.4/28 ZE will be available worldwide starting in the second quarter of 2016. The lens shade is included with delivery. The retail sales price is unknown to date.”
Meanwhile, a far more useful (IMHO) Sigma 20mm f/1.4 DG Art is due this week
Lens construction: 15 elements / 11 groups
One large-diameter aspherical element
Two FLD elements and five SLD elements to best correct chromatic aberrations
In-lens HSM autofocus motor. New mechanism for full-time manual override in autofocus mode
Total length: 129.8mm
Maximum diameter: 90.7mm
9 diaphragm blades, rounded
Maximum magnification: 1:7.1 (0.14x)
It seems that at ~1kg for a 28mm lens, camera makers have finally decided that there is a market for huge glass. Keep one of these and a Canon 11-24 (~1.2kg) in your bag and a sturdy assistant becomes ever more useful. My standard lens bag for architectural work is already rather heavy already at ~4.3kg or just under 10 lbs
(8-15, 11-24, ts-e17, ts-e24, 24-70)
13th The EOS M10 is launched with an EF-M 15–45mm f/3.5–6.3 IS STM lens [EFLens]
Focal length 15–45 mm
Image stab. Yes (3.5 stops)
Lens mount Canon EF-M
Max aperture F3.5 – F6.3
Min aperture F22.0 – F40.0
Min focus 0.25 m (9.84″)
Weight 130 g (0.29 lb)
Length 45 mm (1.77″)

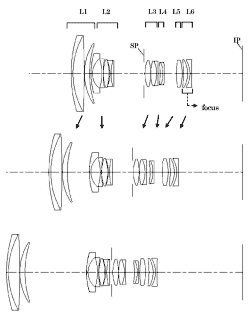

12th New EF 28-200mm F3.5-5.6 patent
5th New tilt/shift adapter patent (for mirrorless) from Canon
3rd The link below has had some additional designs added – emphasising the internal group.

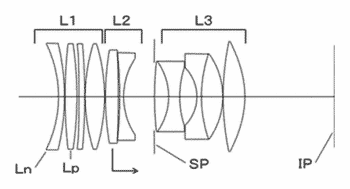

2nd A Canon patent for a 58mm/f1.4 lens [EG-Goog xlt]
A very different optical formula to the current 50/1.4
The front meniscus element is reminiscent of the internal focusing 50/1.4 patent from July (below). There are a whole load more Canon ~50/1.4 patents from July 2014
28th An updated 70-200L is suggested [CR] – more likely an update for the F4 version?
24th Useful Canon/Sigma comparisons at 35mm f/1.4 [LR]
“…the new [Canon] lens is significantly better than the original 35mm f/1.4, particularly in the edges and the corners. The difference is pretty significant and should be apparent in most photographs. That, of course, only tells you about the MTF.”
21st A new Canon patent [EG-Goog xlt] for an EF-S 9-20mm f / 4.5-5.6 IS STM
This would seem to be a slightly wider version of the EF-S10-18 [review], which I’ve got on my 100D
Samyang (Rokinnon) announce a couple of lenses for mirrorless, for Canon EF-M mount, Sony E-mount, Fujifilm X-mount, Micro Four Thirds mount.
50mm f/1.2 (B&H)
21mm f/1.4 lens (B&H)
50mm $549, 21mm $499, shipping October.
Not sure how convinced I am for using manual focus wide aperture lenses like this on mirrorless, perhaps I need to wait for a new EOS-M to see…
15th There are a few lenses that have been a staple of the lens rumour pages for a long while – well, the 100-400 and 35/1.4 are real… Now the 24-70 2.8L IS makes a return [CR]
Given my habit of using the 24-70 hand held on a 5Ds, I suppose this is a lens I’d look at – and just when I was getting used to the light weight of the 5Ds
13th Any 120MP camera is at least a couple of years away [CR] but we could well see some new lenses appearing sooner with it in mind.
We’re already starting to see more evidence of the huge improvements in optical design and manufacturing technologies that have taken place in the last few years.
Some great lenses have been designed (and prototyped) in the past, but never produced, for economic reasons.
With better quality (and more economical to produce) aspherical optics and the use of new glasses and coatings, it’s not surprising that many lens designs are getting a significant makeover, rather than ‘update’.
Looking at the timeline on EFLens.com, there are plenty to choose from:
Of course when an update is ‘new’ and when it is ‘MkII’ is as much a marketing decision as optical… ;-)
10th New Zeiss lenses announced for those fed up with autofocus…
The new ZEISS Milvus SLR lens family contains six focal lengths with ZE or ZF.2 mounts for DSLR cameras from Canon and Nikon1. The ZEISS Milvus lens family with precise manual focus offers high and consistent image performance across all focal lengths. The new lenses are the ZEISS answer to the current trend toward sensors with increasingly high resolution which, in turn, require higher and higher image quality. They are therefore ideal for current DSLR cameras and also for mirrorless system cameras of the Sony α7 series via an adapter solution and offer the customer excellent value for the money for professional applications. An equally important benefit: their high contrast rendition and low level of stray light ensure that the lenses meet the latest video standards such as HDR (High Dynamic Range) and resolutions of 6K and more. For the user, they open up the field of professional video and cine applications. The ZEISS Milvus lenses will be delivered to dealers in October 2015.
Diversity of focal lengths for wide spectrum of applications
With its diversity of focal lengths, the ZEISS Milvus lens family covers many of the photographer’s important fields of application where the benefits of manual focus lenses can be optimally utilized. “We want to provide users with the freedom to use the focus position as an artistic tool because it is one of the most important creative possibilities available to photographers,” Christophe Casenave, Product Manager for ZEISS Camera Lenses, emphasizes. The ZEISS Milvus lenses are therefore targeted at all owners of a high-resolution DSLR camera, offering them considerable added value. They are also suitable for photographers who have specialized in applications which the six focal lengths optimally support, e.g. portrait, landscape and macro photography.
The ZEISS Milvus lens family will initially consist of the following six focal lengths: ZEISS Milvus 2.8/21, ZEISS Milvus 2/35, ZEISS Milvus 1.4/50, ZEISS Milvus 1.4/85 as well as the two macro lenses ZEISS Milvus 2/50M and ZEISS Milvus 2/100M. Further focal lengths will be added to the ZEISS Milvus lens family over the next few years. “With this diversity of extremely high-quality SLR lenses, we are underscoring that, with our Milvus lenses, we can supply the right focal length for almost any application or personal preference,” Casenave says.
Modern product design
The ZEISS Milvus lenses continue the award-winning ZEISS product design already featured in the ZEISS Otus lenses. The advanced design ensures excellent image performance and outstanding ergonomic convenience. The easy-grip focus ring enables precise manual focusing for highly precise photography. The robust all-metal barrel of the ZEISS Milvus lenses guarantees many years of reliable use. They are protected against dust and spray water. The robust metal lens shade is an integral part of the overall product design and is a standard feature of all ZEISS Milvus lenses on delivery.
Fully compatible with DSLR cameras
The ZEISS Milvus lenses support all important operating modes of DSLR cameras (e.g. aperture priority, shutter priority and program modes, as well as manual time and exposure settings) The ZEISS Milvus lenses feature an interface that transmits the lens data to the camera (e.g. focal length, set aperture etc.). This information is saved to the photo’s EXIF data.
Features for demanding users
“The excellent image performance of the ZEISS Milvus lenses, also in difficult light conditions, is sharply focused on the requirements of current and future high-performance digital cameras,” says Casenave. The lenses offer a harmonious bokeh and excellent reflection reduction thanks to T*® anti-reflective coating from ZEISS. The further optimization of the lens coating reduces ghosting, flare and shading effects in critical light situations. All ZEISS Milvus lenses have a Floating Elements Design which compensates for aberrations at different distance settings. This is achieved by varying the axial distance between individual lens elements or groups. The adjustment of the distance between elements is coupled to the distance setting so that this always results in the right correction.

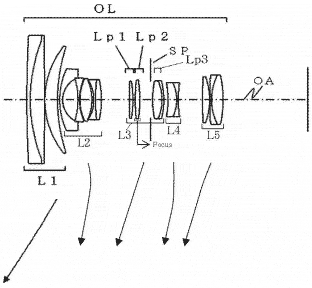

4th Canon patent for an EF-S 15-53 F2.8-4 [EG-Goog xlt]
Talk about a replacement for the 50/1.2 [CR]
3rd Tamron have an ‘SP site’ set up for their new primes, with sample images.
2nd Tamron announce two primes 35mm and 45mm f/1.8 with IS
Customary B&H link for more info ;-)
31st What’s next in the EF lineup?
The Mk3 version of the EF16-35 2.8L seems likely [CR] although several others are mentioned.
I’ve been hearing about new tilt/shift lenses and ‘something special’ for a while now – so long in fact, that I’ve almost been tempted to move them into the same category that the 100-400 replacement lived in for many years ;-)
28th Whilst only theoretical, the differences between the new and old 35mm f1.4L lens MTF charts are striking.
All information we find about this lens will appear on the EFLens.com site: EF35mm f1.4L II
If you’ve not seen the site, it has info on all EF mount lenses, and articles about things such as date codes and filter sizes.
27th EF35 F1.4L II announced
MELVILLE, N.Y, August 27, 2015 – Canon U.S.A., Inc., a leader in digital imaging solutions, today announced that its parent company, Canon Inc., has developed Blue Spectrum Refractive (BR), a new optical element for use in camera lenses that corrects chromatic aberrations at an extremely high level to achieve superb imaging performance.

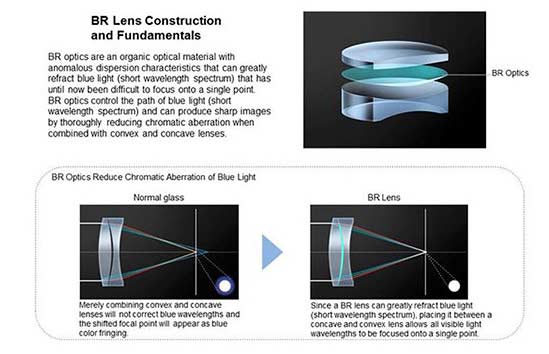

The new Canon-developed BR optical element offers characteristics that significantly refract blue light, which lies within the short-wavelength range, to achieve impressive levels of chromatic aberration correction for outstanding imaging performance. The BR optical element, positioned between two glass lens elements to create a BR lens, will make its debut in the new EF 35mm f/1.4L II USM wide-angle fixed-focal-length lens, which is scheduled to go on sale in October 2015.
Natural light, or white light, comprises a spectrum of wavelengths, or colors, each of which realizes a unique refractive index when passing through a lens. As all colors do not converge on the same point, this disparity causes chromatic aberrations, or color fringing, to occur in an image.
Canon develops optical elements by reviewing organic optical materials, beginning with the design of molecular structures, with the aim of achieving optimal chromatic aberration correction that suppresses color fringing. With the successful development of the BR optical element, which offers unique light-dispersion characteristics that significantly refract blue light—a wavelength that, until now, had proven particularly difficult to converge to a specific focal point—Canon is able to develop lenses that result in outstanding imaging performance by correcting chromatic aberrations at an exceptionally high level.
The BR element is probably the most significant new technical feature. Testing will show the differences…
US Price ~$1800
|Principal specifications EF35mm F1.4 L II|
|Lens type||Prime lens|
|Max Format size||35mm FF|
|Lens mount||Canon EF|
|Number of diaphragm blades||9|
|Special elements / coatings||BR (blue spectrum refractive optics), 2 aspherical, 1 Super UD elements + fluorine coating|
|Minimum focus||0.28 m (11.02″)|
|Motor type||Ring-type ultrasonic|
|Full time manual||Yes|
|Weight||760 g (1.68 lb|
|Diameter||80 mm (3.15″)|
|Length||106 mm (4.17″)|
|Filter thread||72.0 mm|
26th A bit more info about the 35/1.4 mk2
“The lens should start shipping in the middle of October 2015.
New manufacturing techniques used for the aspherical elements.
The BR Lens is ‘Blue Spectrum Refractive Optics’. Which will refract the light differently in the blue spectrum. Reduces chromatic aberrations.
New techniques used for weather and dust sealing, as well as increased resistance to impact.”
25th A new Canon patent for a tilt/shift adapter that works with any EF lens appears.
Looking at the patent, I believe that they have misunderstood how it would work, at PB.
Without any optical elements, you cannot put such an adapter between a normal EF lens and an EOS dslr body and still retain normal working.
This adapter, as described, could work with an EOS-M body.
It says as much in the opening paragraph of the patent.
It is also relevant to the design of future TS-E lenses where the motorised tilt/shift and other functions in the patent, could be incorporated into the lens mount.

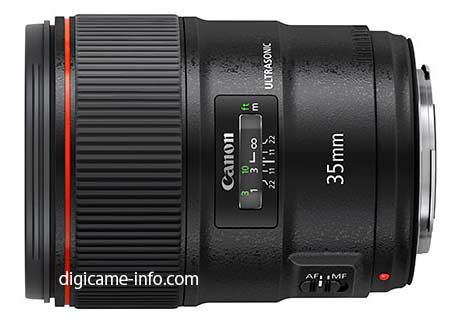

Details of the new EF35mm f1.4L II appear [DCI-Goog xlt]
Lens construction: 14 elements, 11 groups
2 aspherical lenses (1 ground aspherical and 1 large diameter glass molded aspherical)
One UD lens
One BR lens
9 blade diaphragm(circular aperture)
Minimum focusing distance of 0.28m.
Maximum magnification is 0.21x
Dust and water resistant
Filter diameter: 72mm
Total length: 105.5mm
Maximum diameter: 80.4mm
21st Canon patent for an EF 100-300mm F4-5.6 IS [EG-Goog xlt]
The previous EF100-300 f/4.5-5.6 USM dates from 1990 (info at EFLens) and is one of Canon’s longer lasting zooms, although I’d imagine that no new ones have been produced for a while.
Looks to be an essentially new lens for Canon users not wanting to dip deep into their pockets for an ‘L’ zoom.
However, in the Egami link, it’s also referred to as EF-S. There are no long EF-S lenses, but perhaps this is a bigger version of the 55-250? which has appeared in three versions so far.
20th Interesting tear-down of Zeis 85 and Xeen 85 cine lenses [LR]
It seems that cine lenses get a lot rougher treatment than photo lenses and are built for it

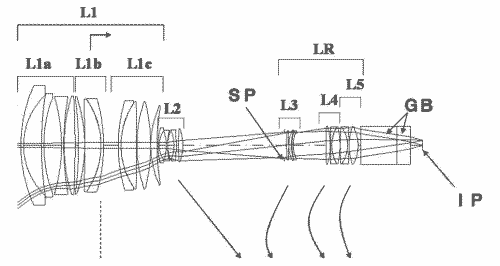

16th Canon patent for a 10-120mm f/1.8 lens for 1″ sensor [EG-Goog xlt]
The large distance behind the last element suggests that the block at the end might be a beam splitter for broadcast camera use (3 sensors).
13th Three more Xeen cine lenses next year? [DH-Goog xlt]
12th Another Canon cine lens patent for a CN-E20-100 and 20-120 [EG-Goog xlt]
11th In July there was an 600/4 DO patent – seems like ther might eventually be an 800/5.6 DO [CR]
10th Samyang/Rokinon launch a new line (XEEN) of Cine lenses in EF, PL, F, E and M4/3 mounts.
$2495 a pop. [NFS]
A Canon patent for a CN-E18-85 T2.8 [EG-Goog xlt]
7th Tamron announce an updated superzoom (18-200mm F3.5-6.3 Di II VC) for crop sensor cameras [DPR]
5th A Canon patent [EG-Goog xlt] for a 24-120mm f/3.5-5.6 IS STM lens
Could it be an update for the EF24-105 launched last year?
4th Sigma are said to be working on a 12-24mm lens [PR]

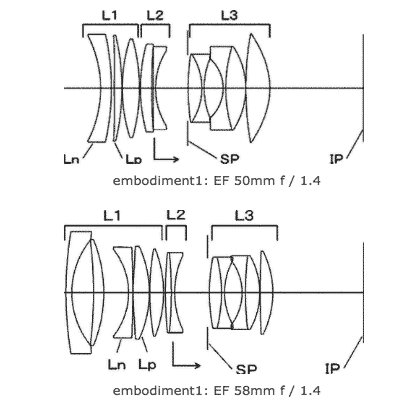

31st A Canon 50/1.4 patent features internal focusing [EG-Goog xlt]
Note the uncharacteristic negative front element (for a 50mm prime)
This might speed up AF performance.
Looking at my old EF50/1.4, there’s a lot of lens moving when it focuses.
28th Zeiss Otus 25mm (f/1.4?) for September? [CR]
After my recent 5Ds testing, not an expense I’ll be thinking of incurring.
26th Given the reception for Sigma’s ‘Art’ lenses, it’s no surprise that more will be on their way.
A suggestion that we may get another announced this year [CR]
21st Suggestions that a fast ‘L’ zoom is due after the 35mm – but no timescale [CR]
The 16-35 could well be due for a performance (price) boost who knows, maybe a 2.8 lens with IS
20th A new Canon patent for a 600mm f/4 Diffractive Optics (DO) lens [EG-Goog xlt]
19th A suggested $1699 price for the 35/1.4 mk2 [CR]
15th Two new lenses on the way from Canon, one long expected, one less so
EF 35mm f/1.4L II USM
EF-M 15-45mm f/3.5-6.3 IS STM
The information supposedly comes from a certification list in Russia [PR]
8th Canon celebrate a big pile of lenses:
“MELVILLE N.Y., July 8, 2015 – Canon U.S.A. Inc., a leader in digital imaging solutions, today announced that its parent company, Canon Inc., will celebrate the achievement of a new lens-manufacturing milestone with the production of the Company’s 110-millionth EF-series interchangeable lens for Canon EOS cameras on June 22, 2015 -an EF 11-24mm f/4L USM ultra-wide-angle interchangeable zoom lens…”
More at Canon US
3rd I’ve just updated the EF lens site with a page specifically covering the different versions of the 1.4x and 2x extenders.
As ever, if you’ve any good info you feel should be included, let me know.
A Canon patent has both EF and EF-S versions. [EG-Goog xlt]
A (good) long zoom from 15mm at f/2.8 would show Canon still has confidence in APS-C for more than 18-55 kit zooms.
f/2.8 makes for good marketing copy, but how far into the zoom range it extends make a big difference to how useful it is.
|Zoom Lenses||Wide angle||Standard primes||Telephoto|
|EF 8-15mm f/4L Fisheye USM
EF 11-24mm f/4L USM
EF 16-35mm f/4L IS USM
EF 24-70mm f/2.8L II USM
EF 24-70mm f/4L IS USM
EF 70-200mm f/2.8L IS II USM
EF 70-200mm f/4L USM
EF 70-300mm f/4-5.6L IS USM
EF 100-400mm f/4.5-5.6L IS II USM
EF 200-400mm f/4L IS USM EXTENDER 1.4x
|TS-E 17mm f/4L
TS-E 24mm f/3.5L II
EF 24mm f/1.4L II USM
EF 24mm f/2.8 IS USM
EF 28mm f/2.8 IS USM
EF 35mm f/2 IS USM
|EF 40mm f/2.8 STM
EF 50mm f/1.2L USM
EF 50mm f/1.4 USM
EF 50mm f/1.8 II
EF 50mm f/2.5 Compact Macro
|EF 85mm f/1.2L II USM
EF 85mm f/1.8 USM
TS-E 90mm f/2.8
EF 100mm f/2 USM
EF 100mm f/2.8 Macro USM
EF 100mm f/2.8L Macro IS USM
EF 135mm f/2.0L USM
EF 200mm f/2L II USM
EF 200mm f/2.8L II USM
EF 300mm f/2.8L IS II USM
EF 400mm f/2.8L IS II USM
EF 400mm f/4 DO IS II USM
EF 500mm f/4L IS II USM
EF 600mm f/4L IS II USM
EF 800mm f/5.6L IS USM
The list does raise a few questions – the missing TS-E45 reflects its age and that whilst quite good, it doesn’t match the quality of the 17/24/90
The 50mm compact macro (from 1987) is still holding on.
I can only assume that some time in the past, someone at Canon wrote the wrong number on a production order, and they still have a warehouse full of them to shift ;-)
Whilst looking at Macro – where’s the MP-E65? I’ll have some tests of this on the 5Ds before long.
The 50/1.4 … well, I’ve tried it, it works just fine at f/5.6, and at f/1.4? Well, pretty much as I’d expect (see examples on my 5Ds page).
26th An interesting lens adapter patent for a Canon (full frame) mirrorless camera that uses both EF-S and EF lenses.
A key feature is changing some of the internal structures to allow for different image circles and other lens differences.
I’ve coloured the diagram from the patent, to show the adapter (black) as opposed to the camera (red) and lens (blue)
The design looks almost like a rotating filter wheel with apertures (A and B) which allow for different lens image circles.
Just for good measure, there is a tiny motor and gear shown (107,107a) to rotate the aperture wheel.
This seems a wonderfully clunky design for what could be accomplished with a few simple adapters, leading me to wonder what other key features might be hidden in the patent.
Strong hints that the EF35/1.4L II is close to announcement [CR]
Longer than the current version
Smaller diameter than the current version
Smaller filter thread
It’s certainly been a staple of the ‘coming soon’ rumours here for several years now ;-)
Some Nikon related lens patents including a phone adapter type device [NR]
23rd Venus have today in China annouced the Laowa 15mm f/4 Wide-Angled 1:1 Macro Lens.
But wait, there’s more, it’s also a shift lens… (+-6mm)
“The lens has 12 elements in 9 groups with 3 pieces of High Refractive elements and 1 Extra-low dispersion element.
Barrel Distortion was also carefully controlled.
14 pieces of aperture blades form a close-to-circular aperture, capable of creating creamy shallow depth of view.
The enclosure of the lens is made of metal to strengthen its durability. Canon EF, Nikon F, Sony Alpha, Sony FE and Pentax K mounts are available.
Sample photos and videos can be found in our English website (http://www.venuslens.net)
Pricing and Availability
The Laowa 15mm f/4 wide-angle macro lens is currently available at authorized resellers and at the English official website (http://www.venuslens.net).
The recommended retail price is at USD 479.
Free shipping will be provided during the promotion period.
Pre-order starts from today and shipping will start from late July.”
A very interesting lens…
22nd A patent [EG-Goog xlt] for an EF-S 20/2.8 lens (~32mm equiv. on full frame)
A range of primes for EF-S might signify Canon’s interest in it being a system of choice.
It was 1992 when Canon launched the EF20/2.8 and I’d thought we might see an EF version before an EF-S (and what about EF-M?)
20th Sigma announce an interesting 24-35mm f/2 zoom [DPR]
Entry corrected – I wrote 20-35 not 24 – probably thinking too much about what I’d like to have seen ;-)
18th A 24-70 2.8 IS gets a brief mention [CR]
This is one of those lenses that’s been ‘expected’ every time a new 24-70 gets mentioned – we’ve had several variants turn up so far, but f/2.8 and IS won’t be cheap at good quality.
15th A new patent from Canon is for a full frame rectilinear 10mm f/2.8 lens.
There are some interesting aspheric elements in the design, as well as that vast front element.
The difference between 14mm and 11mm is quite pronounced, as I noticed during testing my 11-24 (review).
It’s so much wider than 14mm I can only see it as a new lens to expand Canon’s range of EF lenses, and another in the ‘because we can’ range.
Price? …yes, a lot.
11th A Nikon CX lens patent includes diffractive optics (aka PF) [NR]
8th As someone who can’t resist taking old broken kit apart, it’s great to see a lens go back together again – see the Tamron 15-30 f/2.8 Di VC Partial Teardown [LR]
6th The long rumoured 35/1.4L II gets a mention again [CR]
This lens has been coming ‘soon’ ever since the 24/1.4L II appeared in 2008, so I guess the rumours will be right one day ;-)
3rd A patent from Canon introduces an optional half ND filter to a lens design, to improve the effectiveness of split pixel AF [EG-Goog xlt]
By introducing a neutral density filter for only half the field, you get differing amounts of light to AF pixels that are split on the same axis as the filter.
This would increase the differential output of the sub-pixel pair as you pass through sharp focus.
A bit like the old split-image focus screens.
Of course, the mechanics of adding the split ND filter to the lens is left as an exercise for the reader…
Also PIXMA PRO-1, PIXMA PRO-10 and PRO-100 printers (rebates increment if you buy a qualifying DSLR and paper).
Model | Rebate Amount
Canon EOS 1D X | $700.00
Canon EOS 5D Mark III | $300.00
Canon EOS 6D | $300.00 – $550.00
Canon EOS 7D Mark II | $100.00 – $350.00
Canon EOS 7D | $250.00
Canon EOS 70D | $250.00 – $550.00
Canon EOS 60D | $250.00
Canon EOS Rebel T6s / 760D | $50.00 – $200.00
Canon EOS Rebel T6i / 750D | $50.00 – $200.00
Canon EOS Rebel T5i / 700D | $150.00 – $300.00
Canon EOS Rebel T5 / 1200D | $150.00 – $300.00
Canon EOS Rebel SL1 / 100D | $150.00 – $350.00
Canon EF-S 10-18mm f/4.5-5.6 IS STM Lens | $50.00
Canon EF-S 10-22mm f/3.5-4.5 USM Lens | $50.00
Canon EF 16-35mm f/2.8L II USM Lens | $100.00
Canon EF 16-35mm f/4L IS USM Lens | $100.00
Canon EF 17-40mm f/4L USM Lens | $100.00
Canon EF-S 17-55mm f/2.8 IS USM Lens | $50.00
Canon EF 24-70mm f/2.8L II USM Lens | $100.00
Canon EF 24-70mm f/4L IS USM Lens | $200.00
Canon EF 70-200mm f/2.8L IS II USM Lens | $100.00
Canon EF 70-200mm f/4L IS USM Lens | $100.00
Canon EF 20mm f/2.8 USM Lens | $50.00
Canon EF 24mm f/2.8 IS USM Lens | $50.00
Canon EF 28mm f/1.8 USM Lens | $60.00
Canon EF 28mm f/2.8 IS USM Lens | $50.00
Canon EF 35mm f/1.4L USM Lens | $150.00
Canon EF 35mm f/2 IS USM Lens | $50.00
Canon EF 40mm f/2.8 STM Lens | $50.00
Canon EF 50mm f/1.2L USM Lens | $50.00
Canon EF 50mm f/1.4 USM Lens | $70.00
Canon EF-S 60mm f/2.8 Macro USM Lens | $50.00
Canon EF 85mm f/1.2L II USM Lens | $50.00
Canon EF 85mm f/1.8 USM Lens | $70.00
Canon EF 100mm f/2 USM Lens | $50.00
Canon EF 100mm f/2.8L IS USM Macro Lens | $50.00
Canon EF 100mm f/2.8 USM Macro Lens | $50.00
Canon EF 135mm f/2L USM Lens | $50.00
29th An interesting patent for putting dual IS into a zoom tilt shift lens from Canon [EG-Goog xlt]
Several time we’ve heard that there would be an unusual T/S lens, very much in the ‘because we can’ category.
Perhaps unusually, I do use the TS-E17mm hand held quite a bit, but I’ve never thought “if only this had IS…”
One thing to remember about patents though, especially one like this with no detailed lens design, is that they can include several different features to give the patent broader applicability.
26th A new slowish Canon 400mm lens? [CR] not a replacement for the 400/5.6
22nd Well, if you had one in stock, you’d want to try it out…
B&H have written up a review of using the EF1200 lens
A new patent for an EF16-35 2.8 lens appears [EG-Goog xlt]
18th An f/2.8 wide zoom gets a mention – something to update the 16-35 2.8L II? [CR]
13th The EF 70-300 f/4-5.6 IS could be due for an update in the near future [CR]
11th A Canon patent for a 12-35mm F2-3.5 IS lens for a 4/3″ sensor – no indication what camera it’s for though.
The EF 50/1.8 STM is launched.
“London, UK, 11 May 2015 – Canon today unveils the EF 50mm f/1.8 STM, a new prime lens that enables you to capture images with subjects that pop from the scene, or create impact with beautiful background blur. The successor to the incredibly popular EF 50mm f/1.8 II, and an ideal second lens for anyone looking to take their photography to the next level, the EF 50mm F/1.8 STM excels at portraiture, low-light photography, and adding an artistic edge to everyday objects and settings, thanks to its wide f/1.8 maximum aperture and 50mm focal length.
The EF 50mm f/1.8 STM now features an improved design, Canon’s super spectra lens coating, a 7-blade aperture and STM technology for smooth, near silent focusing. Compact, lightweight and affordable, the EF 50mm f/1.8 STM is a welcome addition to any kit bag for people who want to create more impactful imagery.
Explore creative portraiture and low-light photography
It’s easy to capture superb portraits, or bold, artistic photos and movies with the new lens – the wide f/1.8 maximum aperture provides precise control over depth of field. It gives you the creative freedom to pinpoint focus on your subject and let the rest of the frame blend into a smooth blur – instantly allowing you to draw the viewer’s attention to a specific area. Additionally, the aperture lets more light into the lens, so you can comfortably shoot in darker conditions.
As a prime lens, the fixed 50mm focal length provides high quality results, with enhanced visible sharpness and contrast. When paired with an APS-C EOS DSLR, the lens is ideal for portraiture, helping you capture the perfect head and shoulder composition. It’s also a useful every day ‘standard’ lens for full frame DSLRs and is great at shooting a diverse range of subjects with a natural viewpoint and perspective.
The lens also provides a minimum focusing distance of just 0.35m, allowing you to get even closer to subjects and achieve a greater level of magnification, while the 7-blade aperture delivers beautiful blur and out of focus highlights. Providing enhanced image quality when compared to its predecessor, the lens features Canon’s Super Spectra Coating, which minimises internal reflections, as well as ghosting and flare.
The lens has a compact and lightweight design, weighing a mere 160g, and easily slips into your bag adding very little to the overall weight of your kit. The lens’s new external design compliments both Canon’s consumer and mid-range EOS DSLRs, while the new metal mount provides a more robust connection to camera bodies. Additionally, the lens’s manual focusing ring gives you added freedom to control the precise area in focus in your photos and movies.”
Preorder at B&H
8th New Canon EF-S 15-85mm f/3.5-5.6 patent [EG-Goog xlt]
6th Time for a new lens – pictures of the new 50/1.8 STM start appearing [DCI-Goog xlt]
6 elements in 5 groups
‘Digital optimized’ coating
Full-time manual focus
3rd Canon USA has a stack of rebates until the end of May:
|$100 on EF 16-35mm f/2.8L II USM: B&H | Adorama
$100 on EF 16-35mm f/4L IS USM: B&H | Adorama
$100 on EF 17-40mm f/4L USM: B&H | Adorama
$100 on EF 24-70mm f/2.8L II USM: B&H | Adorama
$200 on EF 24-70mm f/4L IS USM: B&H | Adorama
$100 on EF 70-200mm f/2.8L IS USM II: B&H | Adorama
|$100 on EF 70-200mm f/4L IS USM: B&H | Adorama
$150 on EF 35mm f/1.4L USM: B&H | Adorama
$50 on EF 50mm f/1.2L USM: B&H | Adorama
$50 on EF 85mm f/1.2L II USM: B&H | Adorama
$50 on EF 135mm f/2.0L USM: B&H | Adorama
$50 on EF 100mm f/2.8L Macro IS USM: B&H | Adorama
2nd If you’re feeling well off and wanted to buy the EF1200 from B&H ($180k) to fill out your lens collection please do use our link to buy it. It would be most appreciated ;-)
1st A new Canon 35mm f/1.4 lens patent appears – is it finally on its way? [EG-Goog xlt]
Here’s simpler version from last October [EG-Goog xlt] The new version moves from 3 elements in the front group to 6.
29th We’ve seen update suggestions for the TS-E45 and 90 for quite some time, along with suggestions that ‘something different’ is due in this area… A T/S macro is mentioned at CR.
An interesting idea, but it’s going to take some nifty optical design to get a lot of tilt with the constraints of the EF mount and mirror box.
15th If you’re looking at the 11-24 in the US, B&H have stock (above) – I’m still getting the hang of what really benefits from the really wide end… just waiting for my 5Ds to go with it.
5th There appears to be a fake 50/1.8 IS STM image doing the rounds [CR] – no more real than the 42mm above ;-)
3rd A replacement 50/1.2L is mentioned [CR] but the 50/1.8 STM is likely far sooner
2nd The Samyang 100mm is real [SY]
Macro Telephoto Manual Focus Lens
High refractive (HR) and extra low dispersion lens (ED)
Ultra Multi Coating (UMC) technology of Samyang Optics
Circular aperture with 9 blades
Available for 10 camera mounts: Canon EOS, Nikon AE, Pentax K, Sony ∝, Canon M, Fujifilm X, Samsung NX, Sony E, FT, MFT.
31st We’re told [thanks] that both of Canon’s ‘old’ shift lenses (45mm and 90mm) have been pushed up the refresh list to go with the 5Ds/R, but that glass supplies (more exotic types) are limiting the introduction of a whole load of new top end lenses. Canon has new manufacturing capacity, but optical glass making still takes a lot of time and is not just something you can just quickly ramp up.
I still don’t think we’ll see these lenses updated this year, there are far bigger selling options that could do with modernising.
A Sigma patent for a 24-105 f2.8-4 [EG – Google xlt]
30th The 16-35 2.8L II is on the update list [CR]
29th A Samyang hint of the 100/2.8 [PR]
I’ve just written a review of the Piccure+ plugin and have to say that it works a treat. The sharpening it offers is not profile based so works very well with images from my TS-E17 just as well as the EF11-24.
At several minutes per image it isn’t fast but is capable of a style of detail extraction that I’ve not seen before. It’s changed aspects of my large print workflow from RAW processing through to print sharpening.
24th a 100/2.8 Macro is suggested [CR] from Samyang – sounds a bit pricey (~$800)
19th A wide T3.5 zoom for the cine range is suggested [CR]
I note that it’s currently around £950 – I suspect an IS version to help bump up that price a bit.
12th There is an excellent 11-24 review at TDP
I’d personally disagree with Bryan’s getting rid of the EF8-15 since I feel that the 11-24 and 8-15 complement each other.
11th A 50/1.2 L mk2 gets a mention [CR] but don’t expect it too soon.
More EF-M lenses are mentioned in a Canon interview [DPR]
More testing of the 11-24
9th I’ve not tried any of the ‘superzoom’ compacts, but Canon look to take it just that bit further with a patent for an optical system that gives an equivalent of 24-2400mm [EG – Google xlt]
And yes, I did wonder what an EF24-2400 IS might look like – maybe with a built in 1.4x extender… ;-)
7th I’ve just finished my initial Review of the Canon EF 11-24 F4 L USM
It’s very much aimed at looking what you can do with the lens, rather than a precise optical analysis.
I’ll be updating it over time, especially when my 5Ds turns up.
The 11-24 news page will be kept updated with news of reviews and any other relevant info.
5th A Canon patent for a 12-35/15-50 cine lens [EG – Google xlt]
4th New lens rumours have gone a bit flat lately, after the 100-400 (rumoured for years) finally appeared. The 35/1.4 is probably next on the ‘long expected’ list (‘expected’ just after the new 24/1.4 II appeared in 2008).
The next ‘L’ won’t be along for a while and is said to be a prime [CR]
Although not one I’d necessarily look to get, to add to the group below, the TS-E45 looks increasingly out of date (1991 launch), particularly once the 5Ds arrives. It’s a lens, that with today’s lens technology, could be astonishinly good.
3rd A few more 11-24 updates.
1st The 11-24 is a sharp lens – I’m updating the EF11-24 page with samples and info as I get them. Please make use of the comments section on the page if you’ve any specific things you like info on. I hope to have a full review once I’ve used the lens a bit more widely.
27th I’m told that our EF 11-24mm F4L should be here tomorrow…
A Canon patent for an EF-M 9-18mm F3.5-4.5 [EG – Google xlt]
24th An interesting comparison of the old and new Canon 100-400 lenses by Kevin Ebi, a pro nature photographer.
22nd More Canon patents – this time an adapter for EF to EF-M that incorporates IS and improves AF performance
It’s been pointed out that the recent patent for variable refractive index elements is a development of one from May 2011 [EG – Google xlt]
Maybe this is a technology we’ll see sooner rather than later?
21st It seems that many missed the key point of the recent patent (17th), which was the use of variable refractive index elements, not the 300/50/24mm example designs.
Such lens elements have different refractive index in different areas of the lens and can help correct some basic aberrations.
…it’s not entirely new, you are using such lenses to read this ;-) The lenses in your eyes
20th Research about flat optical elements [PP]
17th A Canon patent for a 300/4 (and 24/2.8 and 50/1.3 amongst other examples) makes use of elements with variable refractive index [EG – Google xlt]
A suggestion that the initial lengthy delays for shipping the 11-24 in the UK were a trifle pessimistic and we may yet see them this month in the UK.
16th A Canon patent for an optional IS unit with no effect on focal length, to go inside a lens [EG – Google xlt]
The 11-24 is shipping in some parts of the Far East [ETP – Google xlt]
15th A good review of the 100-400 [DA]
13th The new 100-400 is very solidly built – see a stripdown [LR]
10th Sigma introduce a 24/1.4 into their ‘Art’ lens range
“YOKOHAMA, Japan — February 10, 2015 – Sigma Corporation of America, a leading researcher, developer, manufacturer and service provider of some of the world’s most impressive lines of lenses, cameras and flashes, today announced the new Sigma 24mm F1.4 DG HSM Art lens, the ninth Global Vision lens to join the company’s iconic Art line-up. The announcement comes at the start of the CP+ Camera and Photo Imaging Show 2015, which begins on Feb. 12 in Yokohama, Japan.
The much anticipated 24mm F1.4 Art wide angle lens is designed for full-frame DSLRs, and when used on digital cameras with an APS-C size image sensor, it effectively becomes a 38mm. The lens is ideal for capturing a variety of photography subjects, including cityscapes, mountain ranges, astrophotography and weddings and is great for videography work as well. The 24mm also excels at indoor photography in low illumination thanks to the combination of exceptional focal plane sharpness, and gorgeous bokeh rendered by nine rounded aperture blades. The lens achieves a maximum magnification of 1:5.3 with a minimum focusing distance of 9.8 inches. The 24mm incorporates both “F” Low Dispersion (FLD) glass and Special Low Dispersion (SLD) glass in a design of 15 elements in 11 groups to minimize chromatic aberration of magnification especially in the edge of the image field. Moreover, the optimized power layout includes aspherical elements that are positioned in the rear of the lens for improved wide open performance. This helps to ensure minimal distortion through the correction of axial chromatic aberration and sagittal coma flare. The new lens element design also delivers excellent peripheral brightness.”
Price to follow ;-) [DPR]
9th A ‘because we can’ unusual Canon macro lens is mentioned at CR no details though…
We’ve been told that updates to the remaining TS-E45 and TS-E90 were coming along ‘soon’ for rather a long time now, but a tiltable macro lens would certainly be different. A longer focal length would be interesting, but combining tilt and telephoto design is tricky.
An object-space telecentric version of the MP-E65 would also be interesting to use for stacking…
8th Additional sample images link added on the 11-24mm page.
6th The 11-24 is announced. Since I’ll be getting one, it’s got it’s own page Canon EF 11-24mm f/4L USM
4th Prices are leaked [PR]
Canon EOS 5Ds: €3,499 (around $4,000)
Canon EOS 5Ds R (no low-pass filter): €3,699 (around $4,200)
Canon EF 11-24mm f/4L USM: €2,999 (around $3,400)
1st More details of the 11-24 [DCI – Google xlt]
– Lens arrangement 16 sheets group 11
– 4 aspherical lens (large diameter grinding aspheric single, large-diameter glass molded aspherical one, two glass mold aspherical)
– One Super UD lens, one UD lens
– SWC coating (two-sided)
– ASC coating (one side)
– The fluorine-coded into the rear lens and the front lens
– Diaphragm blades nine. The aperture circular
– Minimum aperture is F22
– In the shortest shooting distance is 24mm 0.28m, 0.32m in 11mm
– 0.16 times at the maximum photographic magnification is 24mm, 0.06 times in 11mm
– AF motor ring USM
– Full-time manual focus
– Dust and water
– Rear gelatin filter holder
– Total length 132mm, maximum diameter 108mm
– Weight 1180g
…well, I think I’ll have one please ;-)
30th More details of the 11-24 surface [DCI – Google xlt] Specs include:
1x large diameter ground aspheric lens
1x large-diameter glass molded aspherical lens
2x glass molded aspherical lenses
1x super UD lens
1x lens UD
Here’s an animation of its size compared to the EF8-15 and EF14 2.8L II
27th It seems that the 11-24 will indeed be announced later next week (see main rumour page)
22nd A new wide zoom (with IS) is announced by Tamron. The SP 15-30mm F/2.8 Di VC USD should be available by the end of the month [CR]
15th The previously leaked (Oct 2014) EF11-24 f/4L looks to be real and on its way soon.
When it does appear, I’ll certainly be getting one ASAP, and will have a detailed review.
A lens like this is ideal for some aspects of my architectural photography, where currently I stitch up/down shifted views using the TS-E17.
That gives higher resolution, but I don’t always need it.
I noted too that Park cameras, the company I buy my own camera kit from, here in the UK, have just launched a big update to their web site.
The mystery camera that appeared in the CS100 promo shots is also very likely to be the latest xxxD (Rebel) APS-C DSLR. [CR]
With a fairly distinctive change to the controls layout, the new camera (750D) may also see a lens launched with it.
The recently rumoured EF-S 18-300 STM would be a good choice.
See the Canon video below for a bit more about STM drive in lenses.
14th A new promo video for EF lenses from Canon
The 18-200 dates from Aug 2008 (EFL) and would really benefit from the improved build quality of Canon’s recent STM lenses, as well as the better focus drive. If it really is 300mm at the long end, then it will be an impressive bit of optical design to perform over such a zoom range.
12th Samyang [Sy] launch the (widely leaked) 135/2 manual focus telephoto lens in a range of mounts, along with a cine version.
Good luck trying manual focus on most DSLR standard focus screens ;-)
See my quick test of an old Zeiss manual focus 135mm on my 100D
11th A patent for a 35-260mm f/2.8 Soft Focus (Super 35mm Size) lens with a soft focus adjustment appears [EG – Google xlt]
Expect an expensive lens, should it appear. I note that there hasn’t been a soft focus lens in the EF lens range since the 135/2.8 soft focus lens, from 1987, which is a rather good cheap 135, even if you never find a use for the soft focus ;-)
9th Karen has finally finished all the Canon EF lens pages for EFLens.com
If you have reviews of older Canon lenses that you’d like her to look at mentioning, please visit the site and let her know.
Now that all the lenses are listed, we’re aiming to add plenty of new info, as we come across it.
6th Nothing much from Canon at CES, but Nikon do have a new lens with an interesting 300/4 ‘Phase Fresnel’ design.
As you might guess, it’s not dissimilar to Canon’s diffractive optics [NR]
4th More ‘budget’ lenses on the way from the Chinese company Yongnuo [PR] This time, an EF 35/2
Whilst according to one recent review, they are not exact copies of Canon’s older primes, they are certainly ‘inspired’ by Canon’s designs ;-)
31st A good review of the new 100-400 mk2 at TDP
Nikon patents putting a shutter into a lens adapter tube [EG – Google xlt]
15th Canon keeps the patents coming with a 30-135 f3.5 design (and other variations)[EG – Google xlt]
10th A Canon patent for an EF-M 70-400 f4.5-7.2 [EG – Google xlt]
Suggests that EOS-M is not dead yet… ;-)
8th New SP.2 prime lenses form Tamron? All the talk of high MP sensors has upped the mentions of prime lenses that are ‘sharp enough’ [sr]
With higher MP sensors, expect plenty of clueless debate about lenses ‘not being up to the job’ ;-)
It’s taking a good few years of sensor development yet, before todays crop of good lenses have any real problems, and we won’t even go near the already high pixel densities of crop sensors, or the fact that to get the real benefits of 50-100MP full frame sensors, a lot of us would need to change aspects of our photo taking technique (I still dislike tripods for landscape photography other than at night).
5th A Canon lens patent appears for an EF-S 9-22mm F4.5-5.6 [EG – Google xlt] It looks to be similar in design to the 10-18.
It’s worth noting that there is often quite a delay between patent filings and lenses appearing (if they ever do) and also that the real idea being patented may be just one particular aspect of a design.
If the EF-S 10-22 is to be replaced, then it might well get a bit wider to distinguish it more from the surprisingly good EF-S 10-18
